Engine Compartment Fuses/
Distribution Unit
The engine compartment fuse panel is located
on the left side of the engine compartment.
Removing Fuse Cover and Locking Screw
Proceed as follows:
1. Slowly turn the screw counterclockwise.
2. Slowly release the screw.
3. Remove the fuse cover by sliding it upward.
Mounting Fuse Cover and Locking Screw
Proceed as follows:
1. Properly secure the fuse cover to the box,
slide completely from top to bottom.
2. Fully depress the screw, using the special
screwdriver supplied.
3. Slowly turn the screw clockwise.
4. Release the screw.
Cavity Maxi Fuse Cartridge Fuse Mini Fuse Description
F01 70 Amp Tan – – Module Body Computer
F02 70 Amp Tan – – Module Body Computer, Rear
Distribution Units
F03 – 30 Amp Pink with HID Lamps
20 Amp Blue without HID Lamps
– Supply Body Computer
F04 – 40 Amp Tan – Brake Control Electronics Module
F05 – 40 Amp Tan – PTC Heater
F06 40 Amp Orange – – Starter Relay

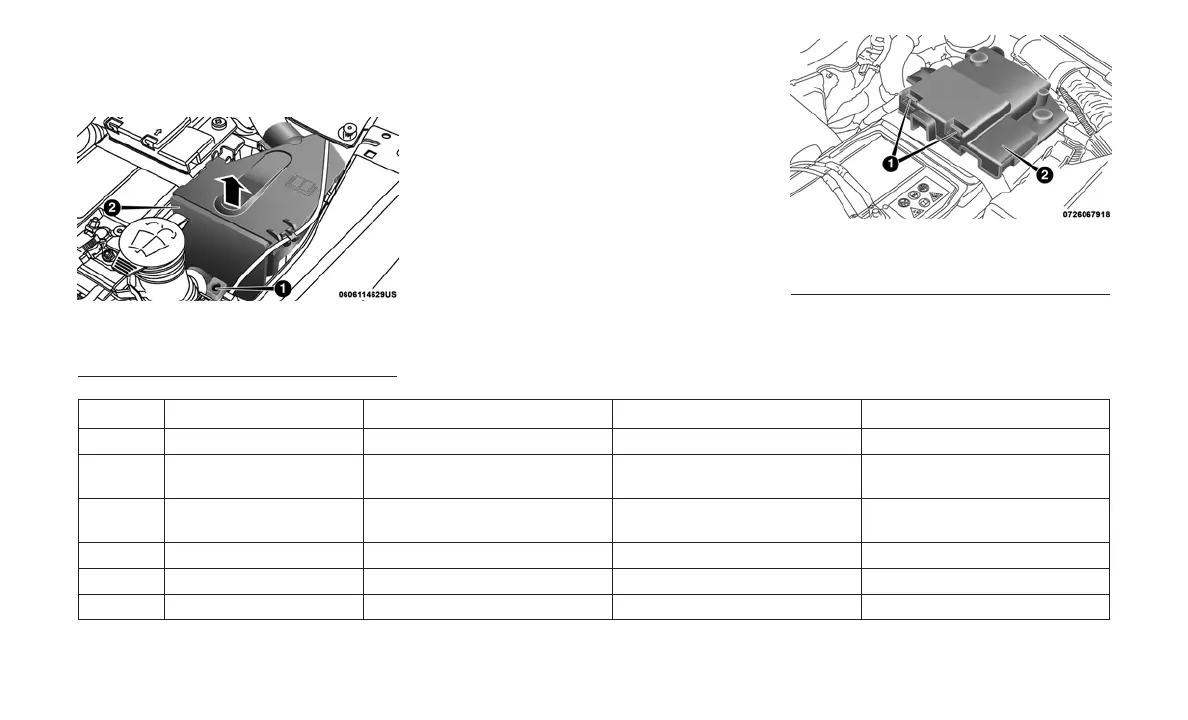

Fuse Panel & Cover Location
1 — Cover Screw
2 — Fuse Cover
Battery Fuse Cover Location
1 — Fuse Cover Tabs
2 — Fuse Cover
