3. Press the DOWN button until “Calibrate Compass”
displays in the EVIC.
4. Press and release the SELECT button to start the
calibration. The “CAL” indicator will display in the
EVIC.
5. Complete one or more 360–degree turns (in an area
free from large metal or metallic objects) until the “CAL”
indicator turns off. The compass will now function
normally.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences and provide the most accurate compass head-
ing.
NOTE: Magnetic materials should be kept away from
the top of the right rear quarter window. This is where
the compass sensor is located.
1. Turn the ignition switch ON.
2. Press and hold the COMPASS button for approxi-
mately two seconds.

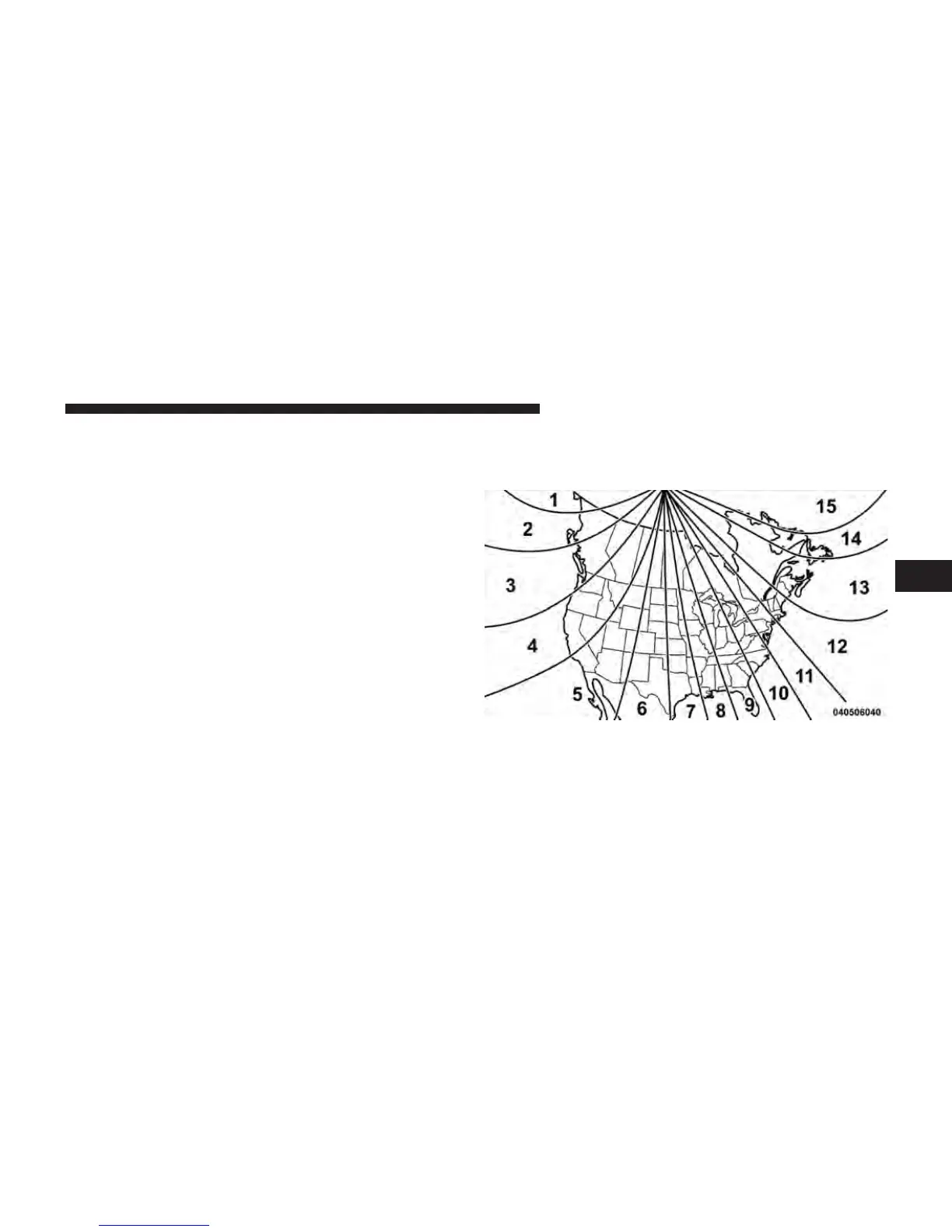

Compass Variance Map
4
UNDERSTANDING YOUR INSTRUMENT PANEL 223
To Next Page
