Mounting Fuse Cover and Locking Screw
Proceed as follows:
1. Properly secure the fuse cover to the box, slide com-
pletely from top to bottom.
2. Fully depress the screw, using the special screwdriver
supplied.
3. Slowly turn the screw clockwise.
4. Release the screw.
Cavity Maxi Fuse Cartridge Fuse Mini Fuse Description
F01 70 Amp Tan – – Module Body Computer
F02 70 Amp Tan – – Module Body Com-
puter, Rear Distribution
Units

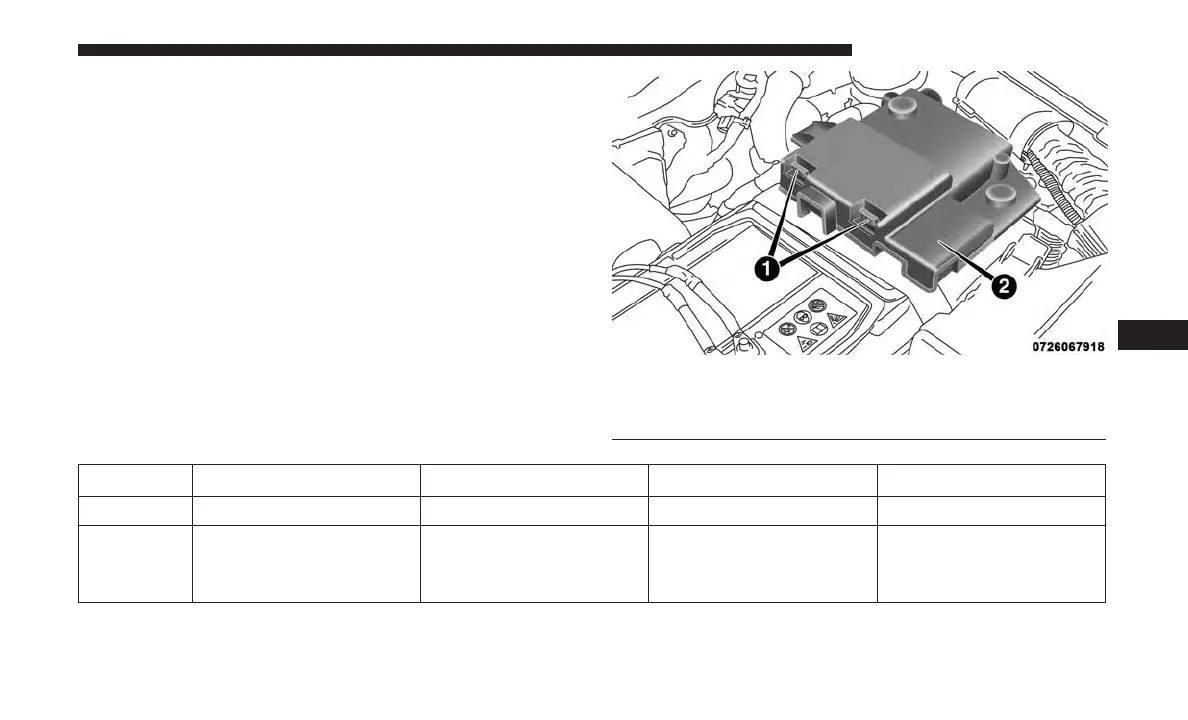

Battery Fuse Cover Location
1 — Fuse Cover Tabs
2 — Fuse Cover
7
IN CASE OF EMERGENCY 319
