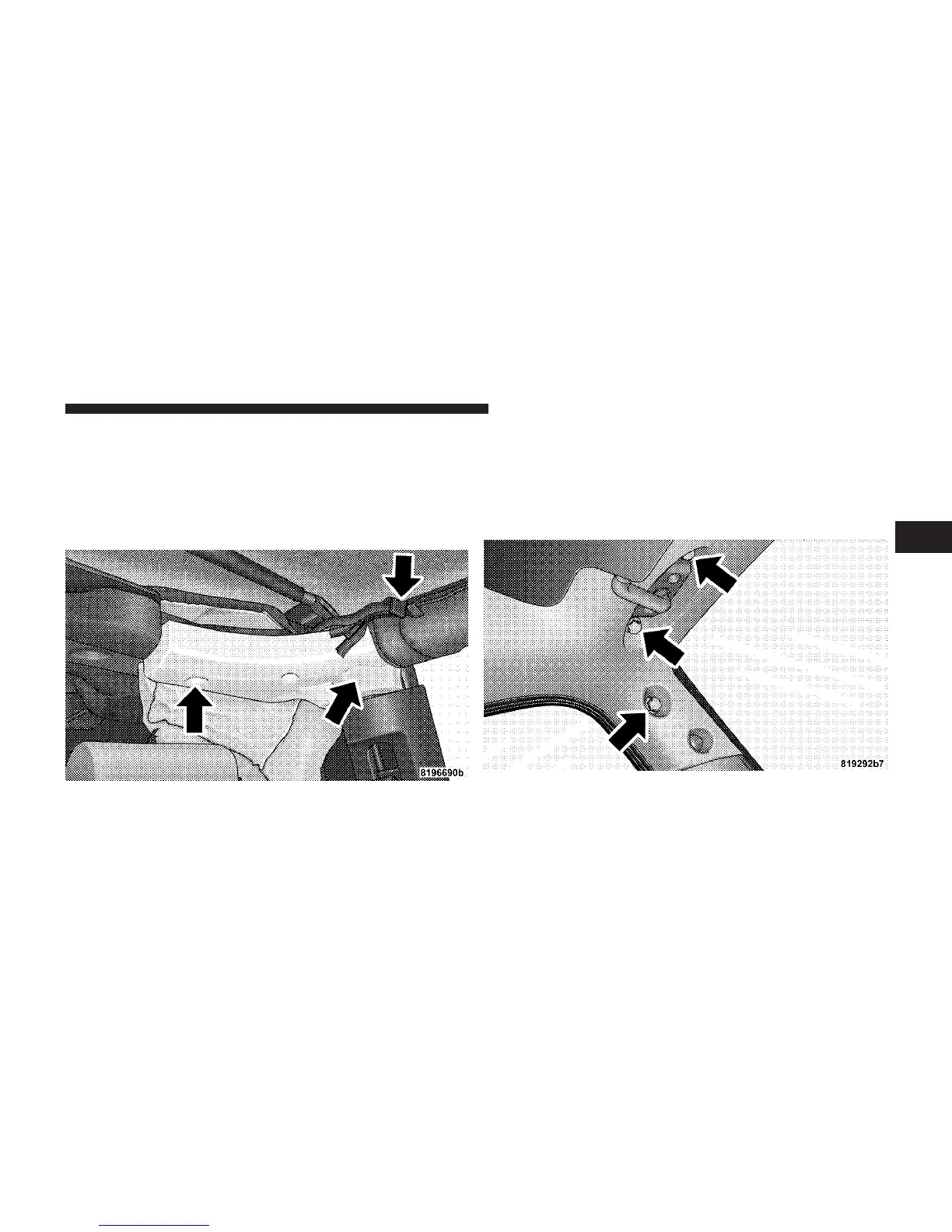

Raising The Windshield And Replacing Side Bars
1. Raise the windshield.
2. Loosely attach the rear of the side bar to the sport bar.
Refer to Step 4 of “Lowering Windshield And Removing
Side Bars” earlier in this section.
•
Reattach the sport bar Velcro威 covering.
3. Attach the front of the side bar to the windshield
frame.
•
Install the top two hex bolts (13 mm) first, then the
lower side hex bolt (13 mm). The lower side bolt will
not align until the top two bolts are installed.
4. Tighten all side bar attachment bolts.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259
