2

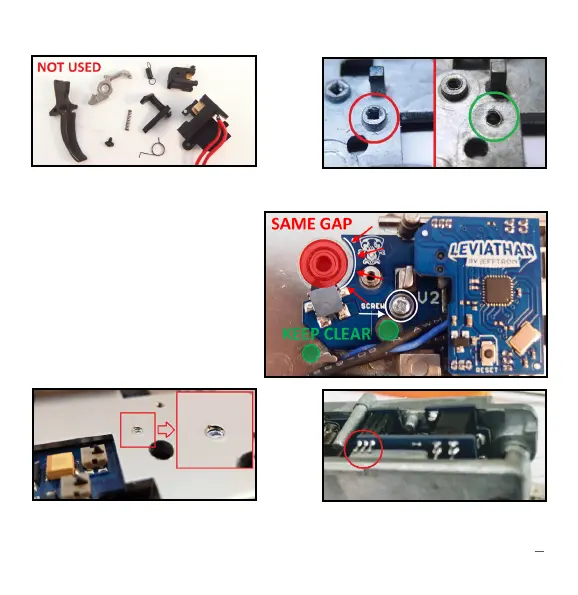

6. Make sure the screw doesn‘t stick out
outside of the gearbox. If yes grind it.
7. In the ICS gearbox grind edge in red
circle to not interfere with contacts.
5. Insert Leviathan-V2 in the place of
the original trigger contacts. Check if
it is laid at on the gearbox shell and
transparent foil covers socket contacts.
Adjust the position of the Leviathan to
same distance from bearing (arrows).
Use screw with washer from package
and screw device to the gearbox (whi-
te circle). Make sure the green areas are
not covered by board or wires.
4. If your gearbox has high screw
mounting, cut it o to at surface.
3. Take out these parts out of the gear-
box (not used with Leviathan - V2).
