INSTALLATION GUIDE – FRAMED MODEL PANELS
!
CAUTION
Refrigerator Panel Weight Not to Exceed
50lb. (22.36 kg)
Total Freezer Panel Weight Not to Exceed
33 lb. (14.96 kg)
Grille Panel Weight Not to Exceed 22lb.
(9.97 kg)

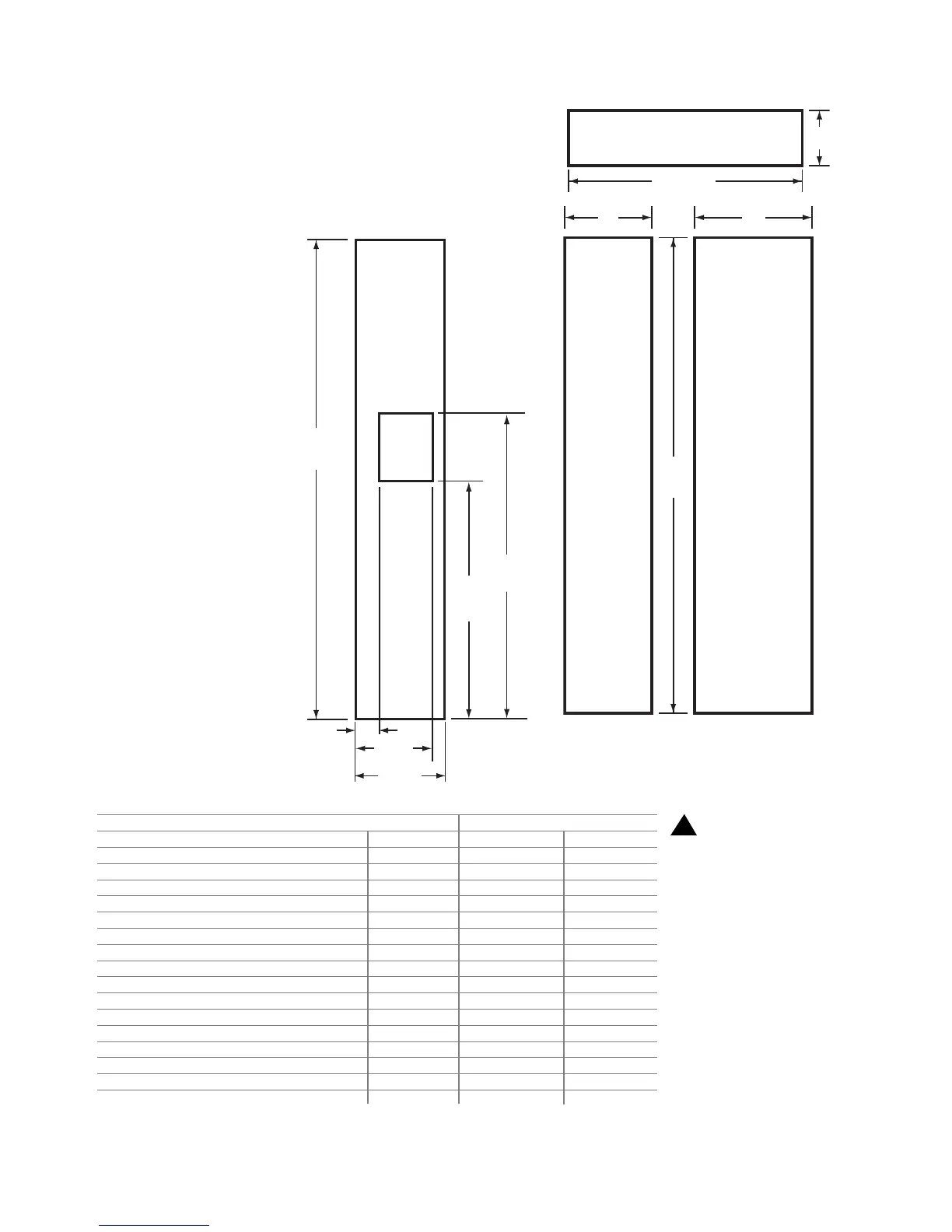

A. 1/4” Framed Panel Specifications for Framed Models
Jenn-Air offers 42-inch and 48-inch dispenser and non-dis-
penser models with the framed design. The framed trim
remains visible when using the framed panel installation.
These models accommodate a 1/4” panel depth (or less).
Refer to page 20 for toe kickplate panel information.
If installing side panels, refer to page 19.
Important: Because of continuing product improvements, Jenn-Air reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
42” Wide Cabinet 48” Wide Cabinet
in cm in cm
(A) Grille Panel
W Width 40 1/4 102.24 46 1/4 117.47
H Height 8 3/4 22.23 8 3/4 22.23
(B) Freezer Dispenser Panel
W Width 15 1/16 38.26 17 5/16 43.97
W1 Width 2 5.08 2 5.08
W2 Width 14 1/2 36.83 14 1/2 36.83
H Height 69 1/8 175.58 69 1/8 175.58
H1 Height 34 1/16 86.52 34 1/16 86.52
H2 Height 48 1/8 122.24 48 1/8 122.24
(C) Freezer Non-Dispenser Panel
W Width 15 1/16 38.26 17 5/16 43.97
H Height 69 1/8 175.58 69 1/8 175.58
(D) Refrigerator Panel
W Width 22 5/16 56.67 26 1/16 66.20
H Height 69 1/8 175.58 69 1/8 175.58
