INSTALLATION
It’s a good idea to read all of the instructions before beginning the installation. We recommend
having your Jensen JRVCS1 installed by a reputable RV dealership
Tools and Supplies
You will need these tools and supplies to install your JRVCS1:
 Phillips screwdriver
 Wire cutters and strippers
 Electrical tape
 Crimping tool
 Volt meter/test light
 Fork Crimp connectors
 10 gauge wire for power and slide connections
 14 and 18 gauge wire for all other connections
 Four #8 PH (0.164” x 0.75”) screws for the DC
 Six #8 PH (0.164” x 1.0”) screws for the BCM
Disconnecting the Battery
To prevent a short circuit, be sure to turn off 12V power and remove the negative (-) battery
cable prior to installation.
Selecting the Mounting Location
Select a mounting location, taking care to avoid the following:
 Places exposed to heat-radiating appliances such as electric heaters
 Adjacent to other equipment that radiates heat
 Poorly-ventilated or dusty places
 Moist or humid locations
Mounting the Display Commander (DC)
 Use the mounting hole diagram to measure and cut a mounting hole
 Route power wires through the hole and connect
 Check and ensure correct operation
 Mount the unit using four #8 PH (0.164” x 0.75”) screws
 Attach Trim ring

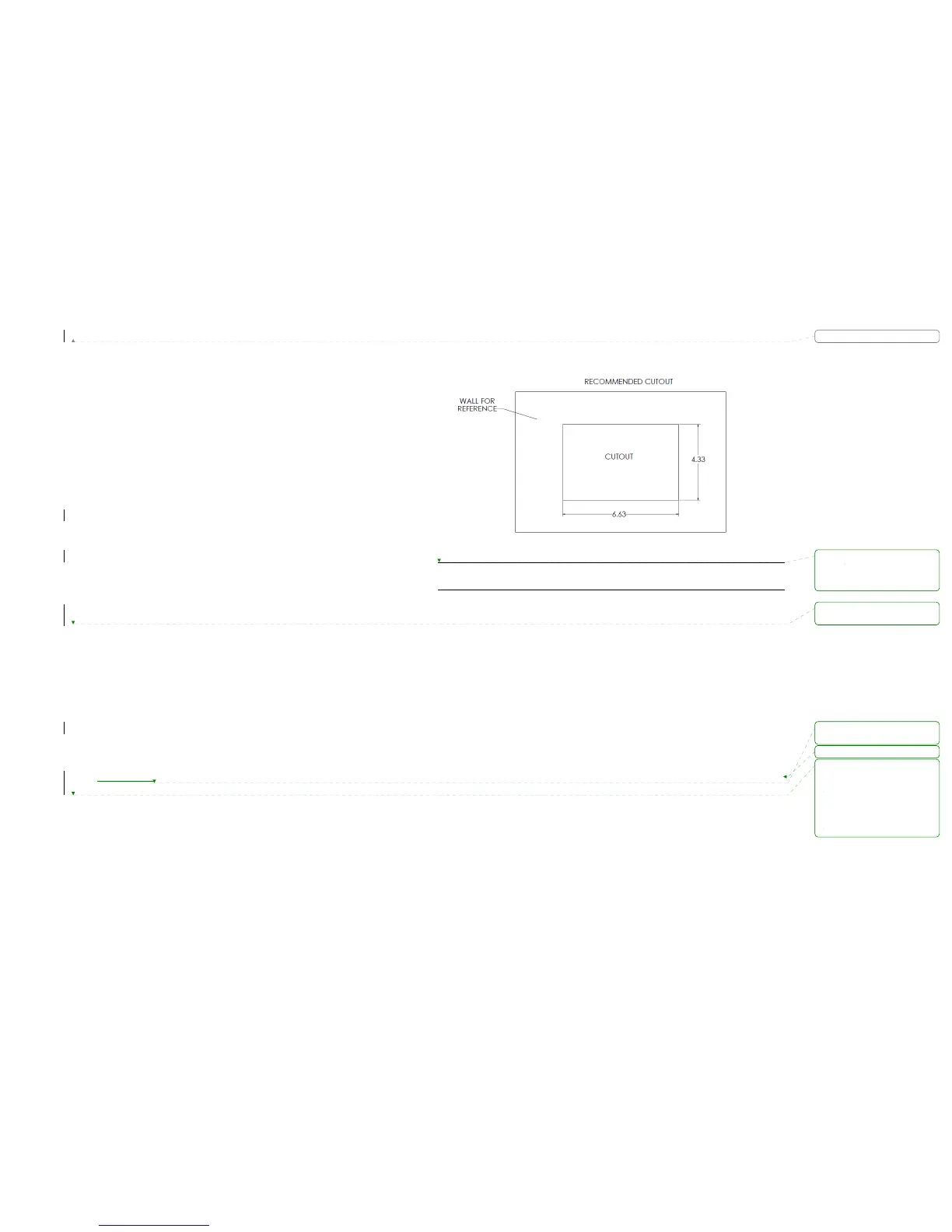

CUTOUT FOR DISPLAY COMMANDER (DC)
NOTE: Before cutting the mounting hole, make sure the area behind the mounting
location is clear of wires, fuel and vacuum or water lines.
