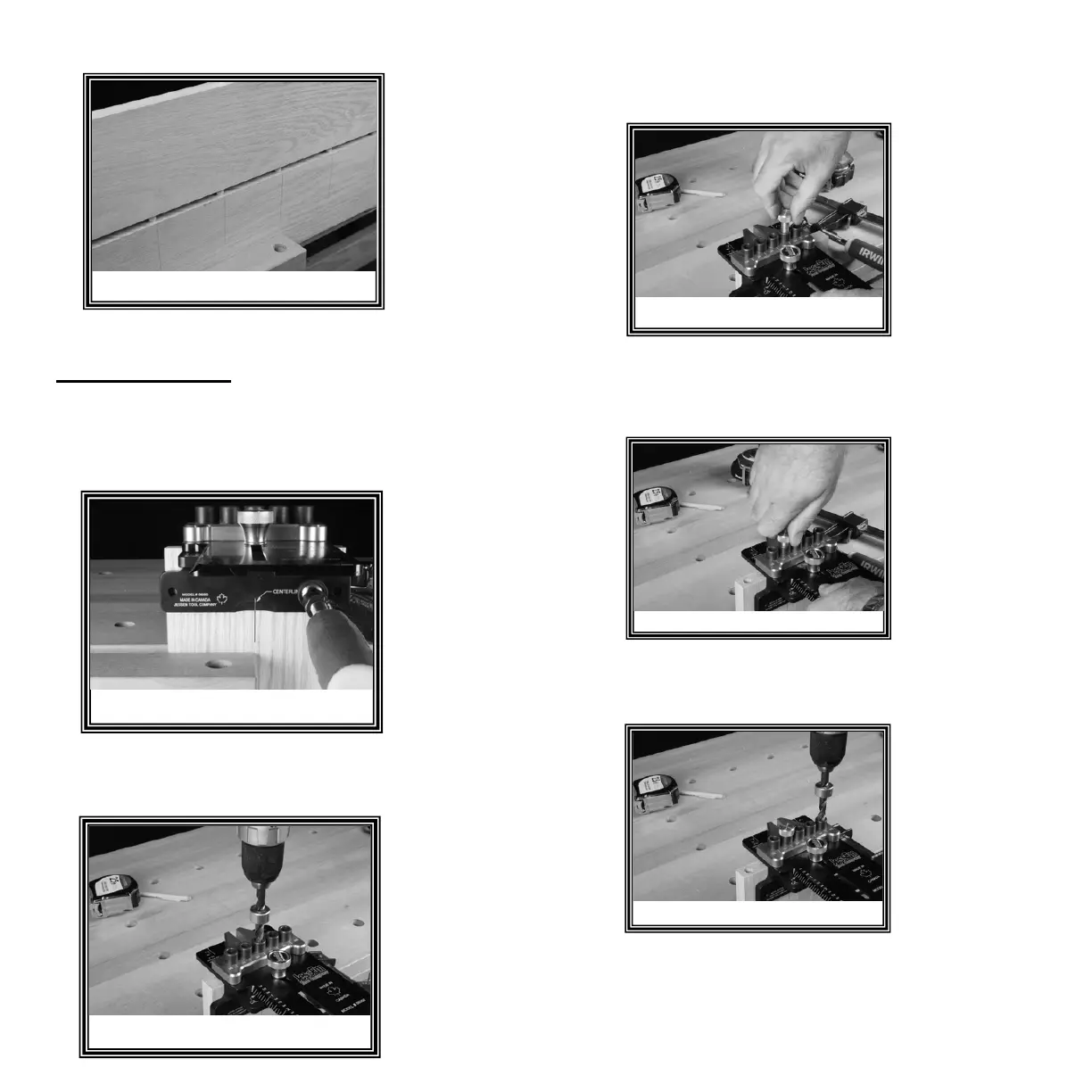

Test fit the joint. (See Figure #19)
We are
now going to join a shelf board to the mating piece.
We marked a centreline on the shelf and aligned and
clamped
the
jig
in
this position. (See Figure #20)
Drill a hole in the centre bushing. (See
Figure #21)
We are using
the indexing pin and the centre hole previously
drilled to position the jig for the third hole. (See Figure #23)
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Joining a Shelfboard
Drill the third hole in the far right bushing. (See Figure #24)
We are using the indexing pin in the centre hole previously
drilled to position the jig for the second hole. (See Figure #22)
We are going to drill a hole in the far left bushing.
8
