The distance from the front edge of the jig is 2” from the
c
entre of the bushings. Mark a line where you want the
dowels and also
2” from this point. Clamp the shelf board
on the 2” line.
Figure 30
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29

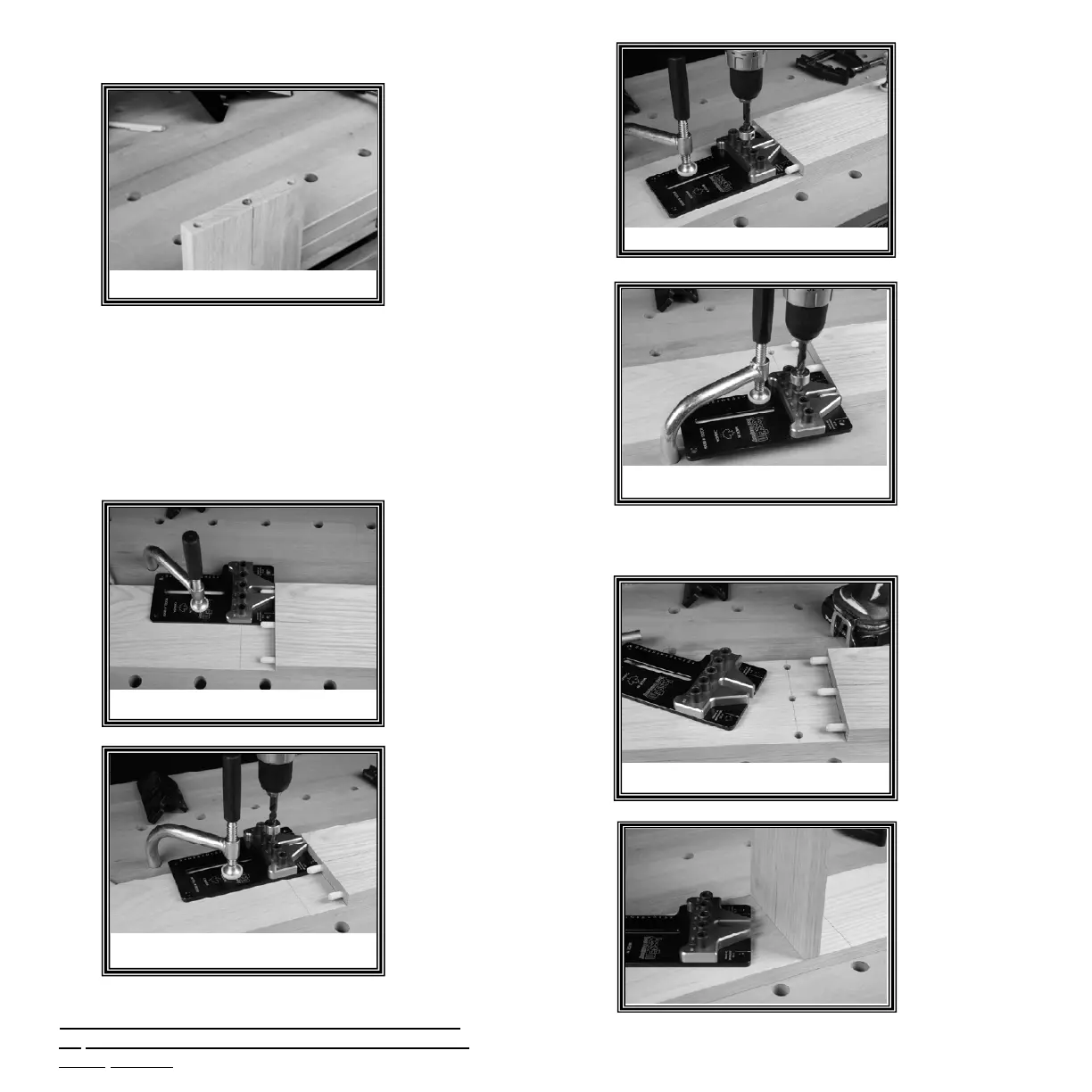

The shelf board is now complete. (See Figure #25)
Install dowels in the shelf board and using the alignment
slot, align and clamp the jig in position. (See Figure #26)
Drill using the centre bushing and repeat for each location.
(CAUTION: ADJUST THE DRILL BIT DEPTH COLLAR
TO ENSURE NOT TO DRILL COMPLETELY THROUGH
YOUR BOARD.
(See Figure 27, 28 and 29)
With the holes drilled, test fit the joint. (See Figure #30)
