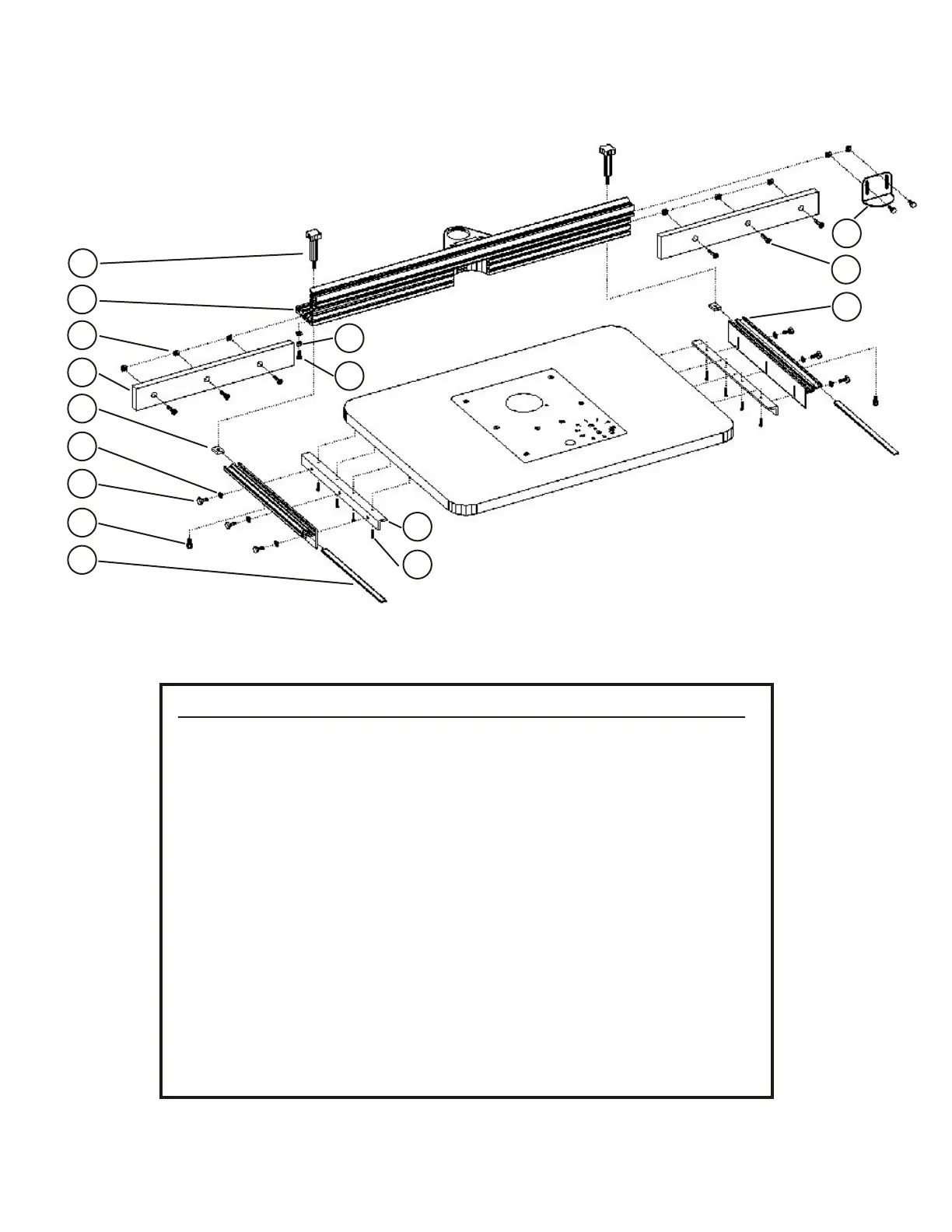

MAST-R-FENCE PARTS DIAGRAM
ITEM # PART # DESCRIPTION QTY.
1 E0033 1/8” x 5/8” x 11-3/4” Aluminum Scale 2
2 M0028 1/4”-20 x 1/2” Stud w/Knurled Knob 4
3 F0020 1/4”-20 x 3/4” Hex Head Cap Screw 6
4 F0037 1/4” Flat Washer 6
5 S0014 1/4” x 3/4” x 1-1/2” Fence T-Nut 2
6 M0054 Sub-Fence - Phenolic 2
7 F0028 1/4” Square Nuts 14
8 E0036 Fence Frame 1
9 M0026 Extension Knobs 2
10 F0060 1/4” x 5/8” Phillips Head Bolt 1
11 F0062 Nylon Spacer 1/2” 1
12 F0016 #6 x 3/4” Wood Screw 8
12(A) F0048 10-24 x 5/8” Socket Head Cap Screw 8
13 E0034 Track Mounting Angle 2
14 E0035 Fence Track 2
15 F0005 1/4”-20 x 1” Flat Head Cap Screw 6
16 M0040 Guard 1
12
13
14
15
16
5
4
1
9
2
3
8
7
6
10
11
**
** If you are mounting the Mast-R-Fence to a JessEm phenolic table top use the
F0048 screws item (12A) listed below. We provide both these and wood screws
which are supplied to be used for a custom table application.
