Jet 120i - Page 6

6
Table 01: Dimensions

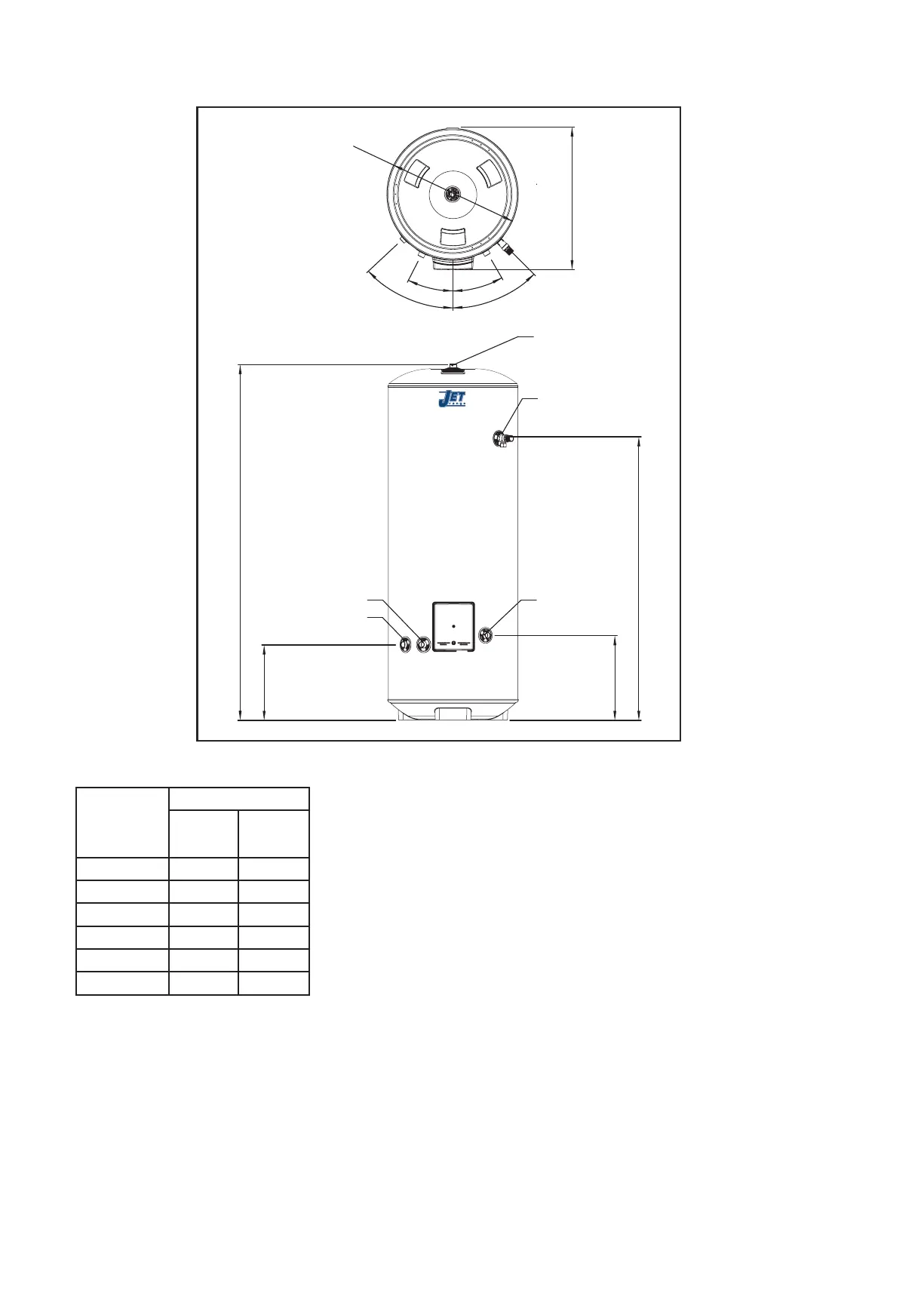

Fig. 03: General Dimensions
Model
Reference
Dimensions (mm)
A B
120 Ind 931 616
150 Ind 1114 800
170 Ind 1241 927
210 Ind 1499 1184
250 Ind 1752 1379
300 Ind 2065 1694
315
A
354
B
Hot Outlet
T&P Valve
Cold Inlet
Primary Return
Primary Flow
25°
45°
30°
45°
592
Ø
550
