Keep children and visitors a safe
distance from the work area.
Never leave a running machine
unattended. Before you leave the
workplace switch off the unit.
Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.
Do not use the dust collector in a
dump environment and do not expose
it to rain.
Do not use this equipment to filter
volatile fumes or smoke.
Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like
beach and oak, is classified as a
carcinogenic substance.
Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.
Have a damaged or worn power cord
replaced immediately.
3.3 Remaining hazards
When using the machine according to
regulations some remaining hazards
may still exist.
Dust can cause injuries.
The use of incorrect mains supply or a
damaged power cord can lead to
injuries caused by electricity.
Danger of explosion if not properly
grounded.
4. Machine specifications
4.1 Technical data
Dust inlet Ø 200mm (3xØ 100mm)
Air flow Ø 200 2900 m³/h
Air flow Ø 100 1180 m³/h
Vacuum pressure 1800Pa
Collector bag capacity 2 x 200L
Overall DC-1900A:
(LxWxH) 1550x760x2440mm
Net weight 86 kg
Overall DC-1900CK:
(LxWxH) 1550x760x1830mm
Net weight 110 kg
Mains 400V ~3L/PE 50Hz
Output power 2,2kW (3 HP) S1
Reference current 4.2 A
Extension cord (H05RN-F) 4x1,5mm²
Installation fuse protection 16A
4.2 Noise emission
Acoustic pressure level
(according to EN ISO 11202):
LpA 82 dB(A).
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of the
hazards and risks involved only.
4.3 Content of delivery
2 Filter bags (DC-1900A)
2 Canister filters (DC-1900CK)
Mobile casters
2 Cone support brackets
2 Cones
Dust inlet 3 x 100 mm
Set of 10 collection bags
5. Assembly and start up
5.1 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the unit!
Dispose of the packing in an
environmentally friendly manner.

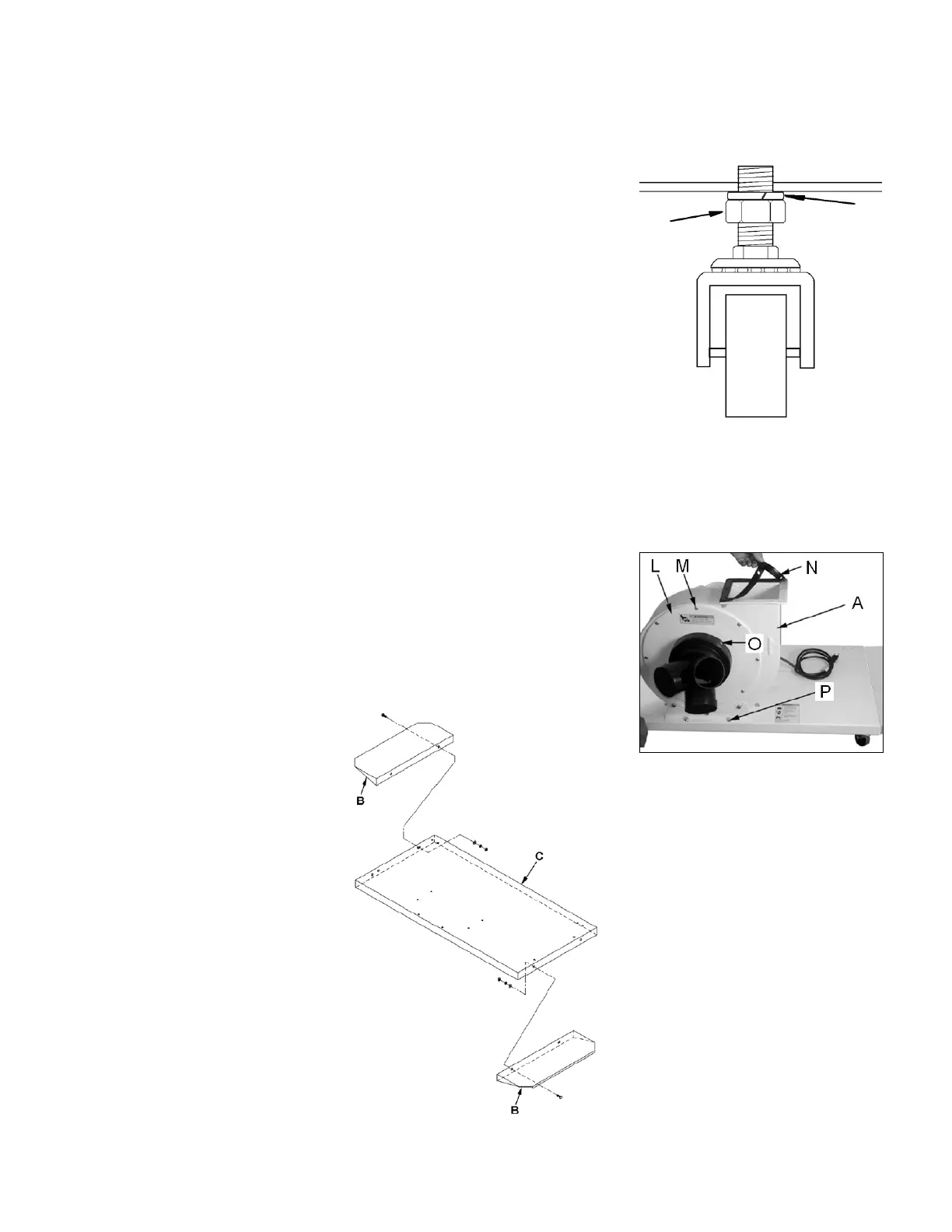

Base:
Attach the base extensions (B, Fig 1)
to the base (C) with hex head screws,
washers, lock washers and nuts.
Fig 1
Casters:
Install four casters to the under side of
the base with lock washer and nut (Fig
2)
Fig 2
Motor and fan assembly:
Attach the motor and fan assembly (A,
Fig 3) to the base, using 4 hex head
screws (P) and washers.
Fig 3
Attach inlet guard (L) to fan housing
using 8 pan head screws (M).
Press the inlet port and secure with
provided screw (O).
Place the lower gasket (N) on the fan
housing.
Attention:
To reduce the risk of injury from
moving parts, always keep inlet port
covered with the caps provided, if they
are not connected to a hose.
Connector Tube:
Place the connector tube (Q, Fig 4) on
the fan housing and attache with 6 hex
screws, washers and nuts (R).
