Jets 25MBA - Page 11

Jets™ 25MBA Vacuumarator™ pump
Tel. +47 70 03 91 00
www.jetsgroup.com
Product No. 200025004
Doc. Rev.: 22 (2021-06-08)
11
13

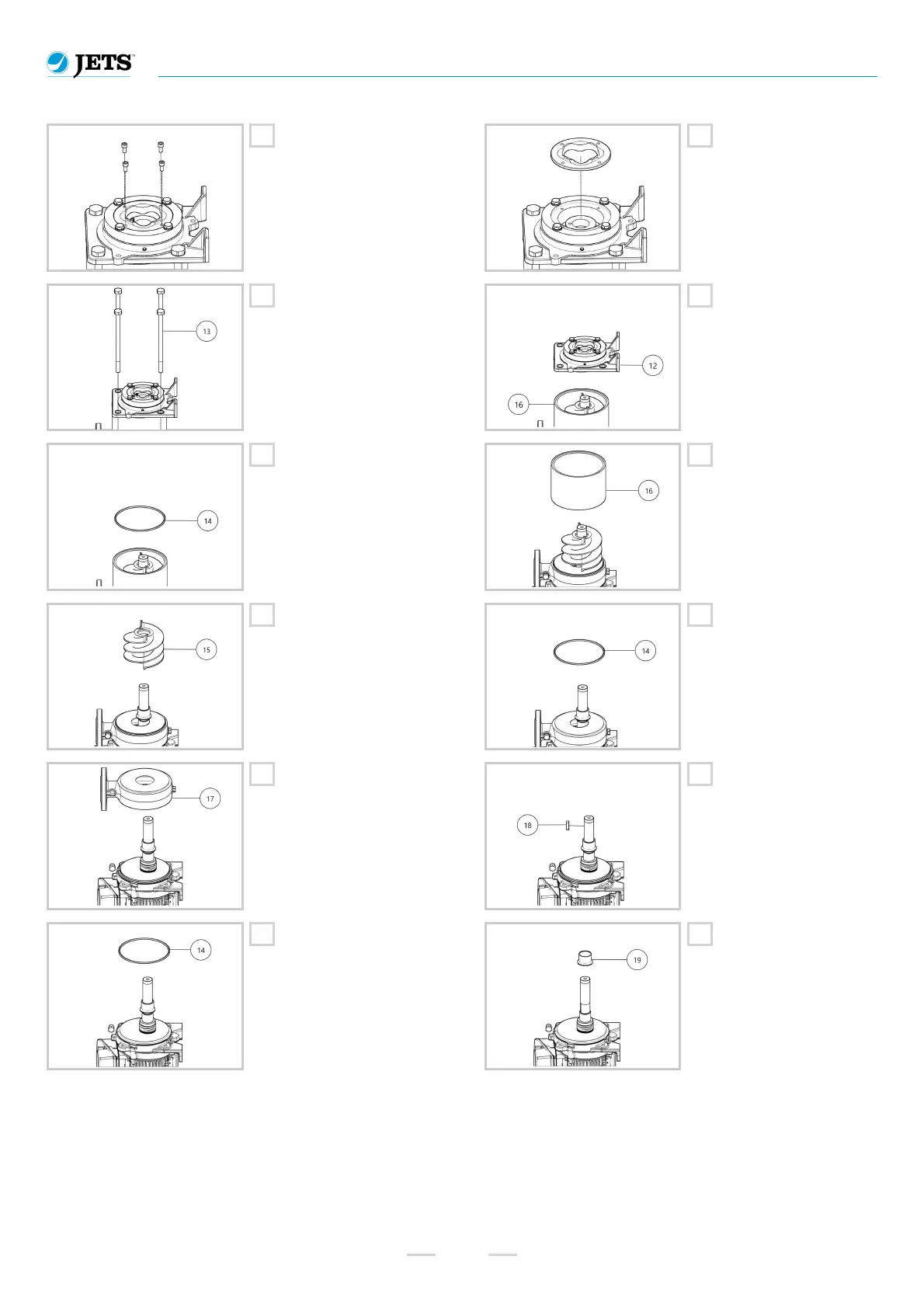

Remove the four screws (M5x12)
securing the stationary knife in place.
14
Remove the stationary knife from
the assembly.
15
Remove the four stay bolts ℺.
16
Remove the end flange ℹ from
the rotor housing ℽ.
17
Remove the O-ring ℻.
18
Remove the rotor housing ℽ.
19
Remove the rotor ℼ.
20
Remove the O-ring ℻.
21
Remove the pressure chamber ℾ. A
rubber mallet may be required.
22
Remove the key ℿ.
23
Remove the O-ring ℻.
24
Remove the spacer sleeve ⅀.
