Jets™ 25MBA Vacuumarator™ pump
Tel. +47 70 03 91 00
www.jetsgroup.com
Product No. 200025004
Doc. Rev.: 22 (2021-06-08)
5
Function and Principle
Description
Flap Valve: Facilitates flow into the pump, seals vacuum in the pipes and prevents backflow.
Macerator: The macerator grinds any solids to a fine pulp.
Helical Screw: The helical screw uses liquid to create a seal facilitating vacuum in the pump housing.
Shaft: The shaft is the connecting factor between the macerator, helical screw and motor. It supports and rotates the helical screw and macerator.
Motor: Supplies power to support pump function.
Fan: The fan provides cooling for the motor.
Inlet: Flow inlet from the source into the pump.
Outlet: Flow outlet from the pump to the pipe connection/discharge.

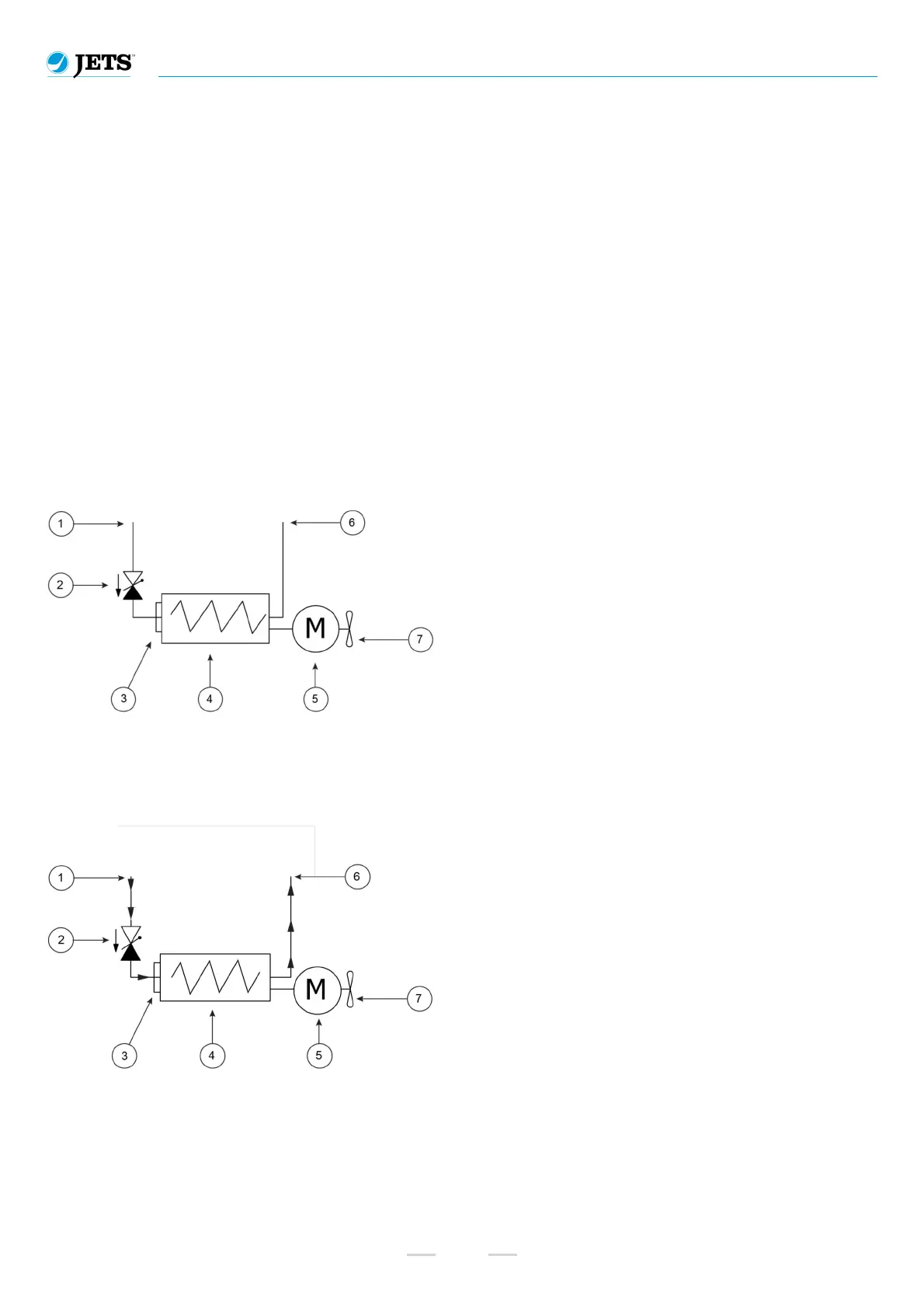

Explanation of the Vacuumarator™ Pump Function
℮ Inlet
ℯ Flap Valve
ℰ Macerator
ℱ Helical Screw
Ⅎ Motor
ℳ Outlet
ℴ Fan
Normal Position - Pump Inactive
● Motor Ⅎ - INACTIVE
Fan ℴ - INACTIVE
● Helical Screw ℱ - INACTIVE
Macerator ℰ - INACTIVE
● Flap Valve ℯ - CLOSED
Running Conditions - Activated Sequence
● Motor Ⅎ - ACTIVATED
Fan ℴ - ACTIVATED
● Helical Screw ℱ - ACTIVATED
Macerator ℰ - ACTIVATED
● Inlet ℮ - FLOWS
● Flap Valve ℯ - OPENS
● Outlet ℳ - FLOWS
● Motor Ⅎ - DEACTIVATED
Fan ℴ - DEACTIVATED
● Helical Screw ℱ - DEACTIVATED
Macerator ℰ - DEACTIVATED
● Flap Valve ℯ - CLOSES
● Inlet ℮ - FLOW STOPS
Outlet ℳ - FLOW STOPS
