Jets Jade - Dimension Drawings; Overall Dimensions; Height and Depth Specifications

Jets™ Jade Floor Toilet
Tel. +47 70 03 91 00
www.jetsgroup.com
Product No. TO661PO
Rev 2017-08-29 14:46
2

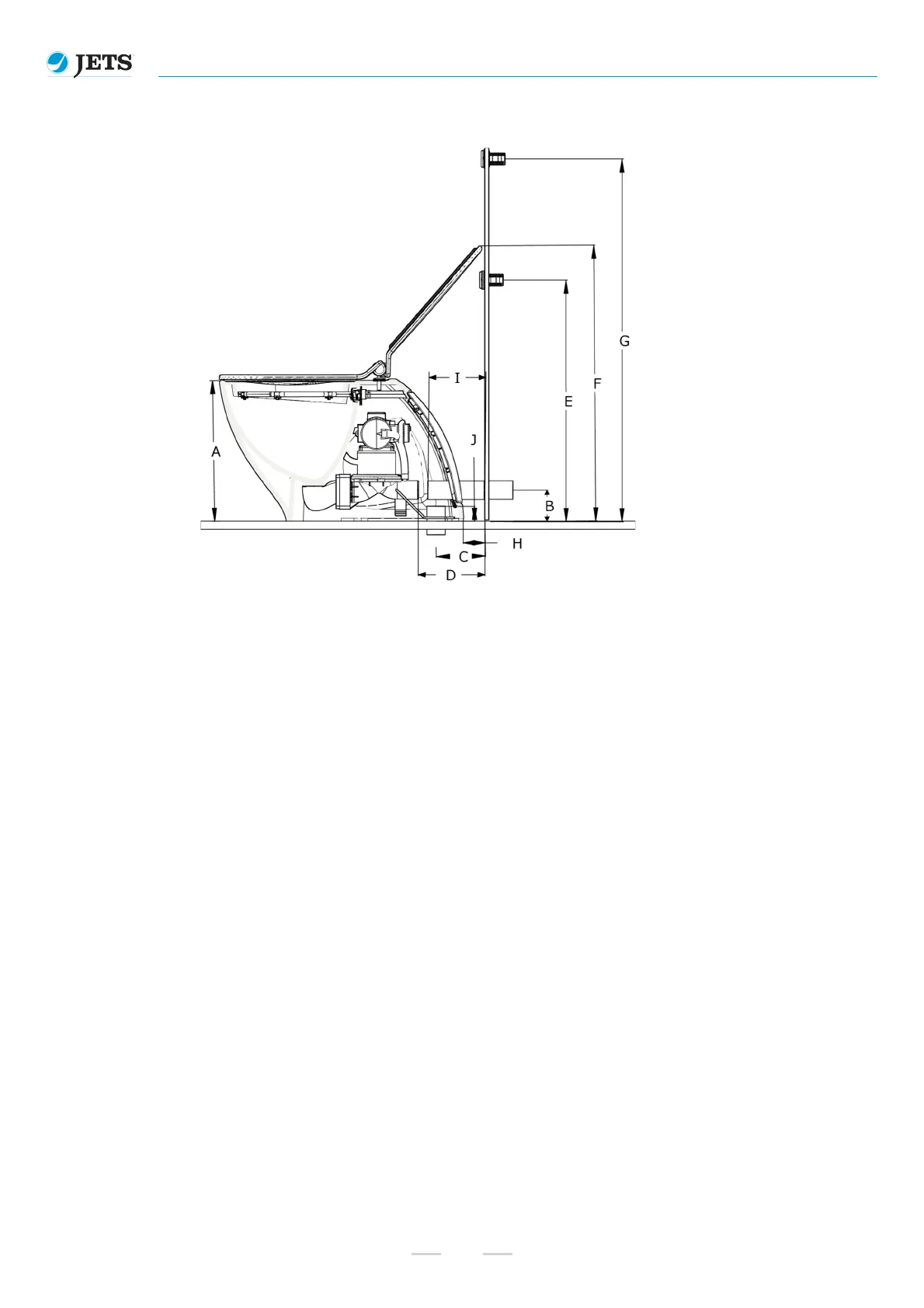

Dimension Drawings
A
.............................................................................................................................................................................................................................................
Approx. 410mm
B
.............................................................................................................................................................................................................................................
100mm
C
.............................................................................................................................................................................................................................................
(If H is 40mm) - 115mm
D
.............................................................................................................................................................................................................................................
(If H is 40mm) - 160mm
E
.............................................................................................................................................................................................................................................
Release mechanism - normal height 670mm
F
.............................................................................................................................................................................................................................................
830mm
G
.............................................................................................................................................................................................................................................
Release mechanism - public toilet height 950mm
H
.............................................................................................................................................................................................................................................
(see note) - 40mm
I
.............................................................................................................................................................................................................................................
(If H is 40mm) - 155mm
J
.............................................................................................................................................................................................................................................
65mm
Note:
If the toilet is placed further than 40mm away from the back wall, the values of C, D, F and I will change.
H - Should be a minimum of 40mm and a maximum of 70mm.
