JFE Advantech RINKO FT - Page 35

33

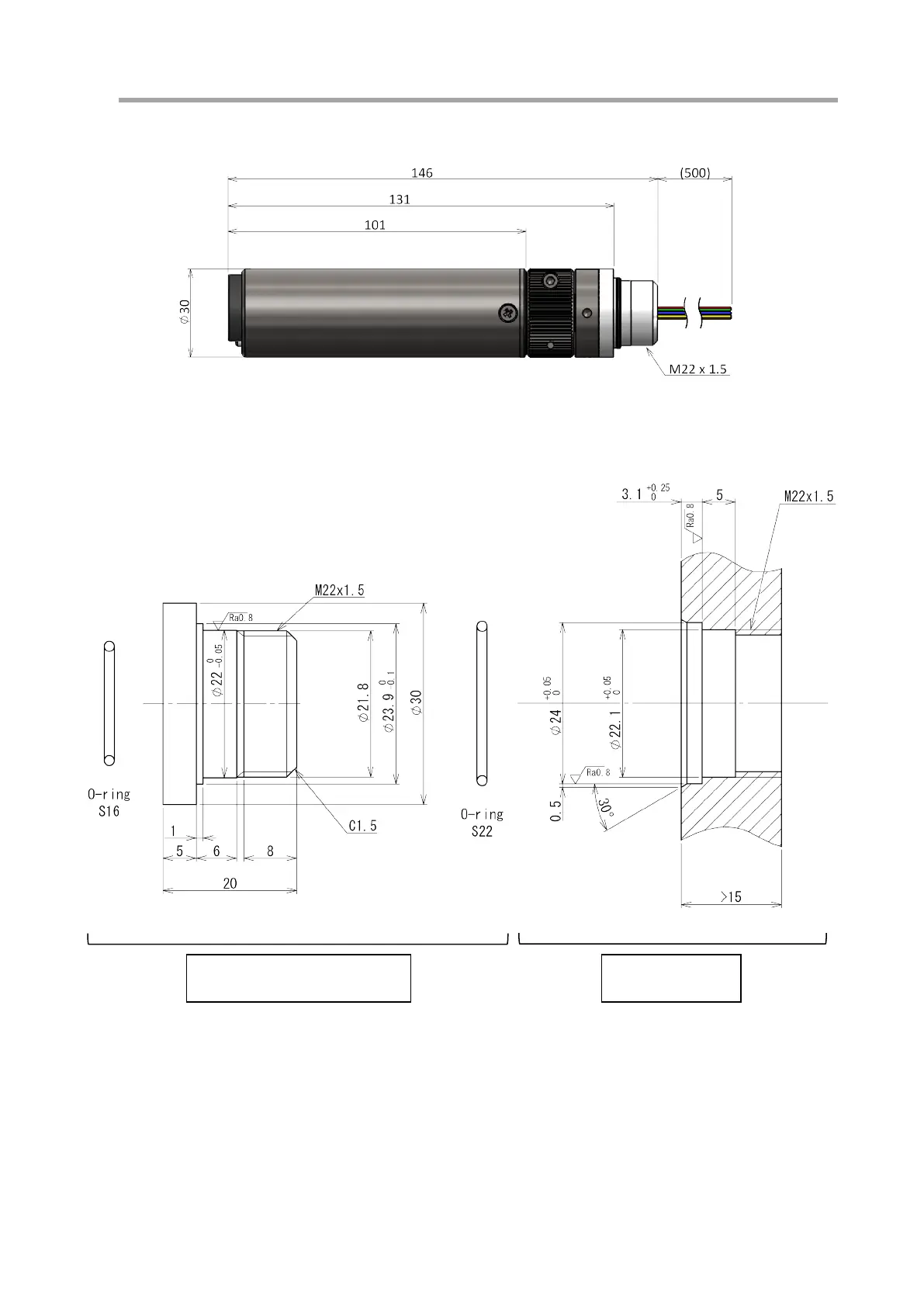

Drawing 9.4
Dimensions are in mm.
Figure 9.1 Standard type (ARO-FT)
Figure 9.2 Mounting part of standard type (ARO-FT)
Insulation screw and O-rings
(Sensor side)
Mounting hole
(Platform side)
