6

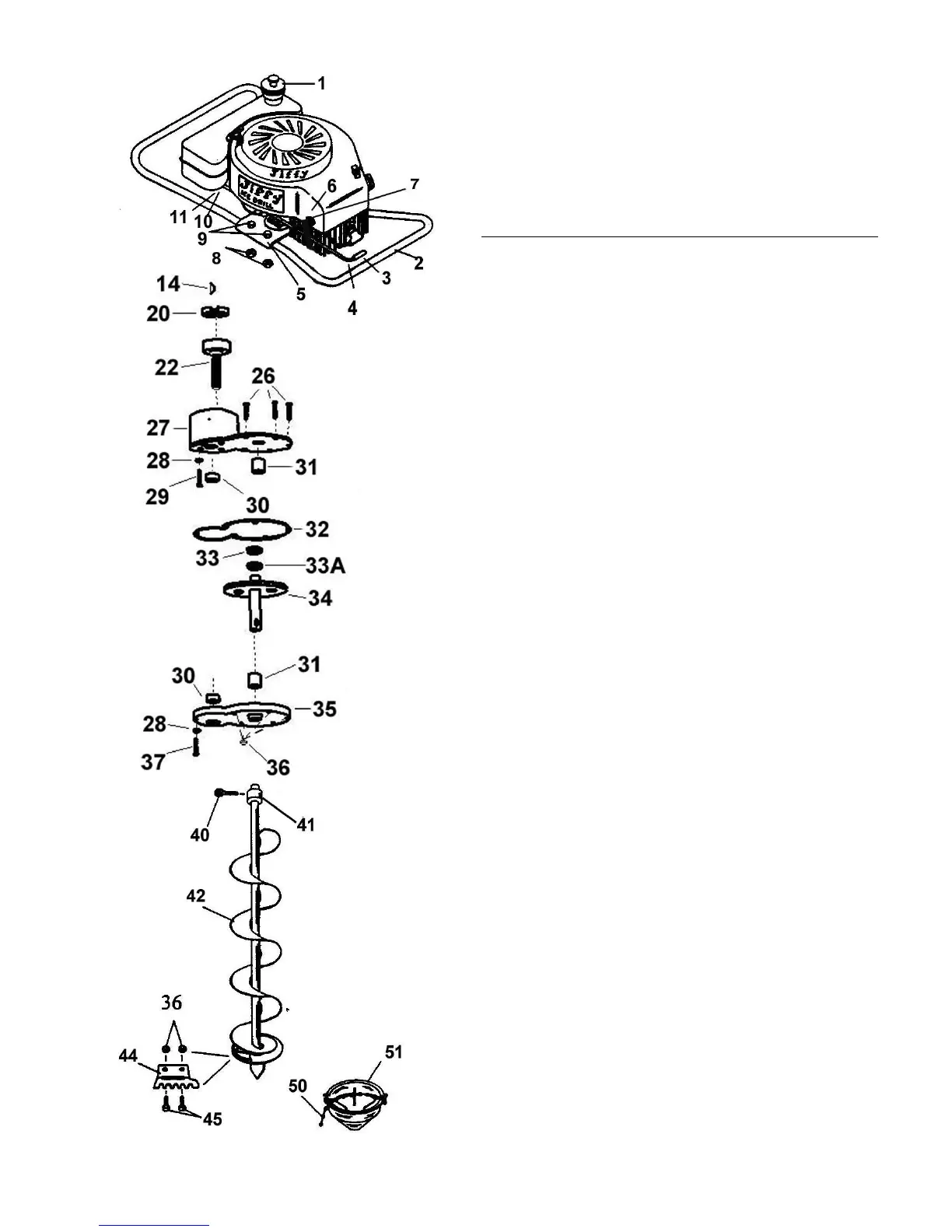

JIFFY® POWER ICE DRILL
30 SERIES PARTS LIST
Includes: Model 30, Model 31 LEGEND XT™,
Model 34 STEALTH STX™,
Standard Universal and XT Universal Drill Assemblies
REF. NO. PART NO. DESCRIPTION NO. USED
1 3033 Fuel Tank Cap 1
2 2879 Wing Handle Half (For Model 30) 2
“ 3485 “ “ “ (For Model 31 & 34) 2
3 1721 Vinyl Finger Grip 1
4 1716 Throttle Rod 1
5 2823 Wing Handle Plate 1
6 2451 Locknut 1
7 1717 Eyebolt 1
8 2841 Locknut 4
9 2840 Hex Capscrew 4
10 1718 Machine Screw 1
11 1719 Locknut 1
14 1118 Shaft Key 1
20 3689 Clutch Driver 1
22 3680 Clutch Drum/Pinion Assembly 1
26 1683 Hex Capscrew 5
27 2899 Upper Housing (For Model 30) 1
“ 3599 “ “ (For Model 31, 34) 1
28 1688 Lockwasher 5
29 1682 Hex Capscrew 4
30 1600 Ball Bearing 2
31 1640 Bronze Bearing 2
32 1637 Gasket 1
33 1670 Flat Washer 1
33-A 3634 Teflon Washer 1
34 1645 Main Gear and Shaft Assembly 1
35 2894 Lower Housing (For Model 30) 1
“ 3601 “ “ (For Model 31, 34) 1
36 2336 Locknut 7
37 1684 Hex Capscrew 1
40 3972 Clevis Pin 1
41 3971 E-Z Connect™ Collar 1
42 3730-XT 6” Universal XT Drill Assy. 1
“ 3731 8” Standard Universal Drill Assembly 1
“ 3731-XT 8” Universal XT Drill Assy. 1
“ 3732 9” Standard Universal Drill Assembly 1
“ 3732-XT 9” Universal XT Drill Assy. 1
“ 3733 10” Standard Universal Drill Assembly 1
“ 3733-XT 10” Universal XT Drill Assy. 1
44 3536 6” Replaceable Ripper Blade 1
“ 3538 8” Replaceable Ripper Blade 1
“ 3539 9” Replaceable Ripper Blade 1
“ 3540 10” Replaceable Ripper Blade 1
45 2355 Hex Capscrew 2
50 1866 Blade Protector Strap 1
51 3301 Blade Protector for 6” Ice Drill 1
“ 2120 Blade Protector for 8” Ice Drill 1
“ 2121 Blade Protector for 9” Ice Drill 1
“ 2205 Blade Protector for 10” Ice Drill 1
Replacement Blade Kit for Jiffy Stealth STX Drills Only
3586-STX 6” Replacement Stealth Blade Kit 1
3588-STX 8” Replacement Stealth Blade Kit 1
3589-STX 9” Replacement Stealth Blade Kit 1
3590-STX 10” Replacement Stealth Blade Kit 1
