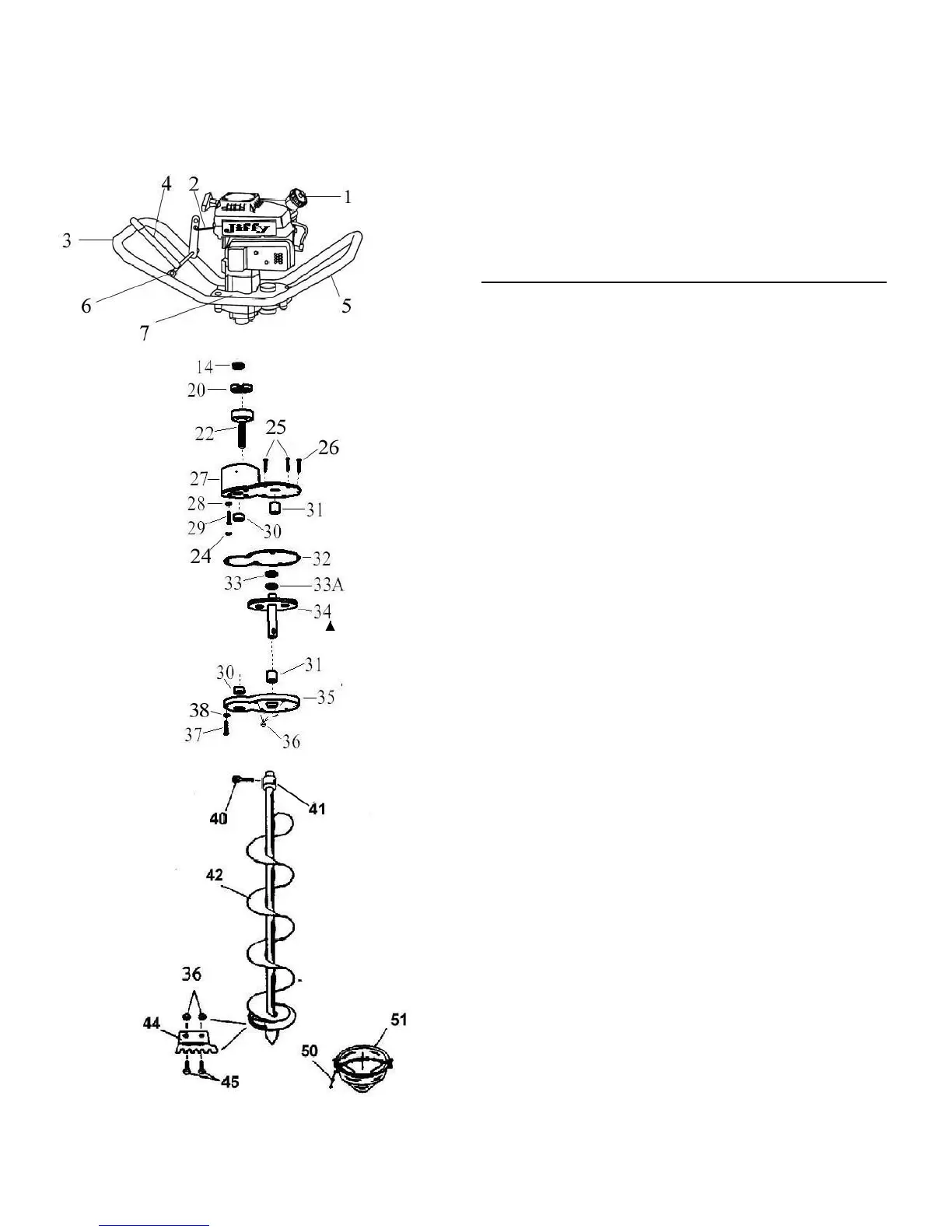

JIFFY® POWER ICE DRILL
70 SERIES PARTS LIST
Includes:
Model 75-arcticBLAST™, Model 76 WHITE LIGHTning™,
Model 77 LEGEND LIGHTning XT™, STEALTH STX™
Standard, Universal, and XT Drill Assemblies
1 3033 Fuel Tank Cap 1
2 2780 Throttle Wire 1
3 2773 Wing Handle Half w/Ears (For Model 75 & 76) 1
“ 3255
“ “ “ “ (For Model 77 & 79) 1
4 2775 Throttle Control Assembly 1
5 2783 Wing Handle Half (For Model 75 & 76) 1
“ 3256 “ “ “ (For Model 77 & 79) 1
6 2512 Push Nut 2
7 3908 Wing Handle Plate 1
14 2768 Clutch Driver Washer 1
20 2383 Clutch Driver 1
22 3681 Clutch Drum/Pinion Gear 1
24 2704 Vinyl Cap 2
25 3351 Hex Capscrew 4
26 1683 Hex Capscrew 1
27 2893 Upper Gear Housing (For Model 75, 76) 1
“ 3602 “ “ “ (For Model 77, 79) 1
28 1119 Lockwasher 4
29 1996 Hex Capscrew 4
30 1600 Ball Bearing 2
31 1640 Bronze Bearing 2
32 1637 Gasket 1
33 1670 Flatwasher 1
33A 3634 Teflon Thrust Washer 1
34 1645 Main Gear & Shaft Assembly 1
35 2894 Lower Gear Housing
(For Model 75, 76) 1
“ 3601 “ “ “ (For Model 77, 79) 1
36 2336 Locknut 5
38 1688 Lockwasher 1
37 1684 Hex Capscrew 1
40 3972 Clevis Pin 1
41 3971 E-Z Connect™ Collar 1
42 2952 8” Standard Ice Drill Assy. (Model 75 only) 1
“ 3730-XT 6” Universal XT Ice Drill Assembly 1
“ 3731 8” Standard Universal Ice Drill Assembly 1
“ 3731-XT 8” Universal XT Ice Drill Assembly 1
“ 3732 9” Standard Universal Ice Drill Assembly 1
“ 3732-XT 9” Universal XT Ice Drill Assembly 1
36 2336 Locknut 2
44 3536 6” Replaceable Ripper Blade 1
“ 3538
8” Replaceable Ripper Blade 1
“ 3539 9” Replaceable Ripper Blade 1
45 2355 Hex Capscrew 2
50 1866 Blade Protector Strap 1
51 3301 Blade Protector for 6” Ice Drill 1
“ 2120 Blade Protector for 8” Ice Drill 1
“ 2121 Blade Protector for 9” Ice Drill 1
Replacement Blade Kit for Jiffy Stealth STX Drills Only
3586-STX 6” Replacement Stealth STX Blade Kit 1
3588-STX 8” Replacement Stealth STX Blade Kit 1
3589-STX 9” Replacement Stealth STX Blade Kit 1
REF. # PART # DESCRIPTION #USED
