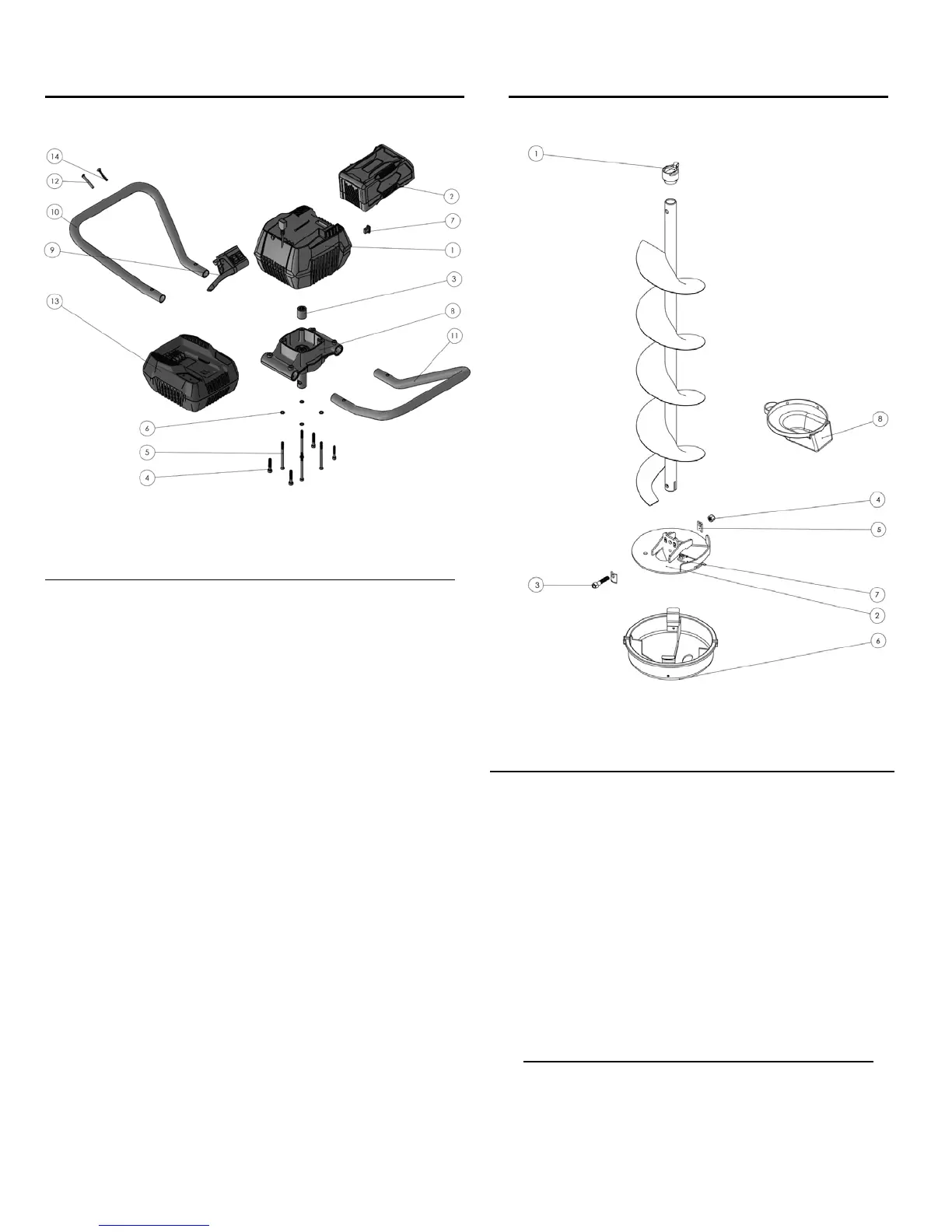

E6 LIGHTNING™ ICE DRILL PARTS LIST
REF. # PART # DESCRIPTION #USED
1 5620 Motor Case Assembly 1
2 5605 Battery 1
3 5617 Drive Adaptor 1
4 5621 Hardware Kit (M6 x 35 Capscrew) 4
5 5621 Hardware Kit (M5 x 80 Capscrew) 4
6 5621 Hardware Kit (M5 Flat Washer) 4
7 5616 USB Cover 1
8 5618 24:1 Electric Planetary Transmission 1
8 5619 15:1 Electric Planetary Transmission 1
*NOTE: SEE SIDE OF TRANSMISSION FOR 24:1 OR 15:1
9 5628 Throttle Lever 1
10 5615 Cushion Handle (Throttle Side) 1
11 4424 Cushion Handle 1
12 5621 Hardware Kit (
M5 x 40 Pan Head Phillips Screw) 1
13 5607 Battery Charger 1
14 5621 Hardware Kit
(M5 x 35 Pan Head Phillips Screw) 1
XT™ DRILL ASSEMBLY PARTS LIST
REF. # PART # DESCRIPTION #USED
1 3996 Replacement E-Z Connect™ Collar 1
2 3743 6” XT™ Head Kit 1
“ 3744 8” XT™ Head Kit 1
“ 3745 9” XT™ Head Kit 1
“ 3746 10” XT™ Head Kit 1
3 2259 Hex Capscrew 3/8-16 x 1 ¾” 1
4 1938 Locknut, 3/8-16 x 1 ¾” 1
5 3503 D-Icer Head Support Clip 2
6 2120 8” Easy Snap™ Blade Protector 1
“ 2121 9” Easy Snap™ Blade Protector 1
“ 2205 10” Easy Snap™ Blade Protector 1
7 3536 6” Ripper™ Blade – replaces #3292, #3292-D 1
“ 3538 8” Ripper™ Blade – replaces #1801, #1801-D 1
“ 3539 9” Ripper™ Blade – replaces #1802, #1802-D 1
“ 3540 10” Ripper™ Blade – replaces #1803, #1803-D 1
8 3301 6” Blade Protector 1
COMPLETE REPLACEMENT DRILL ASSEMBLY
3730-XT 6” XT Drill Assembly
3731-XT 8” XT Drill Assembly
3732-XT 9” XT Drill Assembly
3733-XT 10” XT Drill Assembly
