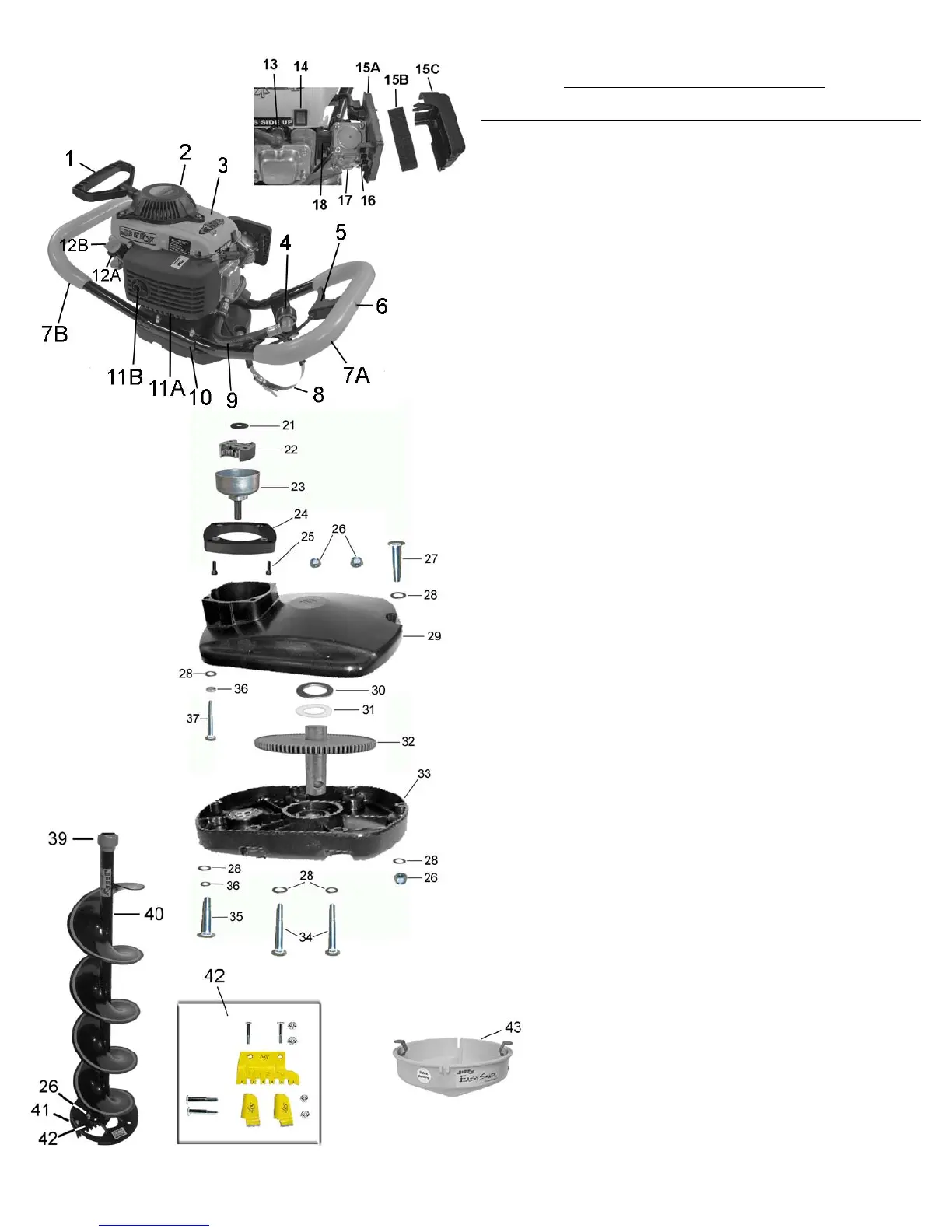

PRO4 ICE DRILL PARTS LIST
REF. # PART # DESCRIPTION #USED
1 4180 Mitten Grip Recoil Handle 1
2 4304 Recoil Assembly 1
3 4322 Yellow Engine Shroud 1
4 4271 Vinyl Cap 1
5 4048 Throttle Control Assembly 1
6 4170 Machine Screw for Cushioned Handles 1
7A 4335 Cushion Handle & Cradle Asbly
(Throttle Side) 1
7B 2783 Cushion Wing Handle 1
8 4316 Propane Tank Clamp 1
9 4366 Propane Delivery System 1
10 3722 Handle Plate 2
11A 4307 Muffler Cover 1
11B 4306 Muffler 1
12A 4349 Oil Fill Tube 1
12B 4345 Oil-Fill Dipstick with O-Ring 1
13 4290 Spark Plug 1
14 4323 On-Off Switch 1
15A 4339 Inside Air Cleaner Cover 1
15B 4338 Foam Air Filter Element 1
15C 4337 Outside Air Cleaner Cover 1
16 4327 Gasket 1
17 4363 Carburetor 1
18 4363 Carburetor Adaptor Kit 1
21 2768 Clutch Washer 1
22 2383 Clutch Driver 1
23 3681 Clutch Drum & Pinion Assembly 1
24 3973 Engine Adaptor 1
25 4053 Sockethead Capscrew 4
26 2336 Locknut 7
27 3228 Hex Capscrew 1
28 1689 Flat Washer 11
29 3720 Upper Gear Case Assembly 1
30 1670 Flat Washer 1
31 3634 Teflon® Washer 1
32 3707 Main Gear & Shaft Assembly 1
33 3721 Lower Gear Case Assembly 1
34 3351 Hex Capscrew 4
35 1683 Hex Capscrew 1
36 1119 Lock Washer 5
37 1996 Hex Capscrew 4
39 3996 Replacement E-Z Connect™ Collar w/ Pin 1
40
3730-PRO 6” STX PRO Drill 1
“
3731-PRO 8” STX PRO Drill 1
“ 3732-PRO 9” STX PRO Drill 1
“
3733-PRO 10” STX PRO Drill 1
41 2355 Hex Capscrew 2
42
3588-STX 8” STX Blade Kit 1
“ 3589-STX 9” STX Blade Kit 1
“
3590-STX 10” STX Blade Kit 1
43 4038 8” Easy Snap™ Blade Protector - Yellow 1
“ 4039 9” Easy Snap™ Blade Protector - Yellow 1
“ 4040 10” Easy Snap™ Blade Protector – Yellow 1
