This document outlines the features, usage, and maintenance of the DTS3443 set-top box, designed to enhance the television viewing experience with satellite signals. The device is compatible with Claro TV digital services, offering improved image and sound clarity.

Function Description

The DTS3443 set-top box is a digital satellite receiver capable of processing DVB video standards, including MPEG2 and MPEG4 modulation (DVB-S/S2). It is equipped with advanced 8PSK and QPSK demodulation and decoding technologies, allowing it to receive and decode a wide range of digital satellite television programs. The device features a Nagra Silicon Secret CAS Certificate, ensuring secure access to content. For audio, it provides HI-FI digital stereo output, delivering a high-quality sound experience. The set-top box also includes a USB port, enabling users to connect external hard drives for personal digital recording, allowing them to record and replay their favorite programs. An Electronic Program Guide (EPG) is integrated, offering detailed programming information and facilitating program selection. The device supports OTA (Over-The-Air) updates, ensuring that its software can be easily updated with the latest features and improvements.

Usage Features

The DTS3443 set-top box is designed with a user-friendly interface, making it easy to navigate and operate. Key features include fast program switching, allowing users to quickly change channels without significant delays. An automatic frequency search function simplifies the setup process, as the device can automatically detect and configure available satellite frequencies. A lock password feature provides parental control and restricts access to certain content or settings.

The front panel of the receiver includes a power button to switch between power and standby modes, and CH-/CH+ buttons for changing channels in the menuless state. The rear panel offers several connectivity options: an RF IN port for digital signal input from the antenna, a USB port for connecting external storage devices for recording and replaying content, an HDMI port for digital audio and video output to a TV, and a VIDEO connector for constant video signal output to additional VCR connections. It also has AUDIO Right and Left connectors for connecting to external amplifiers or TV audio inputs, an S/PDIF electrical output for connecting to an audio amplifier, and a Power Input for the power adapter. A Smartcard slot is available for inserting a service card.

The remote control unit (RCU) provides comprehensive control over all decoder features. It includes buttons for power on/off, muting sound, displaying audio selection, showing current channel information (INFO), switching between TV and Radio modes (TV/R), accessing the main menu (MENU), returning to the previous menu or exiting (EXIT), and confirming operations (OK). Navigation is facilitated by directional buttons (up/down/left/right) for cursor movement, page up/down, and volume control. Dedicated buttons for volume (V+/V-) and page navigation (P+/P-) are also present. The RCL button switches to the last viewed channel. Subtitle language lists can be accessed via the SUB button, and teletext services via the TEXT button. The FAV button displays the favorites list, and EPG brings up the programming guide. Color buttons offer context-dependent functions within menus or the remote control.

Recording and Time Shift operations are easily managed. The remote allows users to start Time Shift or pause recording, manually initiate recording, and access the file list menu for Time Shift files. Forward and backward operations for recorded files are also supported.

The main menu is organized into five parts:

System Settings: Allows users to configure satellite settings, perform automatic or manual scans of TPs (Transponder), update firmware via OTA, and reset factory settings.
Channels: Provides access to the Programming Guide, channel information, program editing and sorting, and management of Favorite Channels List.
Utilities: Enables checking disc information, configuring default settings for Digital Recording, and listing scanned recording files.
Information: Displays information related to CA (Conditional Access), mail, and basic system details.
User Settings: Configures various user screen settings, Time Scheduler settings, and parental control options.

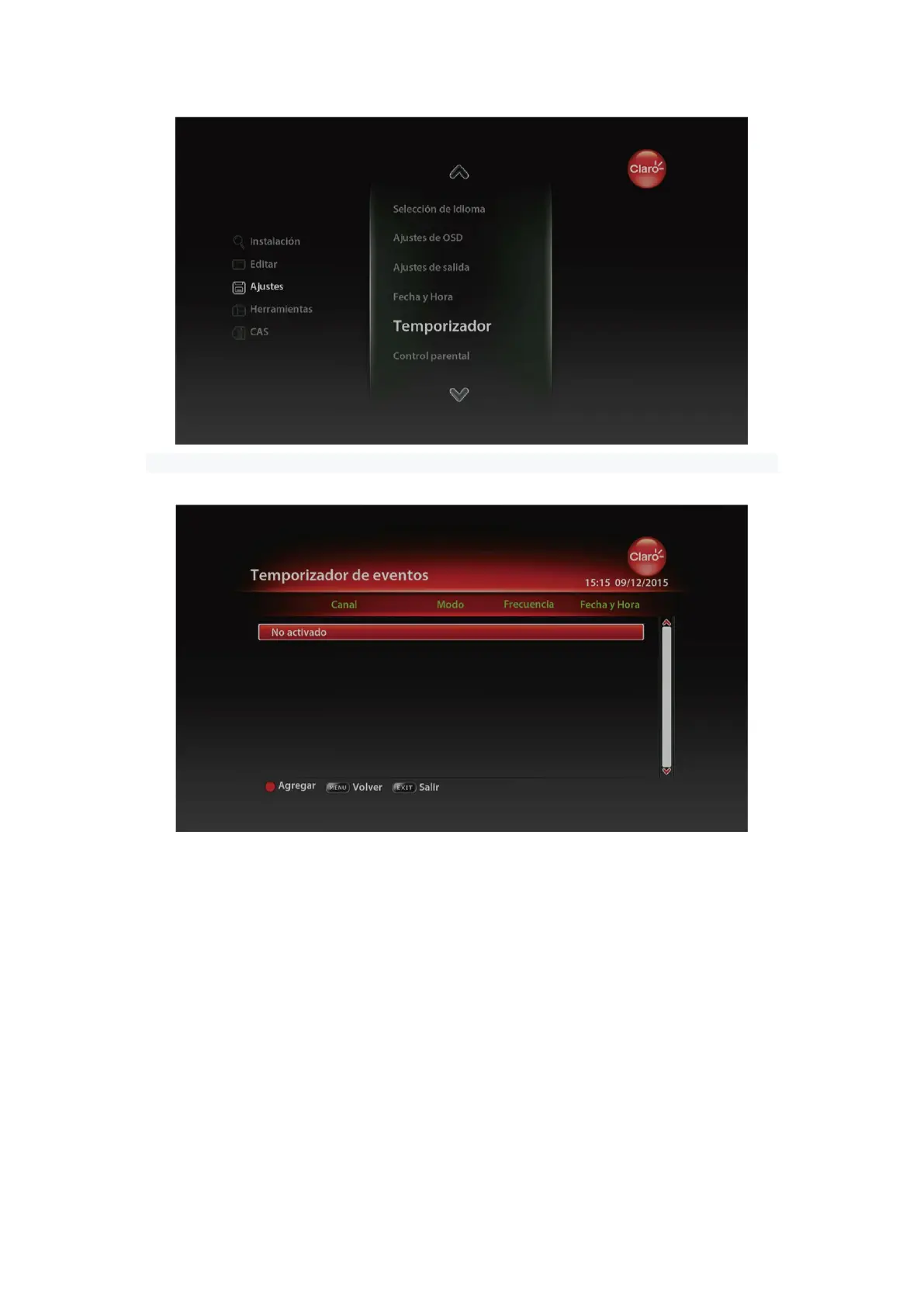

The Time Scheduler allows users to set different timers for playback, recording, and rest. Recording timers can be added or canceled using the yellow and red keys on the remote, respectively. Users can select recording parameters such as cycle, start date, start time, and channel time duration from a list. Recording can also be initiated directly from the EPG by pressing the yellow button when the focus is on the right side of the guide. Direct recording is possible by pressing the REC button when a storage device is connected.

Maintenance Features

To ensure the longevity and proper functioning of the DTS3443 set-top box, several maintenance guidelines are provided. The device should not be exposed to extreme heat, cold, or moisture. Users are advised not to remove the cover to prevent electric shock or damage. Heavy objects should not be placed on the receiver. If the receiver is not in use for an extended period, the power cord should be disconnected to prevent fire or electric shock, and a damaged power cord should never be used. When moving the receiver to a location with a significant temperature difference, it is recommended to wait 1-2 hours before turning it on to allow it to acclimate. Liquids or other materials should never be allowed to enter the receiver.

The device complies with FCC Rules Part 15, meaning it should not cause harmful interference and must accept any interference received. Any changes or modifications not expressly approved by the responsible party could void the user's authority to operate the equipment. If the equipment causes harmful interference to radio or television reception, users are encouraged to reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment to an outlet on a different circuit, or consult a dealer or experienced radio/TV technician for assistance.
