JK B2A8S20P - 3 Connector and Interface Description; 3.1 Connector and LED Location

JK Smart BMS JK-B1A8S20P/JK-B2A8S20P User Manual
a) Operating Temperature Range：-20℃～70℃；
b) Power requirements：10~40V。
c) Power consumption: 25mA@40V in balanced state, 20mA@40V in unbalanced state
3 Connector and interface decription
3.1 Connectors, LED light location description

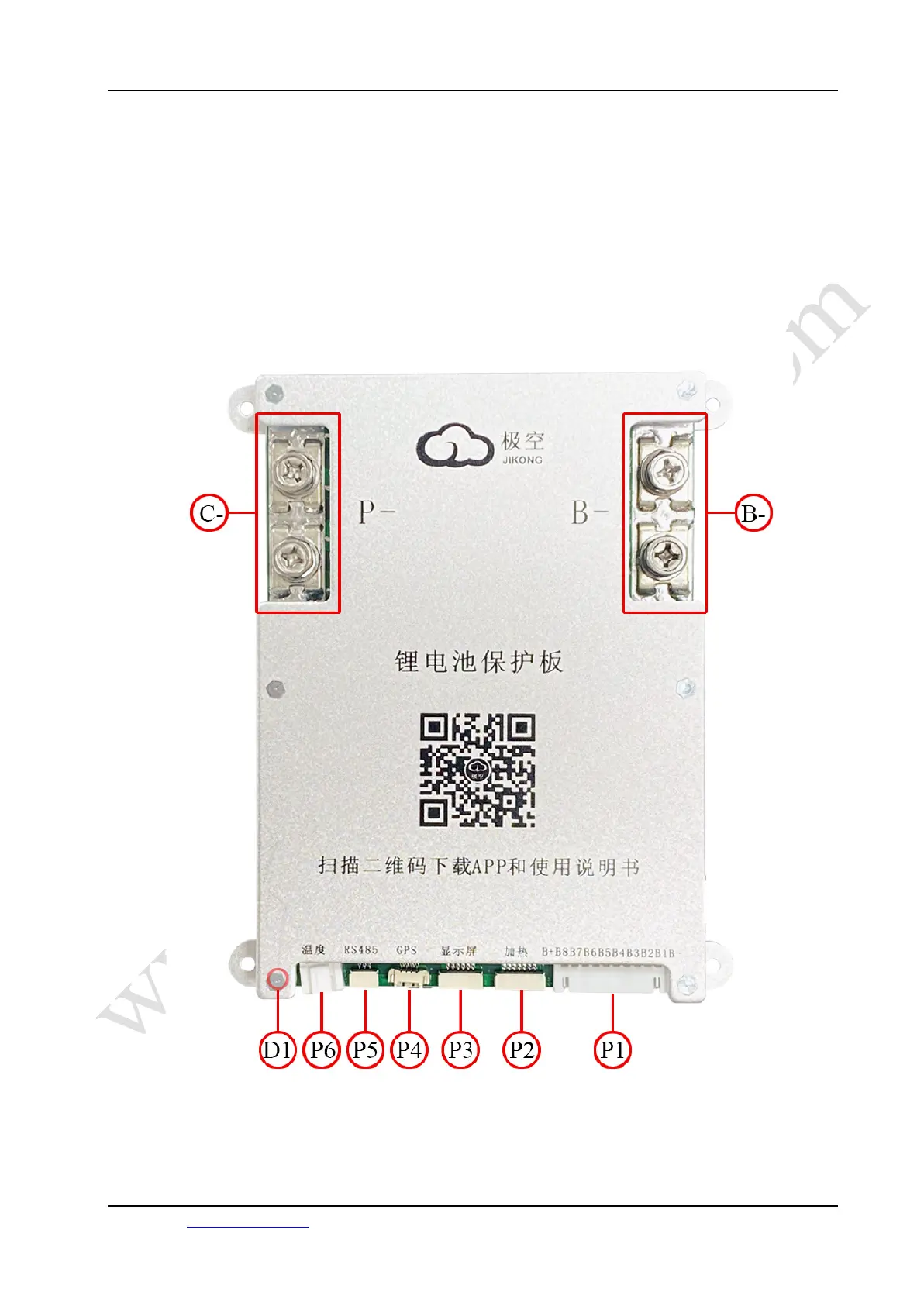

Figure 1 - JK-B1A8S20P/JK-B2A8S20P Connector
4 /22
