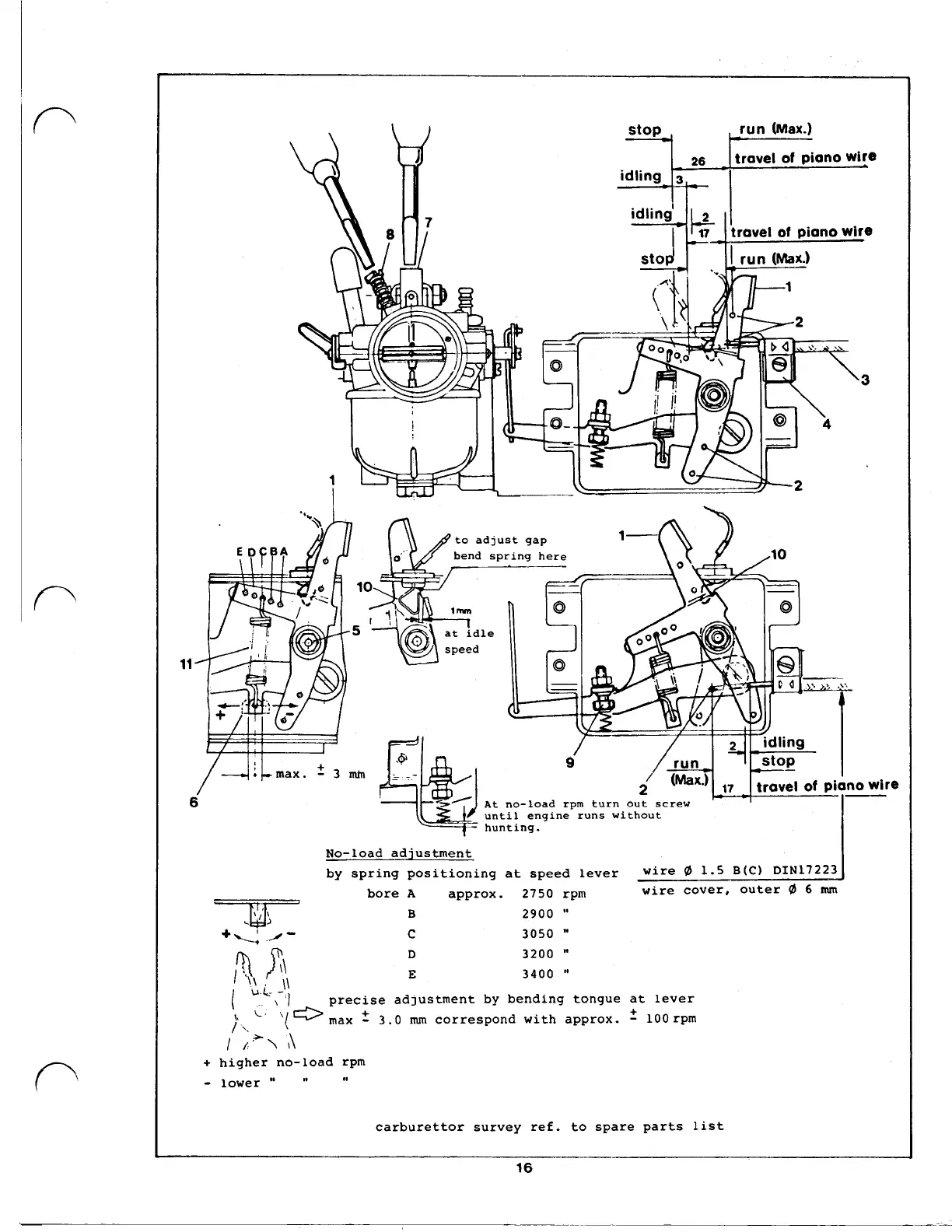

No-load adjustment
by spring positioning
at speed lever wire 1.5 B(C)
bore A approx. 2750 rpm wire cover, outer 6 mm
B 2900 "
C 3050
D 3200 "
E 3400 "
I
(
precise adjustment by bending tongue at lever
max 3.0 mm correspond with approx. 100 rpm
/
+ higher no-load rpm
- lower " "
carburettor survey ref. to spare parts list
