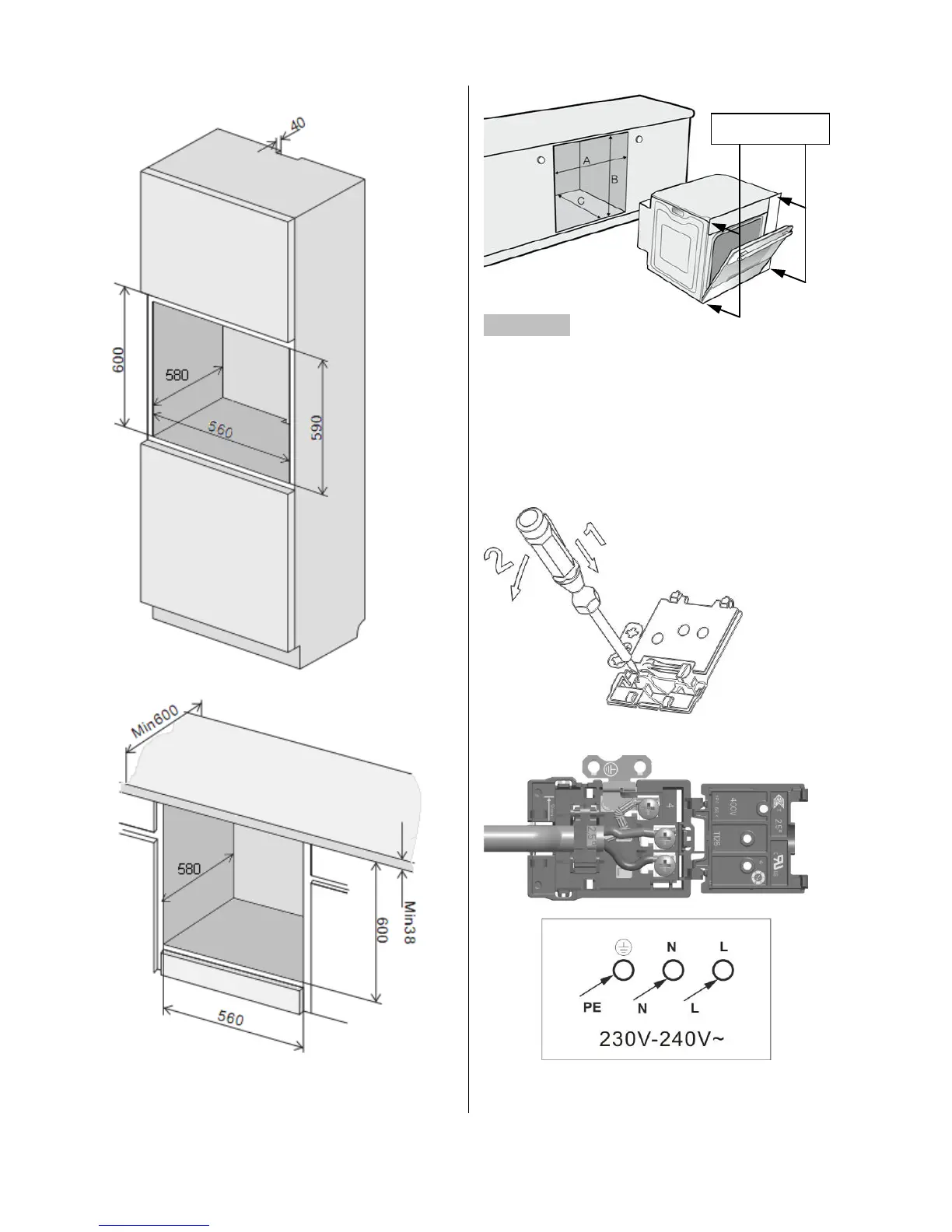

Cut-out dimensions
CAUTION!
Your appliance must be mounted on a flat
surface for the full width and depth of the
product
Connect power supply cord
Open terminal board cover at rear panel of
appliance.
Connect wires as below:
Close the terminal board cover.
