C2 Stereo Compressor- User's guide
C2 4
HOW WOULD I USE THE C2?
The C2 stereo Compressor can be used in 4 main ways:

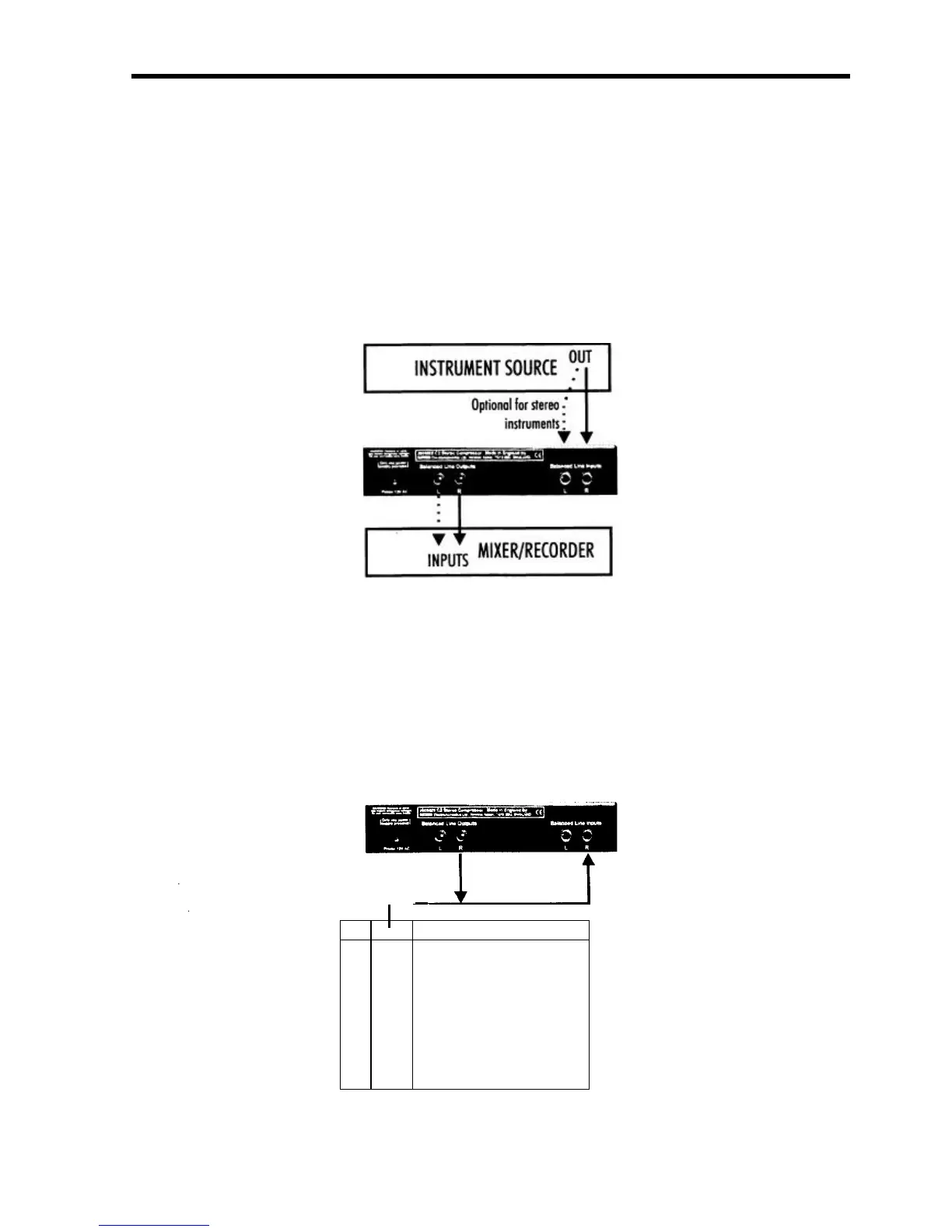

1)As an input compressor for a stereo or mono instrument or source.
To use it in this way, simply plug the instrument into the input of the C2, and plug the output
of the C2 into an input in your mixer or recorder. The C2 has been designed to give
sufficient gain to operate in this way from most outputs of keyboards etc. NOTE. The C2 is
NOT suitable for direct connection ofmicrophones.
2) As a mono or stereo channel 'insert'
For this sort of operation you will have a mixer with channel insert points. These are usually
3 pole jack sockets where the output of the channel is the 'tip' and the returning input is the
'ring' of the jack. You will need a couple of special cables made up as 'insert' splitters so that
the output from the 'tip' can be plugged to the compressor input, and the compressor output
can return to the 'ring'. The C2 can be used either as a single mono channel or in a pair of
channels (or stereo channel).
TRS, Send/Return cable
n
CHANNEL INSERTS
CH3 MIXING CONSOLE
