Models EELR538A and EELR539A
Models EELR540A and EELR541A
Installation, Operation and Maintenance
Page 13
Rev. 08/27/2021
15-18000-IOM-W.doc
PARTS BREAKDOWN

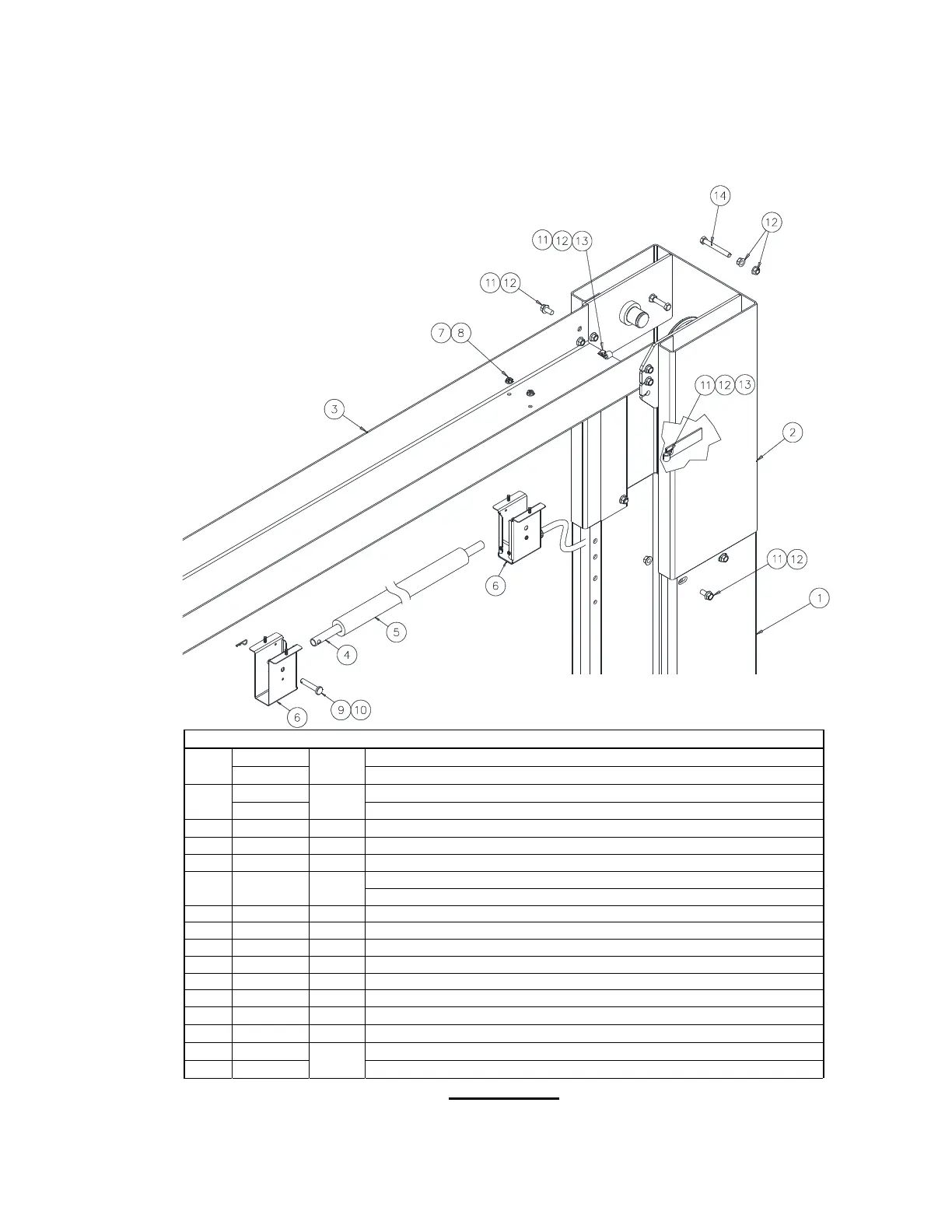

Fig A. Column Extension & Overhead
ITEM #
PART # QTY/LIFT
DESCRIPTION
1
12025
1
POWER COLUMN WELD
12026
IDLER COLUMN WELD
2
12102
2
COLUMN EXTENSION (14’-6” O.A. Ht.)
12022
COLUMN EXTENSION (16’-6” O.A. Ht.)
3
12039 1
OVERHEAD
4
A2067 1
SHUTOFF BAR
5
31129 1
SHUTOFF BAR CUSHION
6
B2064-01 1
LIMIT SWITCH PACKAGE
(INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
7
B2065-3 4
M6 x 14mm PHILLIPS PAN HEAD SCREW
8
B2065-4 4
M6 SERRATED FLANGE HEX NUT
9
B2065-5 1
CLEVIS PIN 10mm x 55 Lg.
10
GJY12-3 1
HAIRPIN COTTER
11
A1153 24
3/8”-16NC HEX. FLG. HD. C.S x 3/4” Lg.
12
A1154 32
3/8”-16NC HEX. FLG. NUT
13
A1122-12 4
HOSE CLAMP (.68”) FOR 3/8” HOSE
14
A2159 4
3/8”-16NC x 3” Lg. HEX HEAD CAP SCREW
12116H
1
COLUMN EXTENSION PACK (14’-6” O.A. Ht.) Items (2, 64, 65, 66, 67)
12117H
COLUMN EXTENSION PACK (16’-6” O.A. Ht.) Items (2, 50, 64, 65, 66, 67)
IMPORTANT
Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local
Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501)
450-1500 for the distributor in your area.
To Next Page
