Models EELR538A and EELR539A
Models EELR540A and EELR541A
Installation, Operation and Maintenance
Page 2
Rev. 08/27/2021
15-18000-IOM-W.doc

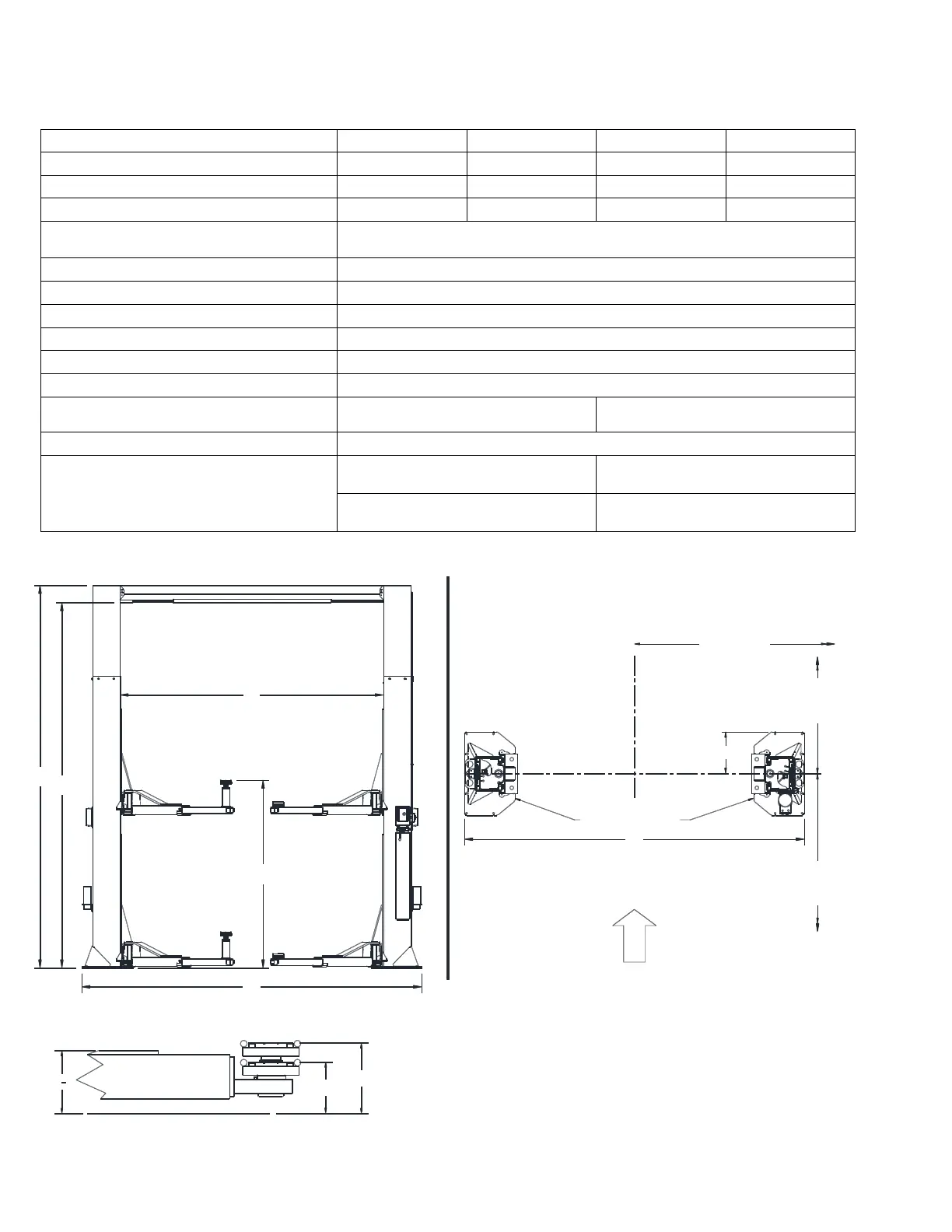

GENERAL SPECIFICATIONS
See Figure 1 EELR538A EELR539A EELR540A EELR541A
A Column Height
174” [14’-6”] 198” [16’-6”] 174” [14’-6”] 198” [16’-6”]
Ceiling Height Required
176” 200” 176” 200”
B Floor to Overhead Switch
167” [13’-11”] 191” [15’-11”] 167” [13’-11”] 191” [15’-11”]
C Max Rise Height w/ Stack Adapters
(Screw Pads Only)
84 9/16” (76 9/16”)
D Screw Pad Height
6 3/16” to 7 9/16"
Stack Adapter Height
4” & 8”
E Overall Width
154 3/4"
F Inside of Columns
119 7/8”
Drive Thru Clearance
104 1/4”
Arm Reach (Min.-Max.)
38 1/2”-62”
* Lifting Capacity
(Hydraulic Pressure at Cap.)
15,000 lbs (3750 lbs. Per Arm)
(2150 psi)
18,000 lbs (4500 lbs. Per Arm)
(2575 psi)
** Rise Time 77 Sec. (approximate)
Motor
2HP, 1PH, 60Hz, 208/230 VAC 3HP, 1PH, 60Hz, 208/230 VAC
Optional – 2HP, 3PH, 50/60Hz,
for 208/230 or 460 VAC
Optional – 2HP, 3PH, 50/60Hz,
for 208/230 or 460 VAC
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.
A
B
F
C
E
DRIVE ON
DIRECTION
7' 8" TO NEAREST
OBSTRUCTION
OR NEAREST WALL
19 REF.
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
COLUMN BASE PLATES
E
REAR OF COLUMN
FRONT OF COLUMN
D
D
Fig 1c- Arm and Pad Height
WITHOUT STACK ADAPTERS
5
3
4
"
Fig. 1a- General Specifications Fig. 1b- Service Bay Layout
A
B
F
C
E
DRIVE ON
DIRECTION
7' 8" TO NEAREST
OBSTRUCTION
OR NEAREST WALL
19 REF.
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
COLUMN BASE PLATES
E
REAR OF COLUMN
FRONT OF COLUMN
D
D
Fig 1c- Arm and Pad Height
WITHOUT STACK ADAPTERS
5
3
4
"
Fig. 1a- General Specifications Fig. 1b- Service Bay Layout
A
B
F
C
E
DRIVE ON
DIRECTION
7' 8" TO NEAREST
OBSTRUCTION
OR NEAREST WALL
19 REF.
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
COLUMN BASE PLATES
E
REAR OF COLUMN
FRONT OF COLUMN
D
D
Fig 1c- Arm and Pad Height
WITHOUT STACK ADAPTERS
5
3
4
"
Fig. 1a- General Specifications Fig. 1b- Service Bay Layout
A
B
F
C
E
DRIVE ON
DIRECTION
7' 8" TO NEAREST
OBSTRUCTION
OR NEAREST WALL
19 REF.
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
168" [14'-0"]
MIN. TO
NEAREST
OBSTRUCTION
COLUMN BASE PLATES
E
REAR OF COLUMN
FRONT OF COLUMN
D
D
Fig 1c- Arm and Pad Height
WITHOUT STACK ADAPTERS
5
3
4
"
Fig. 1a- General Specifications Fig. 1b- Service Bay Layout
