Step One
Step Two

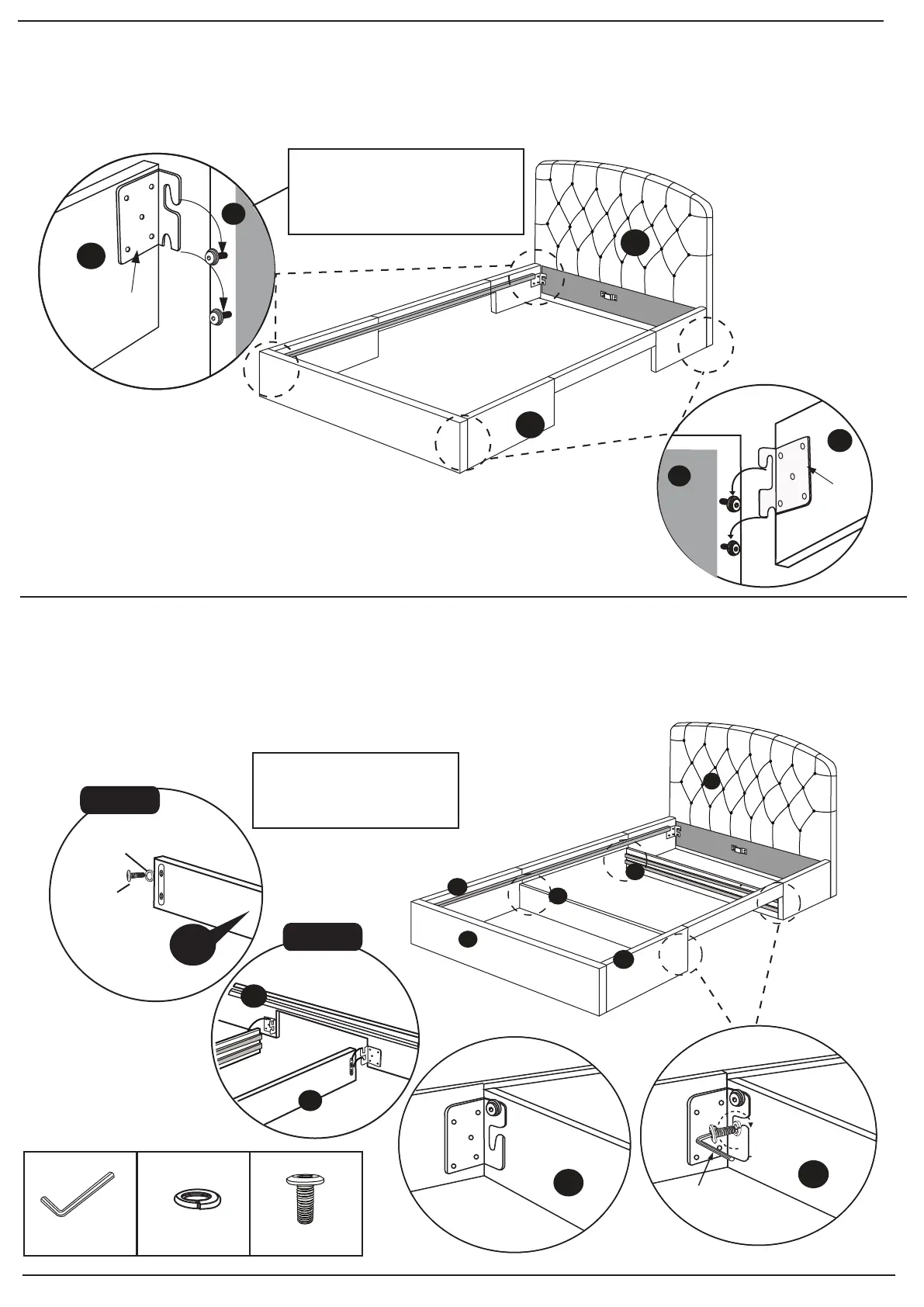

Attach M8 Spring Washer (G) and M8 x 16mm Bolts (H) into the metal fixings onto both Drawer Runner Base (8)
(only for the top side). Insert the Drawer Runner Base (8) inside the bed frame as shown in step 2. Next, attach the
M8 Spring Washer (G) and M8 x 16mm Bolts (H) into the bottom side of metal fixing on the bottom supports.
Loosely tighten the bolts using M5 Allen Key (B).
M8 x 16mm
Bolt x 8
M8 Spring
Washer x 8
B.
M8 x 16mm
Bolt (H)
M8 Spring Washer
(G)
8
STEP 1
8
3
1
3
8
8
3
2
M5 Allen Key x 1
G.
H.
1
2
BRACKET
SIDE RAIL
3
1
BRACKET
SIDE RAIL
2
3
Place metal bracket on Side Rails (3) over pre-inserted bolts in Headboard (1) and Footboard (2) and hand-tighten
to loosely secure parts together. Do not tighten bolts with M5 Allen Key (B) until you have inserted the Centre Rail
in Step Four.
LOOSELY SECURE PARTS
TOGETHER IN ORDER FOR
CENTRE RAIL TO FIT IN
STEP FOUR
LOOSELY SECURE PARTS
TOGETHER IN ORDER FOR
CENTRE RAIL TO FIT IN
STEP FOUR
3
8
8
Fig 2
M5 Allen Key
(B)
STEP 2
