7/10
Step Eight
Attach Upholstered Front Panel (14) to drawer and tighten together using M6 x 40mm Bolt (J). Tighten with
M4 Allen Key (A). Slide drawers into both sides of the bed frame. The bed is now ready for use.
M6 x 40mm x 8
M4 Allen Key x 1
A. J.
14
x2
14

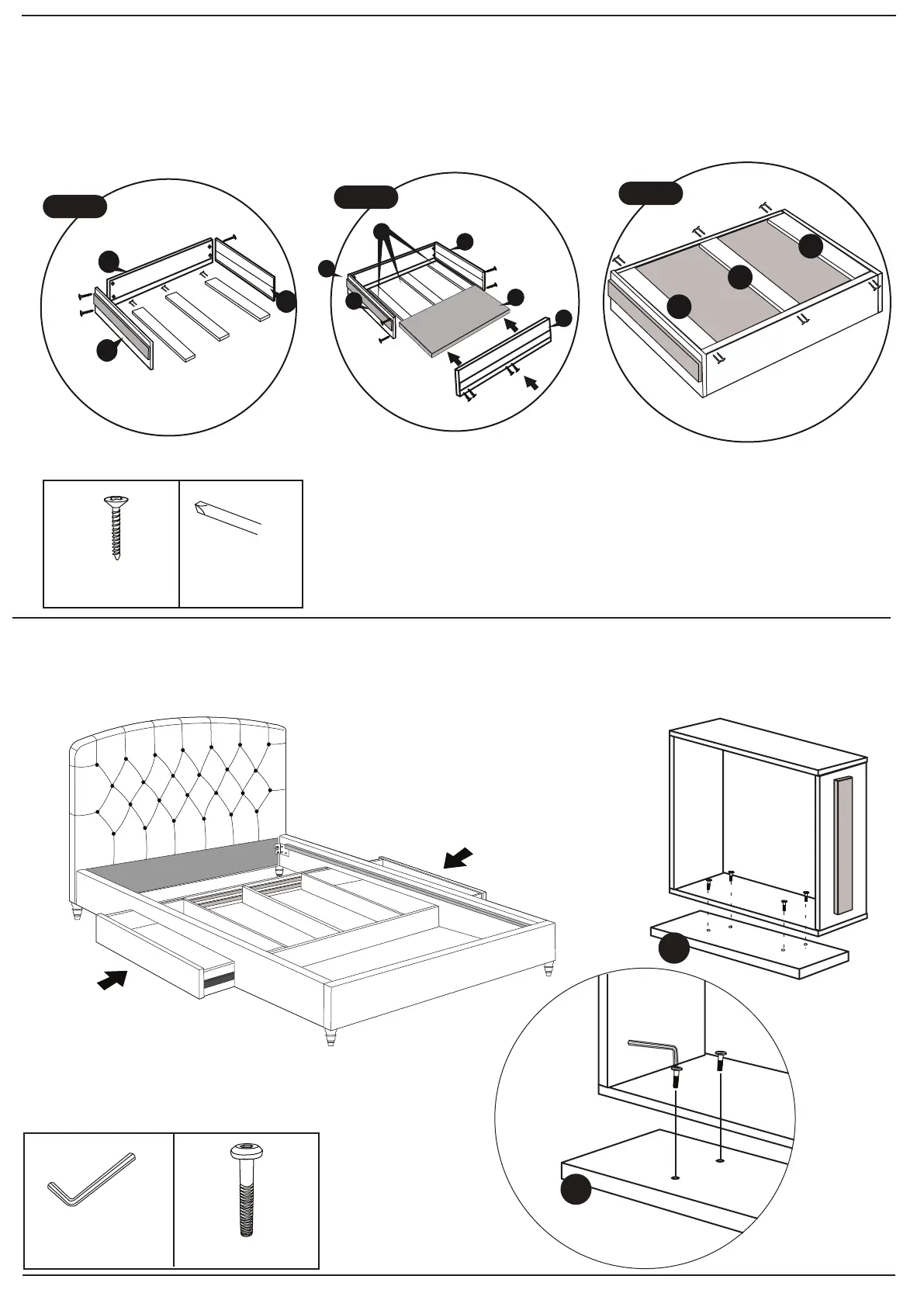

Step Seven
3.5 x 30mm
x 40
Cross Head
Screw Driver
L.
To construct the drawers, fix Drawer Front (11) with one end of each Drawer Bottom Support (15) using
Screws 3.5 x 30mm (L) as shown in Fig.1, then fix the Drawer Sides (10) to the Drawer Front (11). Next,
insert Drawer Bottom (13) and then fix Drawer Back (12) using Screws 3.5 x 30mm (L) as shown in Fig.2.
Finally, secure the other end of the Drawer Bottom Support (15) to the other side of the drawer and tighten
using a cross head screw driver.
(x2)
(x2)
11
11
10
12
13
15
10
(x2)
10
10
15
15
15
Fig. 1
Fig. 2
Fig. 3
To Next Page
