Item Description
K1
CH - Central Heating +
K2
CH - Central Heating -
K3
Installer information
K4
Reset
K5
Summer/Winter mode
K6
DHW - Domestic Hot Water -
K7
DHW - Domestic Hot Water +

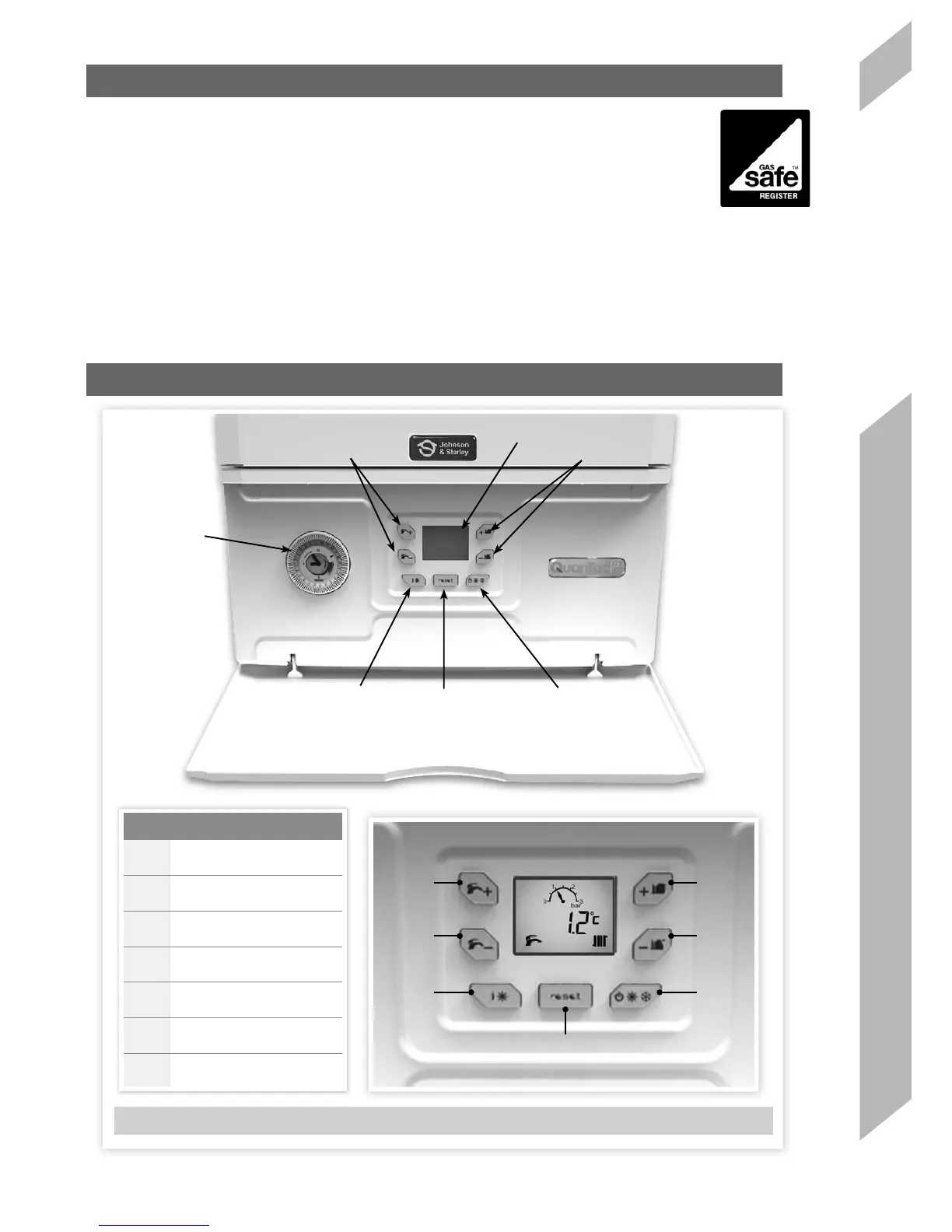

FIGURE 1. QUANTEC USER CONTROL PANEL
TIME
CONTROL
(optional)
DOMESTIC HOT
WATER
LED DISPLAY
CENTRAL
HEATING
FUNCTION
MODES
RESET
BUTTON
INSTALLER
MODE
1. GENERAL INFORMATION
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES BE INSTALLED BY
COMPETENT PERSONS, (i.e. GAS SAFE REGISTERED INSTALLERS. GAS SAFE MEMBERSHIP
ENQUIRIES - TEL: 0800 408 5500) IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND
USE) REGULATIONS (CURRENT EDITION). FAILURE TO COMPLY WITH THESE REGULATIONS MAY
RESULT IN PROSECUTION.
Part of the installation and commissioning of this appliance is related to instructions for use by the heating
engineer to the user where specific requirements may occur.
The QuanTec is a wall mounted, room sealed, condensing combination boiler, featuring full sequence
automatic spark ignition and fan assisted combustion. On the QuanTec HR a recuperator is fitted within the
boiler and preheats the incoming cold DHW for additional energy savings. Due to the high efficiency of the
boiler, condensate is produced from the flue gases and this is drained to a suitable disposal point through a
plastic waste pipe at the base of the boiler. A condensate ‘plume’ will also be visible at the flue terminal. The
QuanTec HR are combination boilers providing both central heating and instantaneous domestic hot water.
2. THE BOILER CONTROL PANEL
