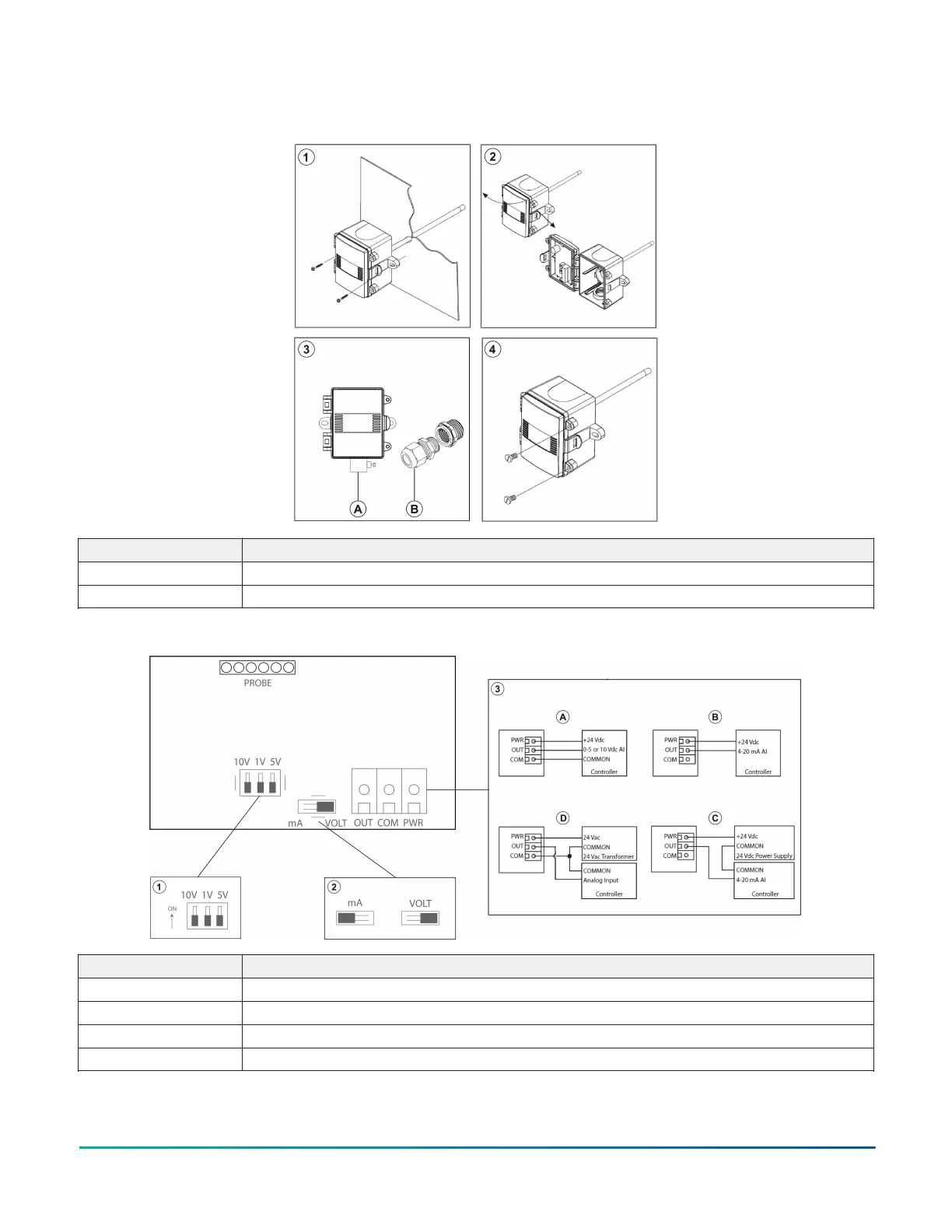

Figure 3: Mounting the HT-69 Duct Probe RH Transmitter
Callout Description
A EMT connector
B Thread adapter and cable gland fitting
Figure 4: Wiring of the HT-60 Duct Probe Transmitter
Callout Description
A Wiring for output signal and 24 VDC power from controller
B Wiring for 4 mA to 20 mA loop-powered output and external 24 VDC power from controller
C Wiring for 4 mA to 20 mA loop-powered output and external 24 VDC external power supply
D Wiring for all output signals and external 24 VAC power transformer
HT-69020NP-0, HT-69030NP-0 Duct Probe RH Transmitter Installation Guide 3
