M9300 Series Switch Kits Installation Guide
4

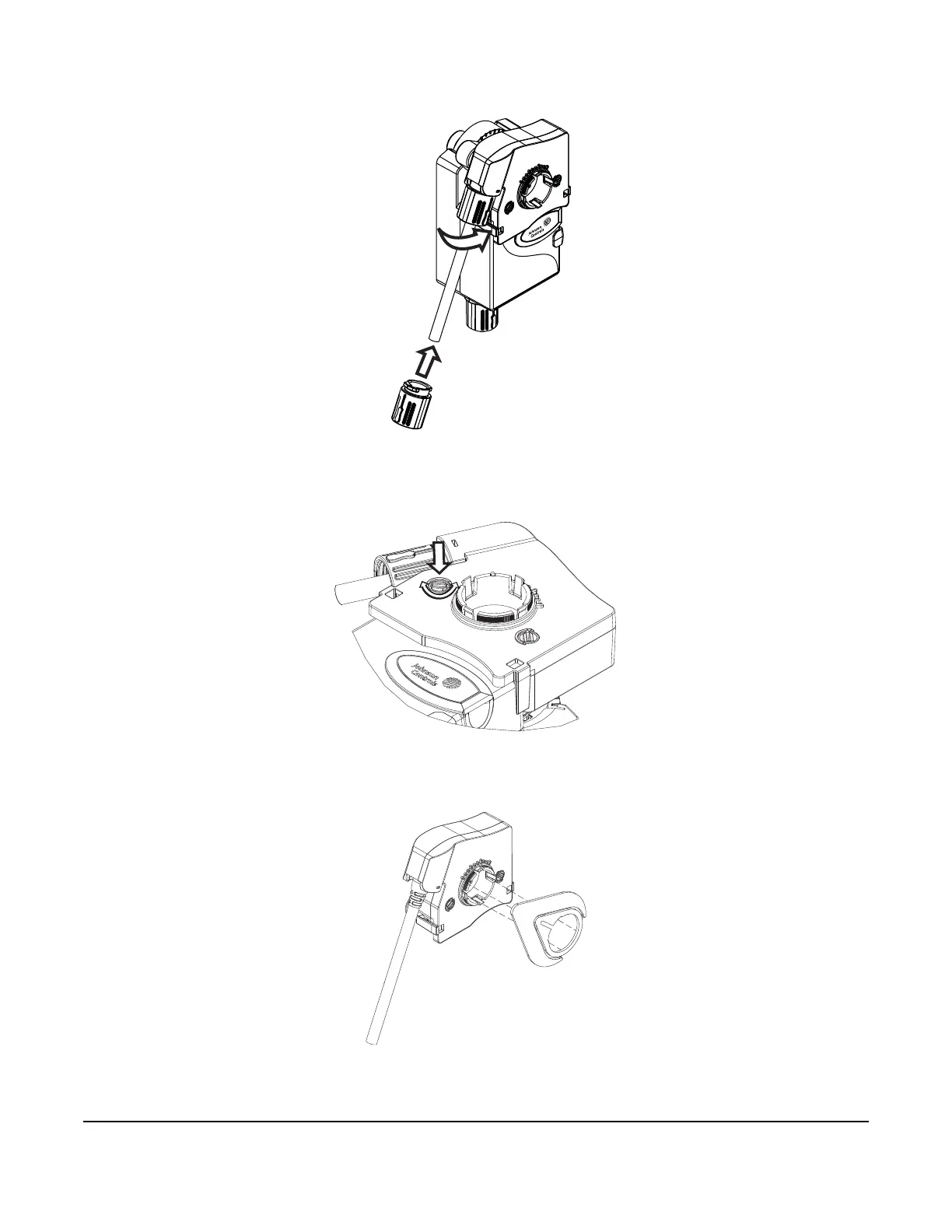

Figure 6: Securing the conduit adaptor to the switch kit
3mm
(3)
(2)
(1)
Figure 7: Adjusting the dials for the switch kit
(1)
(2)
Figure 8: Attaching the plastic pointer
