Network Communications—N2 Communications Bus
Figure 13 shows the branch configuration, with multiple repeaters wired
together and a separate branch of N2 devices off each repeater.
N2 Bus
NCU
NEU
NEU
ASC
Repeater
Repeater
Repeater
NEU
Repeater
(1000 ft)
(1000 ft)
(500 ft)
(2500 ft)
(3000 ft)
(1000 ft)
(1000 ft)
(5000 ft)
(4000 ft)
(5000 ft)
NEU
NEU
REPEATC2
Note: Branches can be at
Side A or B.
EOL Out
A: EOL Out
B: EOL In
A: EOL Out
B: EOL In
A: EOL In
B: EOL In
A: EOL In
B: EOL In
EOL Out
EOL In
EOL In
EOL In
EOL Out
NCM's
EOL In
305 m
305 m
762 m
914 m
305 m
305 m
1524 m
1219 m
152 m
1524 m

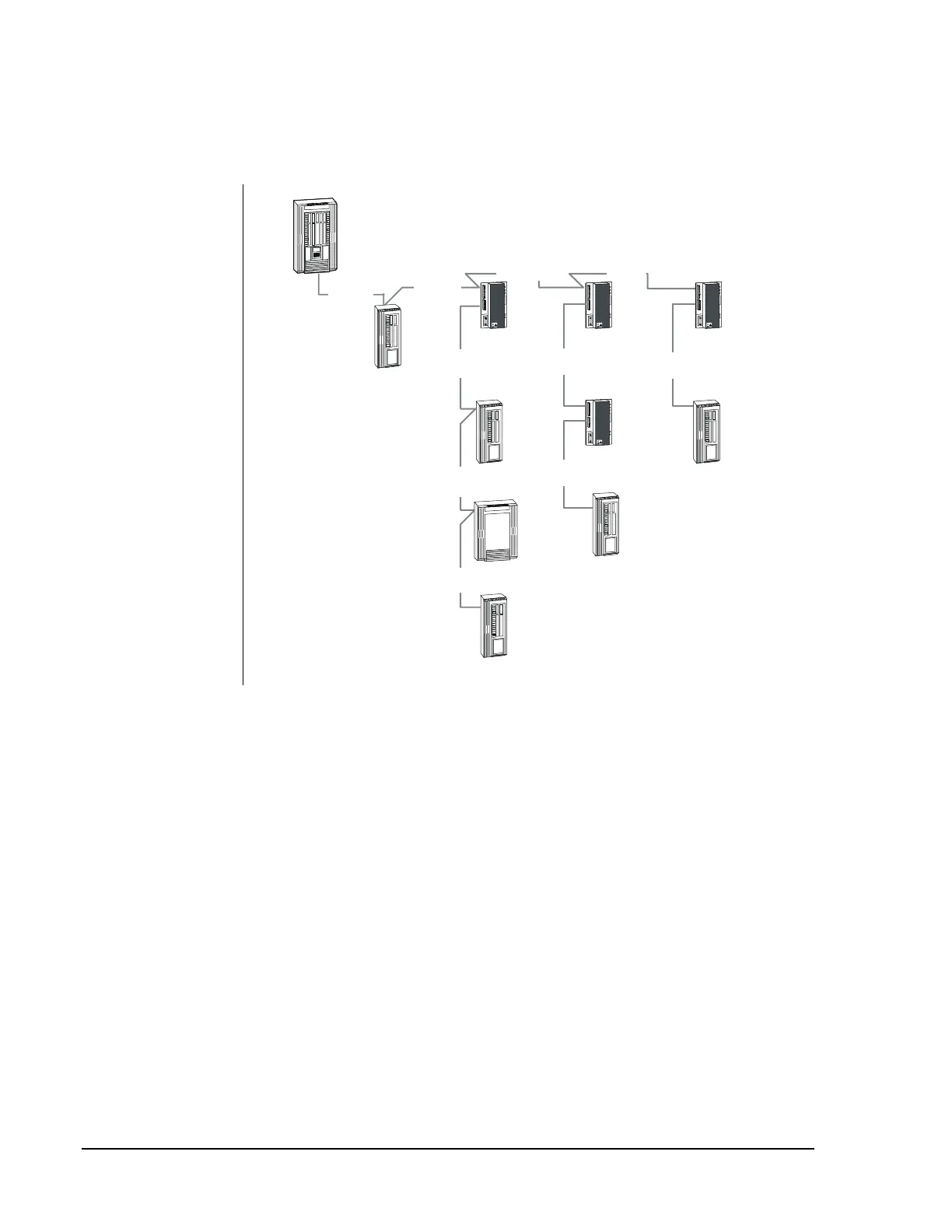

Figure 13: Network Branch Configuration
