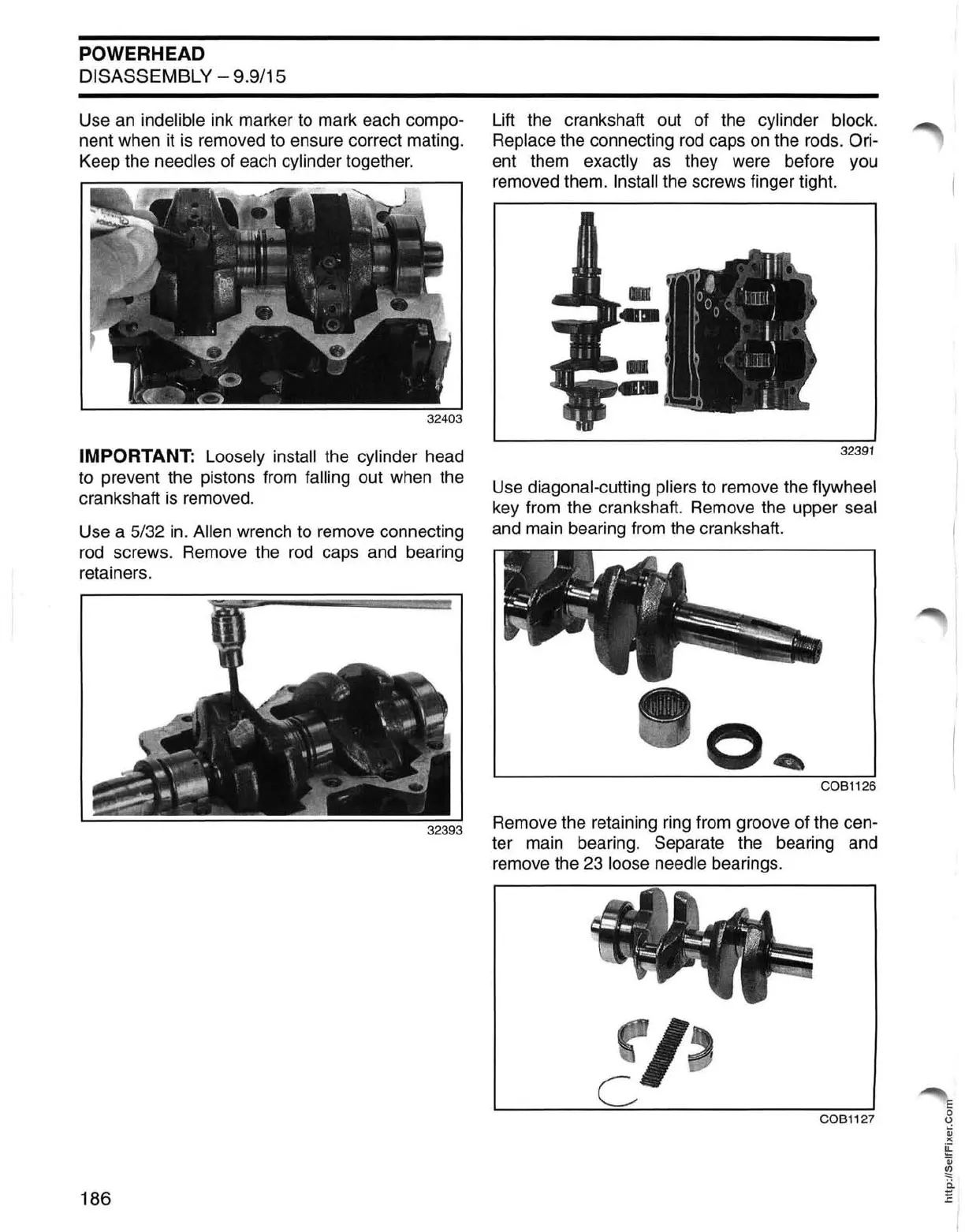

POWERHEAD
DISASSEMBLY - 9.9/15
Use
an
indelible ink marker to mark each compo-
nent when it
is
removed
to
ensure correct mating.
Keep the
needles of each cylinder together.
32403
IMPORTANT: Loosely install the cylinder head
to
prevent the pistons from falling out when the
crankshaft
is
removed.
Use a 5/32
in.
Allen wrench to remove connecting
rod
screws. Remove the
rod
caps and bearing
retainers.
186
Lift the crankshaft out of the cylinder block.
Replace
the connecting
rod
caps
on
the rods. Ori-
ent them exactly
as
they were before you
removed them.
Install the screws finger tight.
32391
Use diagonal-cutting pliers to remove the flywheel
key from the crankshaft. Remove the upper seal
and main bearing from the crankshaft.
COB1126
Remove the retaining
ring
from groove of the cen-
ter main bearing. Separate the bearing and
remove the 23
loose needle bearings.
COB1127
E
o
o
~
><
~
OJ
~
i:i
E
I
