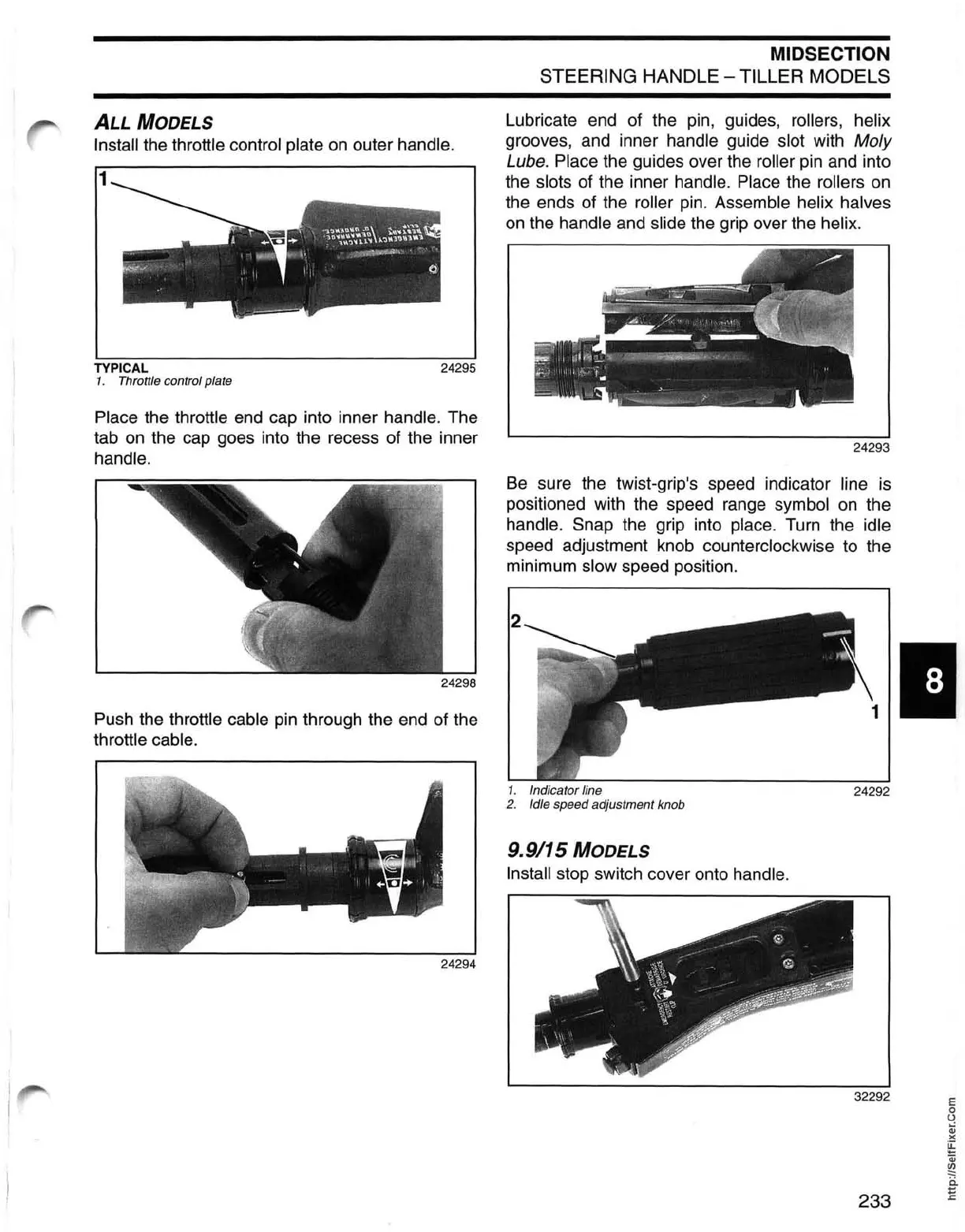

Install the throttle control plate on outer handle.
TYPICAL 24295
1. Throttle control plate
Place the throttle end cap into inner handle. The
tab
on the cap goes into the recess of the inner
handle.
24298
Push the throttle cable pin through the end of the
throttle cable.
MIDSECTION
STEERING
HANDLE - TILLER MODELS
Lubricate end of the pin, guides, rollers, helix
grooves, and inner handle guide slot with Moly
Lube. Place the guides over the roller pin and into
the slots of the inner handle. Place the rollers on
the ends of the roller pin. Assemble helix halves
on the handle and slide the grip over the helix.
Be sure the twist-grip's speed indicator line is
positioned with the speed range symbol on the
handle. Snap the grip into place. Turn the idle
speed adjustment knob counterclockwise to the
minimum
slow speed position.
1. Indicator line
24292
2. Idle speed adjustment knob
9.9/15 MODELS
Install stop switch cover onto handle.
233
