I
(j)

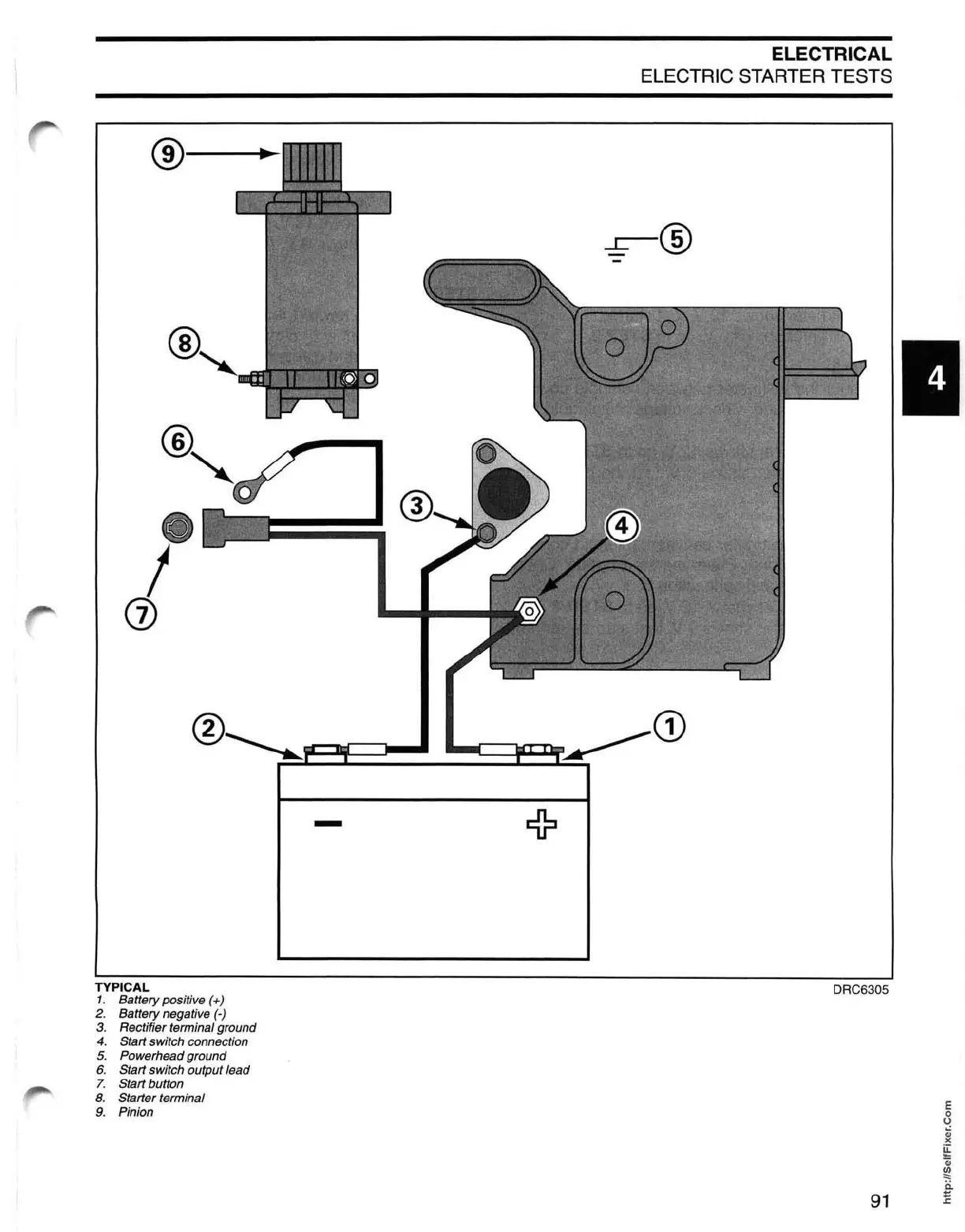

TYPICAL
1. Battery positive (+)
2. Battery negative (-)
3. Rectifier terminal ground
4.
Start switch connection
5. Powerhead ground
6.
Start switch output lead
7.
Start button
8.
Starter terminal
9. Pinion
-
ELECTRICAL
ELECTRIC
STARTER
TESTS
DRC6305
91
