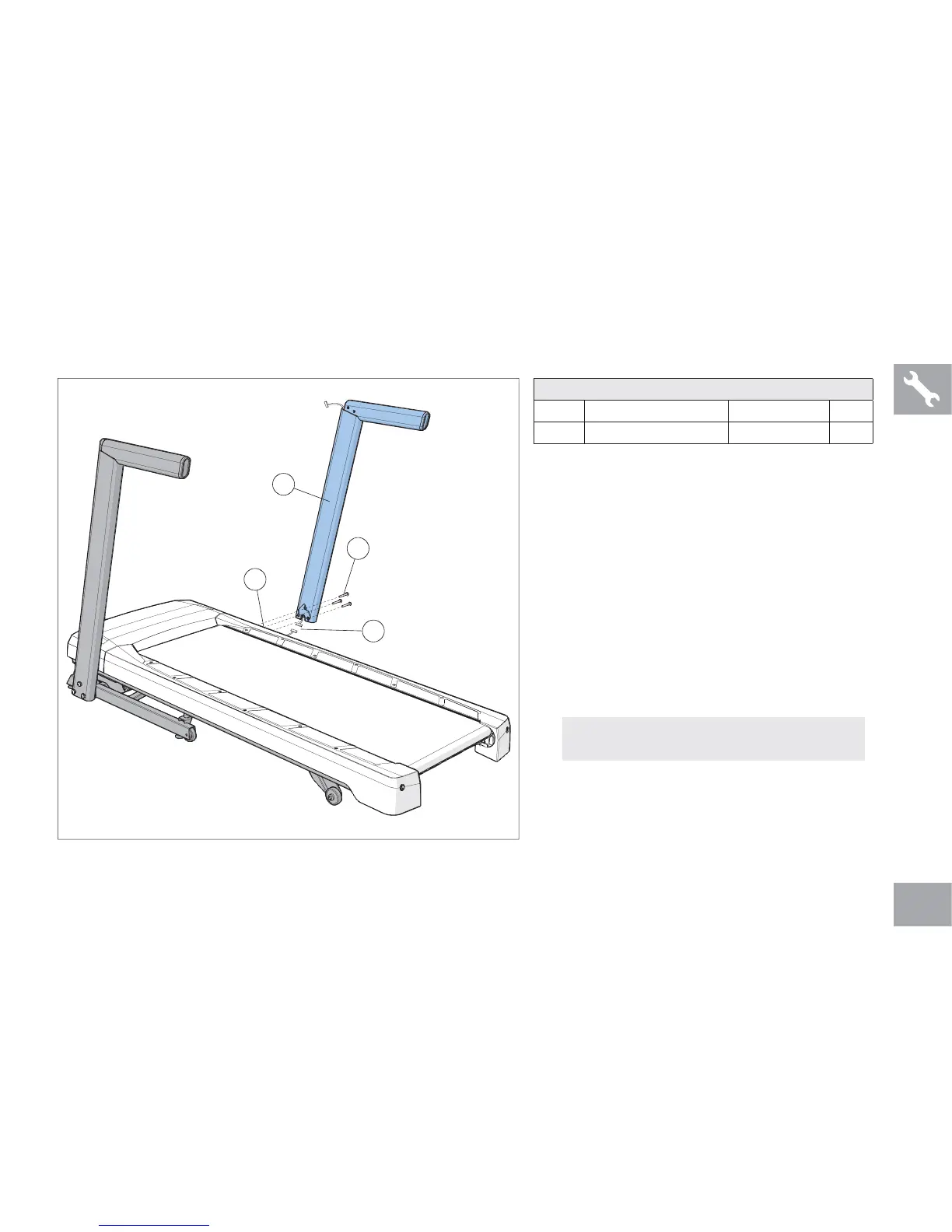

A Pull the BASE CABLE (3) away from the
treadmill base frame. Connect the CONSOLE
CABLE (3) from the MAIN FRAME (2) to the
CONSOLE CABLE (3) in the bottom of the
RIGHT CONSOLE MAST (4). The other end of
the CONSOLE CABLE should be located at the
top of the mast.
B Open HARDWARE FOR STEP 2.
C Attach RIGHT CONSOLE MAST (4) to MAIN
FRAME (2) using 3 BOLTS (A).
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
A HEX SOCKET BOLT M8X1.25PX60L 3
ASSEMBLY STEP 2
NOTE: Be careful not to pinch the console
cable while attaching the right console mast.
