3.Installation of outdoor unit
3-4 Hoisting of outdoor unit
1) No packing material can be removed during hoisting, hoisting shall be made by two ropes of 8cm
above bound on the package, and the machine must be balanced and hoisted safely and reliably. If there is no
package or the packing material is broken, some backing board or packing material shall be used for
protection.
2) The outdoor units shall be handled and hoisted vertically within 15°, and safety is the most important
during handling and hoisting.
3) The unit center of gravity is not in the center, so please take care when lifting.
4) Never hold the housing suction inlet, or it will deform.
3-5 Installation and maintenance space of outdoor unit
①
②Prevent any abnormal noise cause by the foundation.
2) Foundation type
①Steel structure

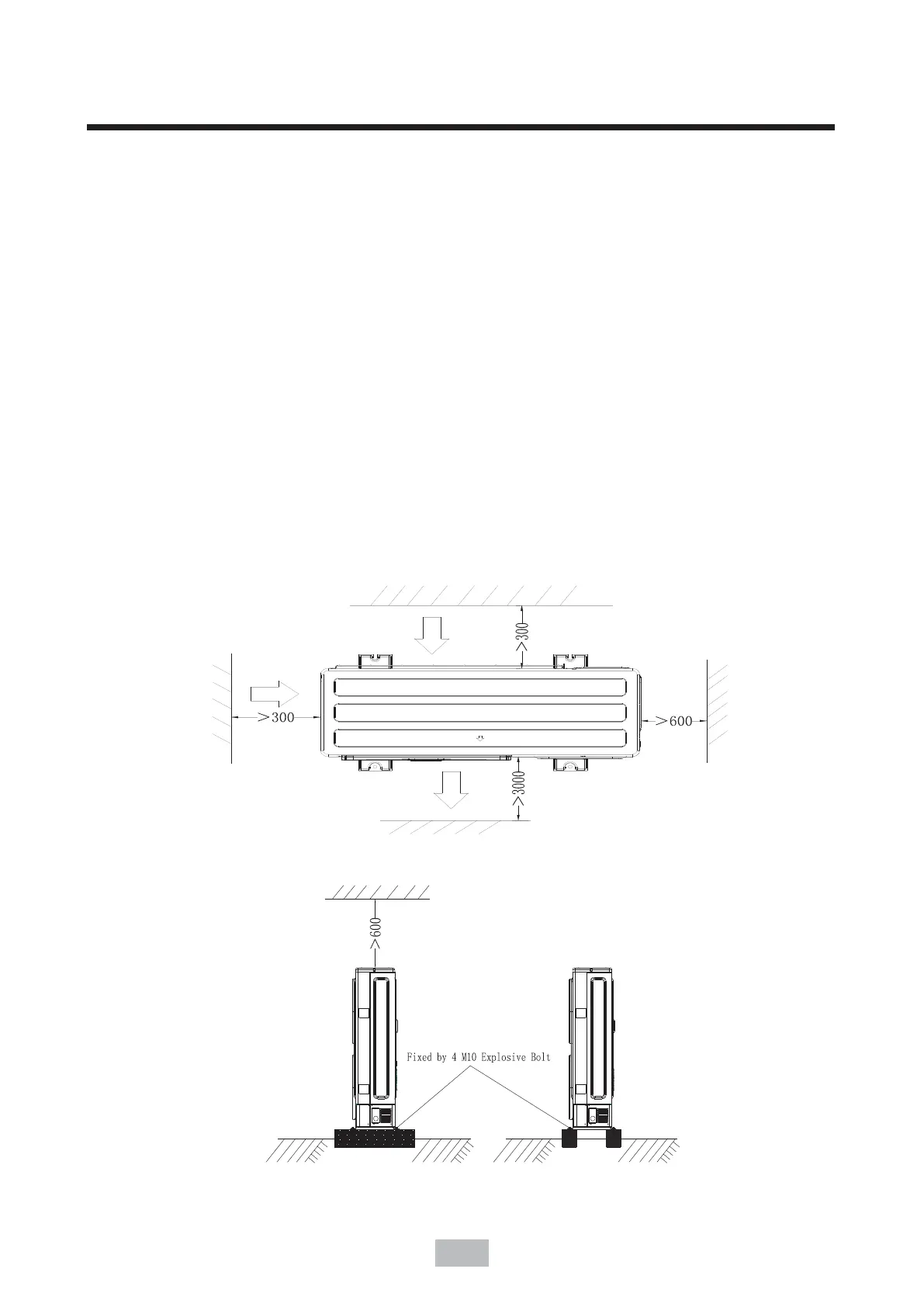

②Concrete structure (shown as the figure)
1) Provide a firm and adequate foundation to:
Protect the outdoor machine from sinking;
Figure 3-3
Figure 3-4
5
Surface of
maintenance
circuit
and
pipline
Air biowing face
Air
suction face
