OG2:3
RT655 Operator’s Guide
Johnston Sweepers Limited
Chapter - Controls
Page Issue A

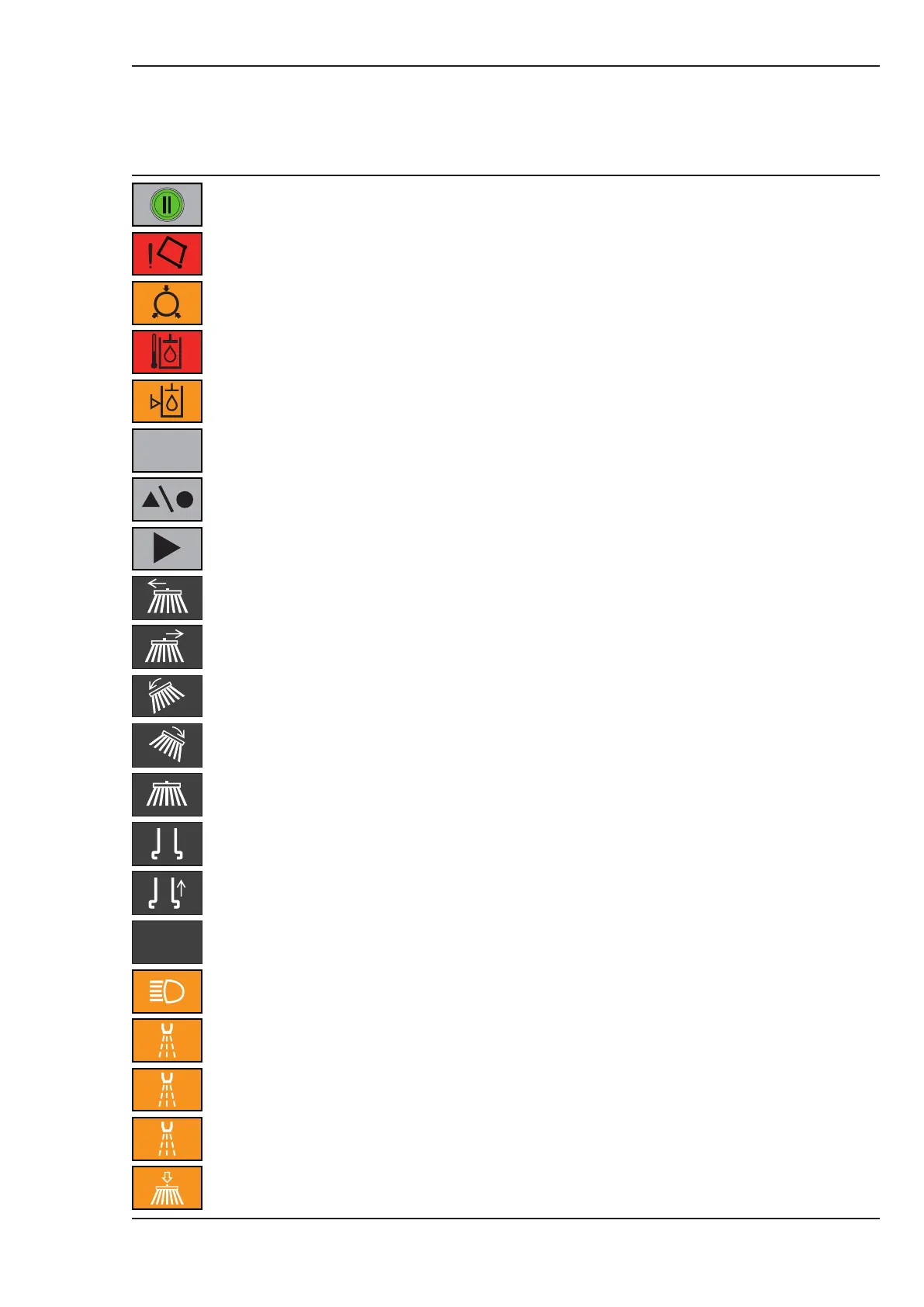

Sweeping Controls
Symbol ID Description
A Programme Button; ON/OFF switch illuminates when pressed and suspends
all sweeping and parks brushes. Pressing again reactivates previous settings.
B1 ‘Hopper Raise’ - red warning lamp and buzzer.
B2 ‘Low Air Pressure’ - amber warning lamp and buzzer.
B3 Hydraulic Oil ‘Temperature’ - red warning lamp.
B4 Hydraulic Oil ‘Low Level’ - amber warning lamp and buzzer.
15hrs
B5 Rear Broom hours worked/clock.
B6 Push button to select hourmeter reading/clock - cancels after 10 seconds.
B7 Advance button - advances clock time when in clock setting mode.
C1 *LH Variabrush - spring centred switch moves brush out or in.
C2 *RH Variabrush - spring centred switch moves brush out or in.
E1/E2 LH/RH Gutter Broom 2 position switch - stowed/active illuminated when
selected.
D1 * LH Rotatilt - spring centred switch; alters angle of Gutter broom to suit road
camber.
D2 * RH Rotatilt - spring centred switch; alters angle of Gutter broom to suit road
camber.
J1/J2 LH/RH worklamp; 2 position switch OFF/ON. Illuminated when selected.
K1 Front Spray Bar. 2 position switch OFF/ON illuminated when selected.
L * Powathrust; - ON/OFF. Increases Channel Brush ground pressure to
preset level when on. Without the need to re-adjust the in cab regulator.
H Blank.
F Pick-up head and water sprays; 3 position switch - stowed/active/water
sprays. Illuminated when selected.
G Pick-up head hop; 2 position - push to make stowed / CLOSED / OPEN.
K3 Hopper Spray. 2 position switch OFF/ON illuminated when selected.
K3 Gutter Spray. 2 position switch OFF/ON illuminated when selected.
