OG2:5
RT655 Operator’s Guide
Johnston Sweepers Limited
Chapter - Controls
Page Issue A

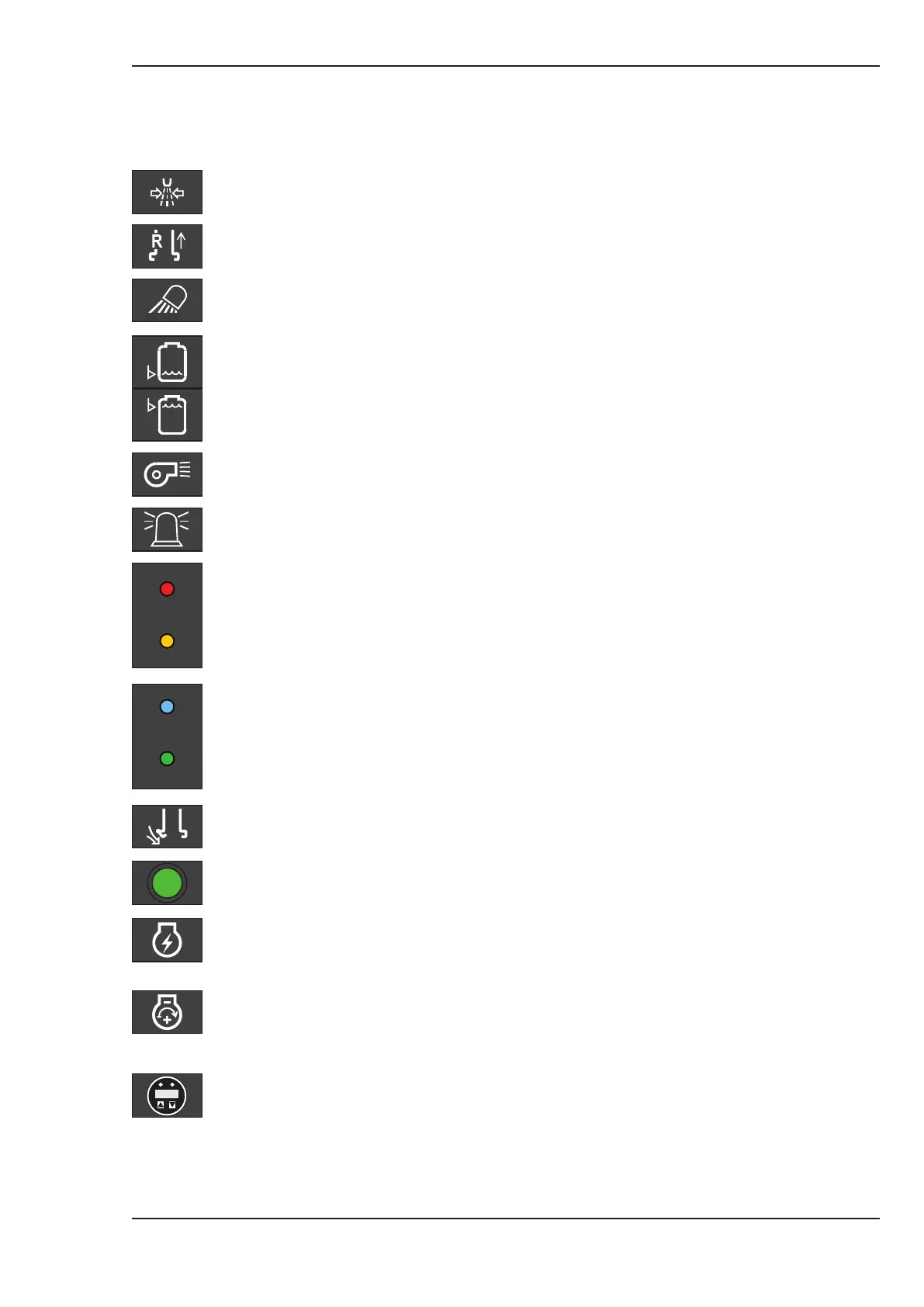

Sweeping Controls
Symbol ID Description
M Supawash option; 2 position switch - OFF/ON illuminated when selected.
Q Powasave – 2 position switch – operates with gutterbroom. Overrides pre-
set pressure level to allow maximum down pressure on brush.
U VEG opening switch; 3 position sprung centred switch controls an electrical
actuator CLOSED / OFF / OPEN.
W Ignition switch - 2 position - OFF/ON.
NB : Only beacons will operate when switch is off.
X Engine throttle control; 3 position spring centred switch
REDUCE/OFF/ INCREASE.
R Beacons; 2 position switch - OFF / ON. illuminated when selected.
N Hood reverse pick-up select switch; 2 position switch - OFF/ON.
O Rear Worklamp; 2 position switch OFF/ON illuminated when selected.
P1 Water tank low level indicator - illuminated when tank empty.
P2 Water tank high level indicator - illuminated when tank is full.
V Engine crank button - push to crank. Flashes to indicate engine fault
requests.
Src:Eng
SPN00000
Y CAN FED - John Deere, Diagnostics, Engine hours, Engine RPM, Coolant
Temperature, John Deere Fault codes.
S1 VEG - position 1. Regen Mode - Colour Red
S2 VEG - position 2. 60% Regen - Colour Yellow
T1 VEG - position 3. 30% Regen - Colour Blue
T2 VEG - position 4. Vacuum Mode - Colour Green
*Denotes Optional Equipment
