RT655 Operator’s Guide
OG6:16
Chapter - Routine Maintenance
Page Issue A
B
D
H
4
5
6
GREASE
Refer to MaintenanceSchedules
forlubrication intervals
LUBRICATIONDIAGRAM
2
(i)
3
RTOG. 054
G
A
C
E
F
1
1 Body prop - Ensure autoprop has engaged when body is raised.
2 Filter regulator unit (FR) - (i) Isolation valve.
3 Water pump.
4 ‘Z’ drive gearbox.
5 Body tip cylinders.
6 Supawash pump - option.

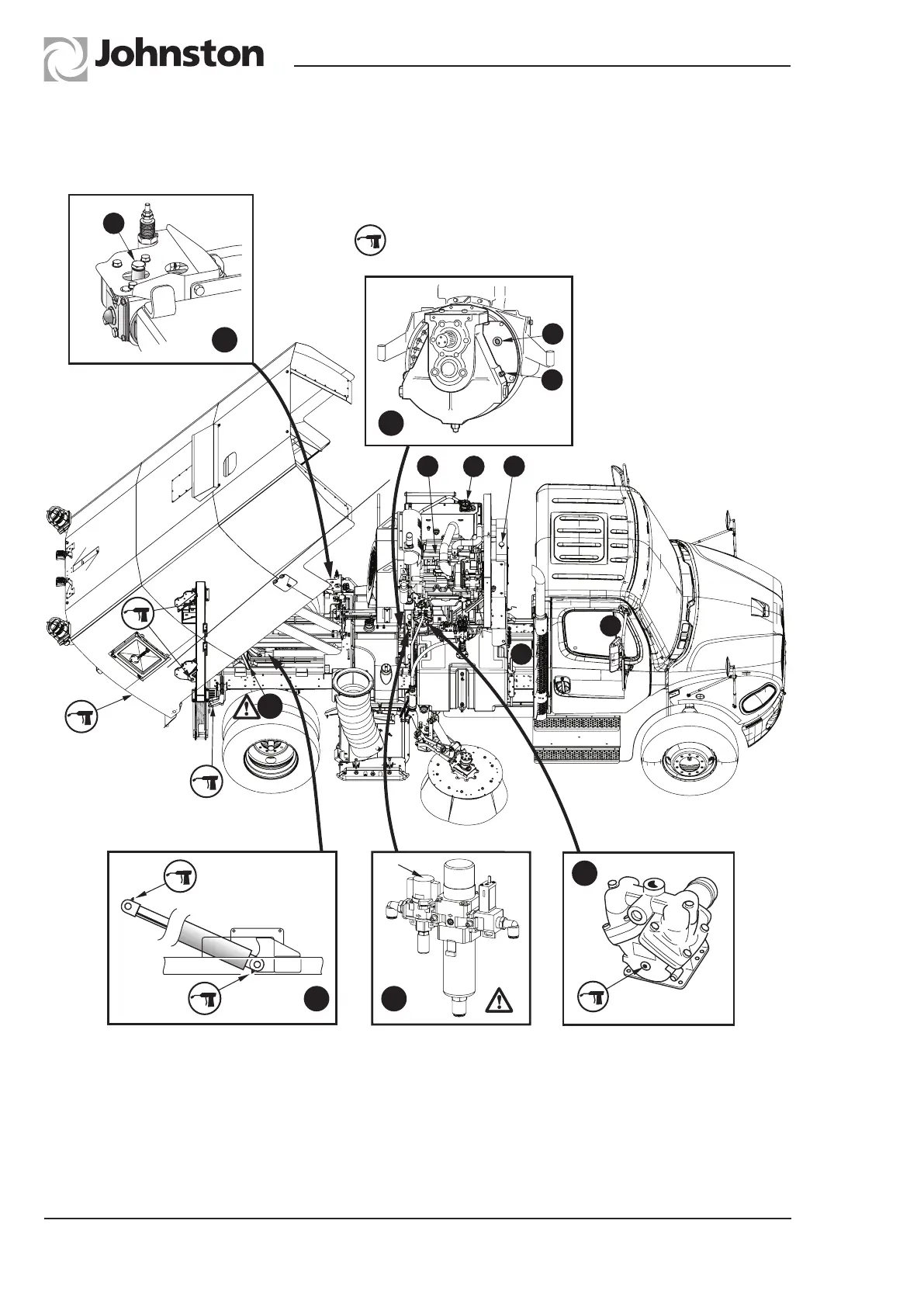

LUBRICATION DIAGRAM - RH SWEEP MACHINE SHOWN
