Jojo QB60 - Performance Curve and Pump Diagram; Performance Curve; Pump Diagram

0302
JoJo pumps purchased from an approved JoJo retail outlet and/or distributor carry a 1-year
warranty from the date of purchase. In order to maintain your warranty, always ensure you install,
operate and maintain the pump as per the instructions provided in this manual.
Detailed T’s and C’s, as well as return policies and procedures are in the back of this manual.
Performance table
Pump specifications
Pump model
Motor power
Max. flow
Max. pressure
Max. fluid temperature
Max. ambient temperature
Max. suction lift
QB60
0.37kW
34 lt/min
3.8 bar
40 ˚C
40 ˚C
8m
Flow control switch
Model
Input voltage
Frequency
Current
Max. power
Protection
SKD-2
220V
50 Hz
10 A
1500W | 2HP
IP 44

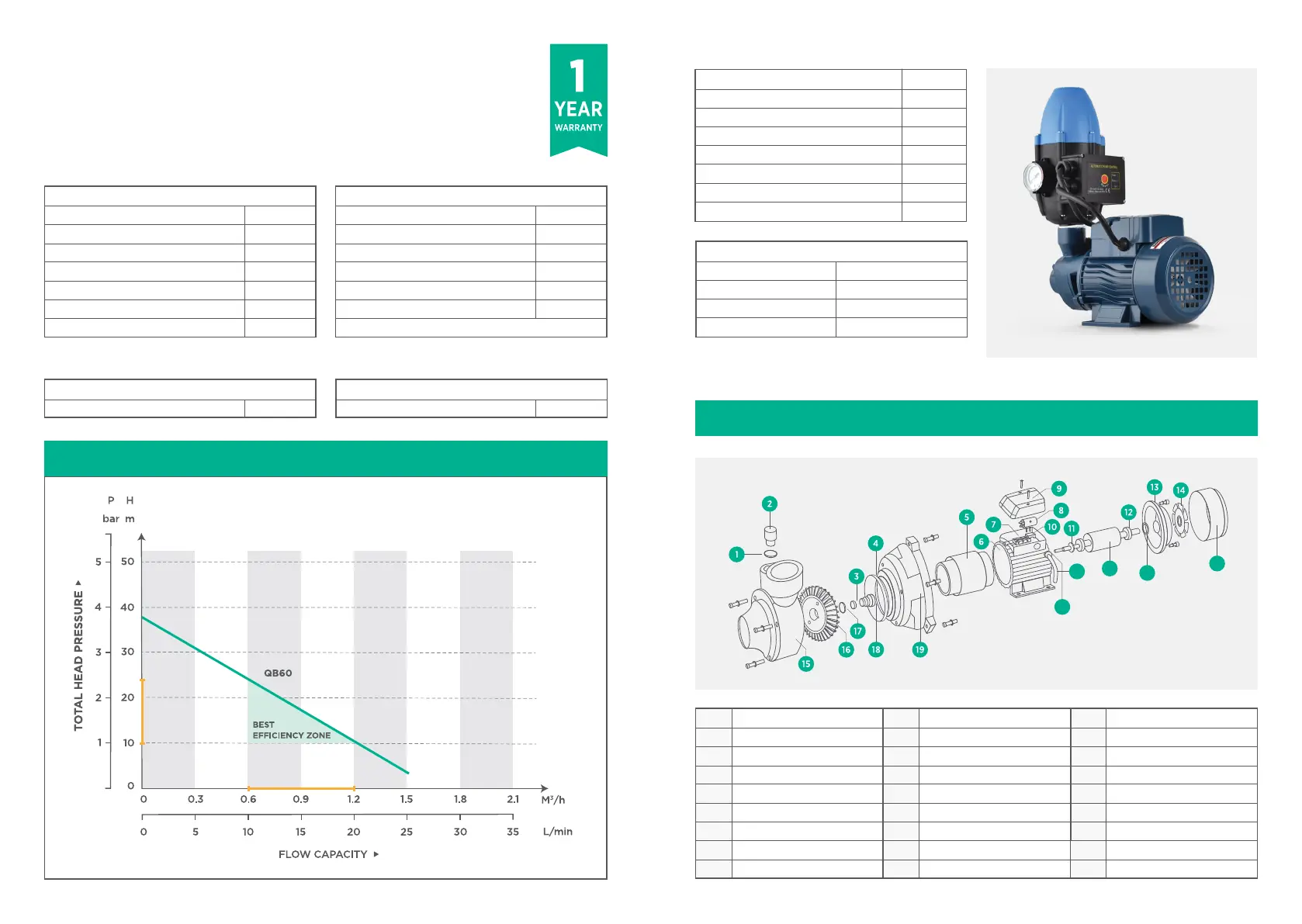

PERFORMANCE CURVE
Best eciency range
Flow range
Lt/min
10 to 20 lt
Pressure range
Bar
1 to 2.4 bar
1-year Quality Warranty
No.
17
18
19
20
21
22
23
24
Description
Shaft circlip
Mechanical seal
Motor bracket
Cable protector
Cable
Rotor
Fan cover
Wave washer
No.
9
10
11
12
13
14
15
16
Description
Terminal cover
Cable fixer
Flinger
Bearing
End cover
Fan
Pump body
Impeller
PUMP DIAGRAM
No.
1
2
3
4
5
6
7
8
Description
O-Ring
Brass air vent screw
Flat washer
O-Ring
Stator
Stator housing
Terminal block
Capacitor
Additional pump details
Inlet and outlet size (inches)
Start-up amps (single phase)
Running amps (single phase)
Weight
Dimensions:
Length
Width
Height
1”
6.2 A
1.9 A
9 kg
280 mm
140 mm
395 mm
Construction characteristics
Pump body
Impeller
Motor shaft
Mechanical seal
Cast iron
Brass
Stainless steel 304
Ceramic-graphite
20
21
22
23
24
