Item Part No. Qty. Description
1 PH-4027275-EA 1 Extension Cord, 20ft
2 PH-4027257-EA 1 Heat Exchanger
3 PH-4028225-EA 1 Evaporator
4 PH-4029176EA 1 Compressor
5 PH-1970010-EA 1 Relay
6 PH-4029606-EA 1 55 uFd Capacitor
7 PH-4033031-08-EA 1 20 uFd Capacitor
8 PH-4027272-EA 2 Feet
9 PH-4024078-EA 1 Duct Collar
10 PH-4027264-EA 1 Blower
11 PH-4029510-EA 1 Filter/Drier
12 PH-4022672-EA 3 Capillary Tubes
13 PH-4023649-EA 1 Condensate Pump
14 PH-4022254-EA 1 Accumulator
15 PH-4027278-EA 1 Thermistor
16 PH-4021475-EA 1 Filter, 2”x16”x20”
17 PH-4027259-EA 1 Top
18 PH-4027253-EA 1 Front
19 PH-4026304-EA 2 12” Wheel
Item Part No. Qty. Description
20 PH-4026311-EA 1 Axle
21 PH-1284404-EA 2 Cotter Pin
22 PH-4027273-EA 1 Skid Plate
23 PH-4023080-EA 1 Coupling Insert, .38 Tube
24 PH-4027258-EA 1 Plug Receptacle
25 PH-4027172-EA 1 Humidity Controller
26 PH-4021495-EA 1 Knob
27 PH-4026094-EA 1 Handle
28 PH-4027254-EA 1 Control
29 PH-1912500-EA 1 9V Battery
Items listed below are not shown
PH-4028237-EA 1 Condenser Coil
PH-4024910-EA 1 Coupling Body, .25 Tube
PH-4027277-EA 1 Coupling Insert, .25 tube
PH-4024916-EA 1 Drain Hose (.25 ID x 33’ long)
PH-1096008-EA 6 Front Panel Screw, 1/4-20 x 3/4
PH-1205473-EA 6 Front Panel Retaining Nut, 1/4 –20
6 Service Parts

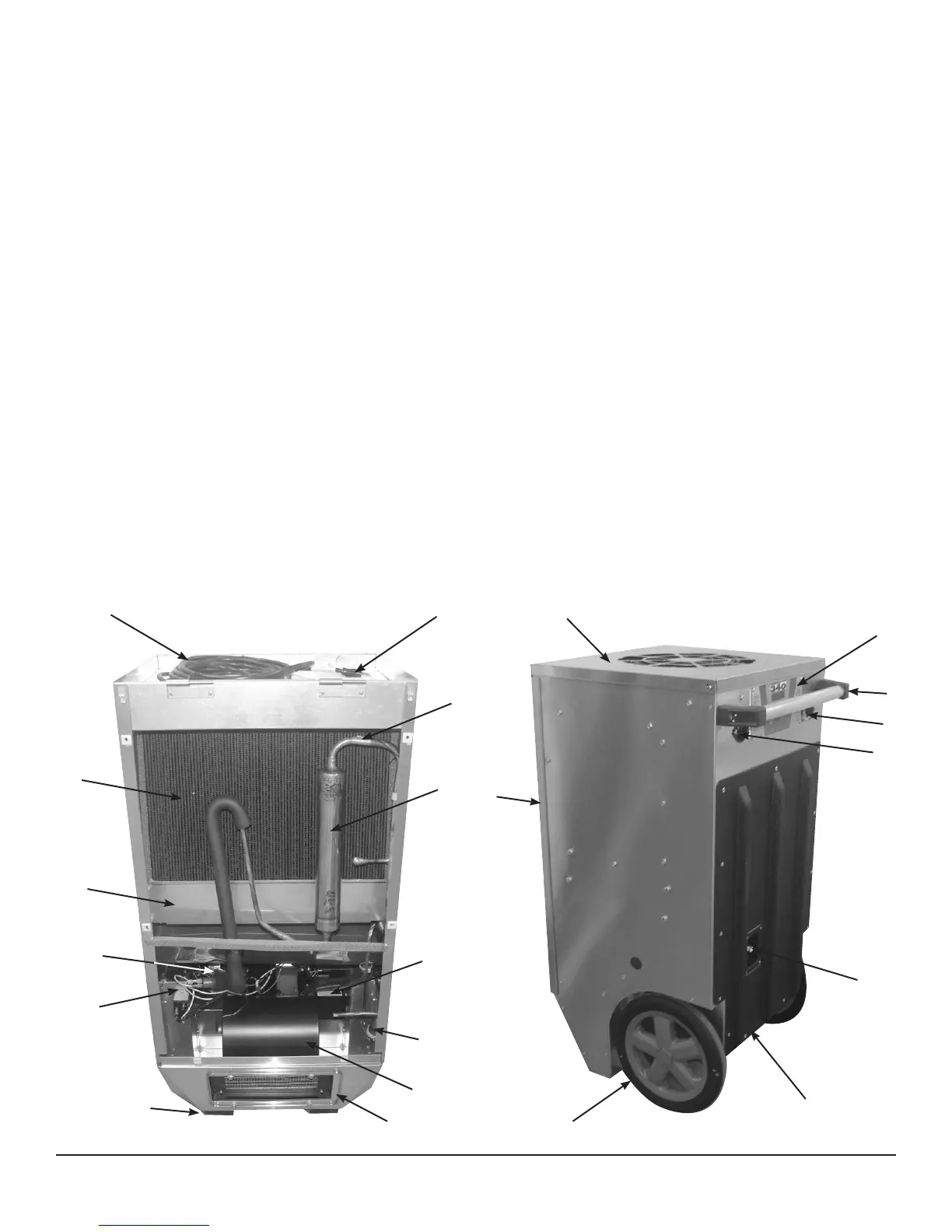

Figure 4
