Press out the throttle control pin (C) with the help
of a punch. See gure 21.
4
Loosen the throttle cable (D) and lift out the throttle
control and the spring. See gure 22.
5
6.9 Dismantling the throttle control
lock, throttle control and spring
1
Loosen the screw on the rear handle. Remove the
handle insert (A). See gure 19.
Cleaning and inspection
• Carefully clean and check all parts. See gure
13. Parts must be replaced if cracked or show
signs of other defects. Always use original
spare parts.
• Check that the spring is intact and retains all its
tension.

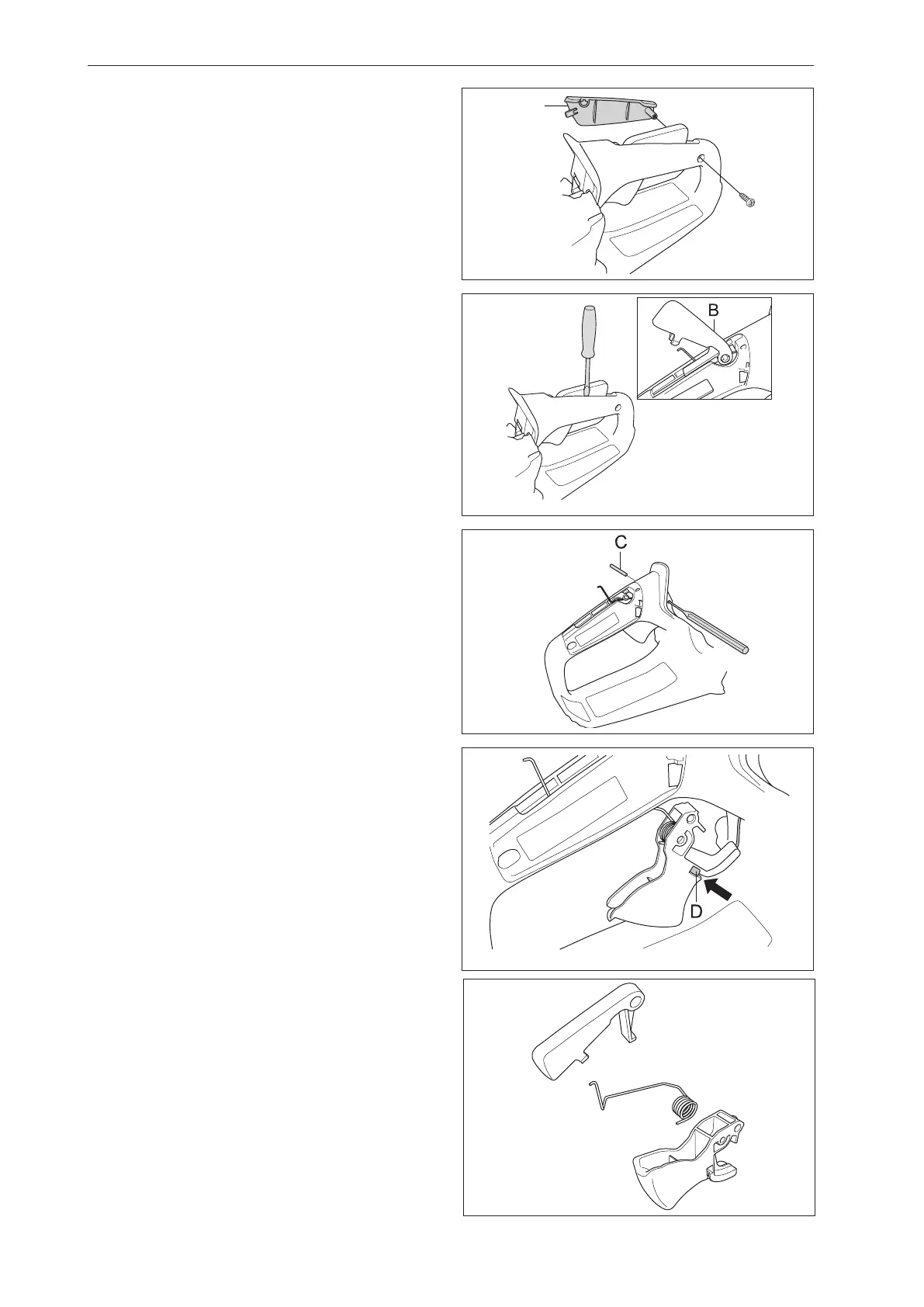

Fig 20
Fig 21
Fig 22
Fig 23
Fig 19
A
2
Loosen the throttle control lock (B) as shown in the
gure using a screwdriver or similar tool. Remove it
then from the shaft in the handle. See gure 20.
