English - 51
5
Fit the new heating element and make sure that no
cables are pinched. See Figure 19.
6
Connect the cable to the carburettor’s heating
element as outlined in Figure 18. Fit the lter
holder as outlined in Figure 17 and tighten screws
F. Attach the hoses as outlined in Figure 16.
7
Fit the new thermostat to the carburettor as
outlined in Figure 15 and connect the cabling.
Then t the:
• Cable bracket with cabling
• Power switch
• Cover
• Air lter
• Cylinder cover
• Tighten the screw for the earth cable.

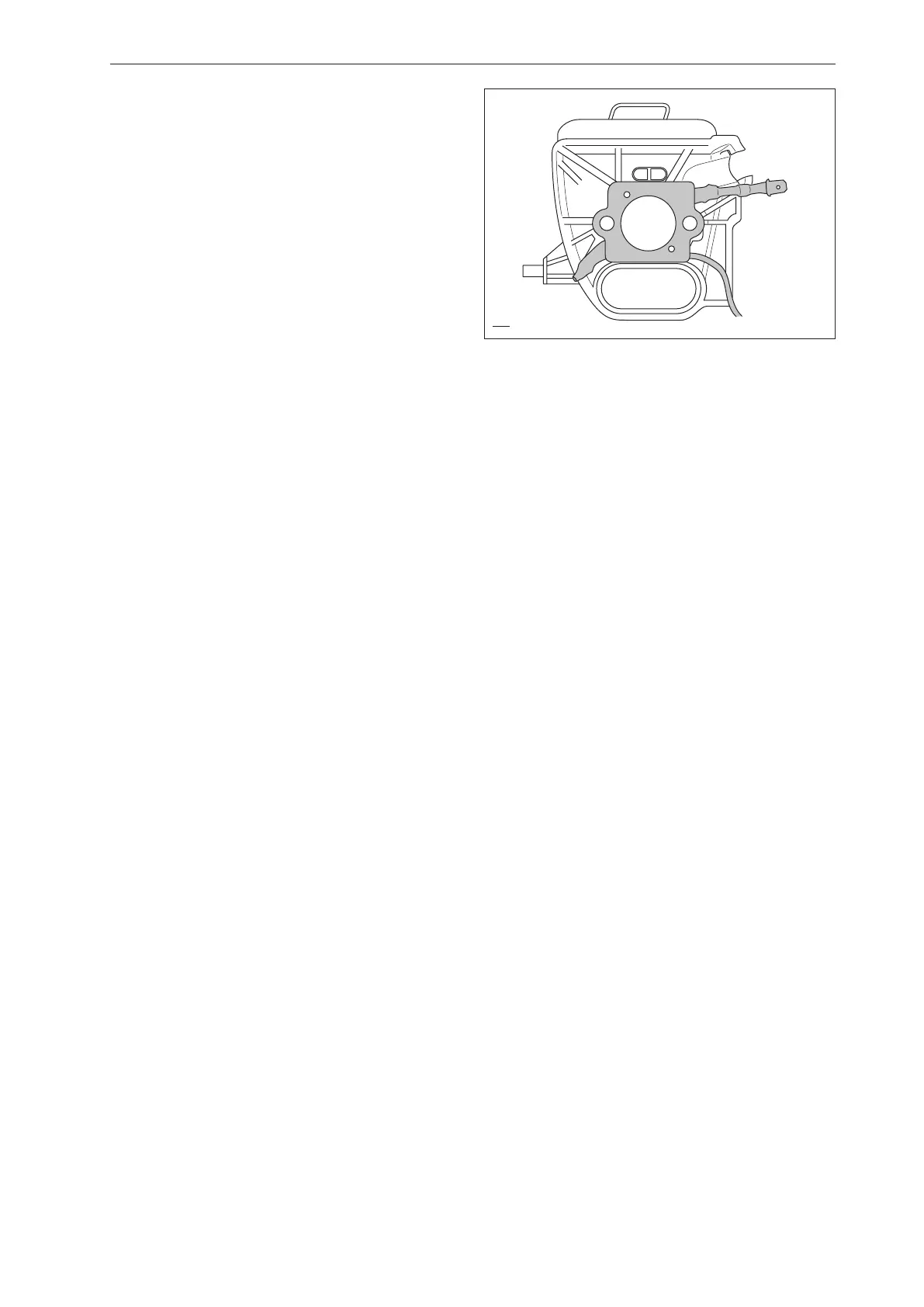

Fig 19
