English – 11

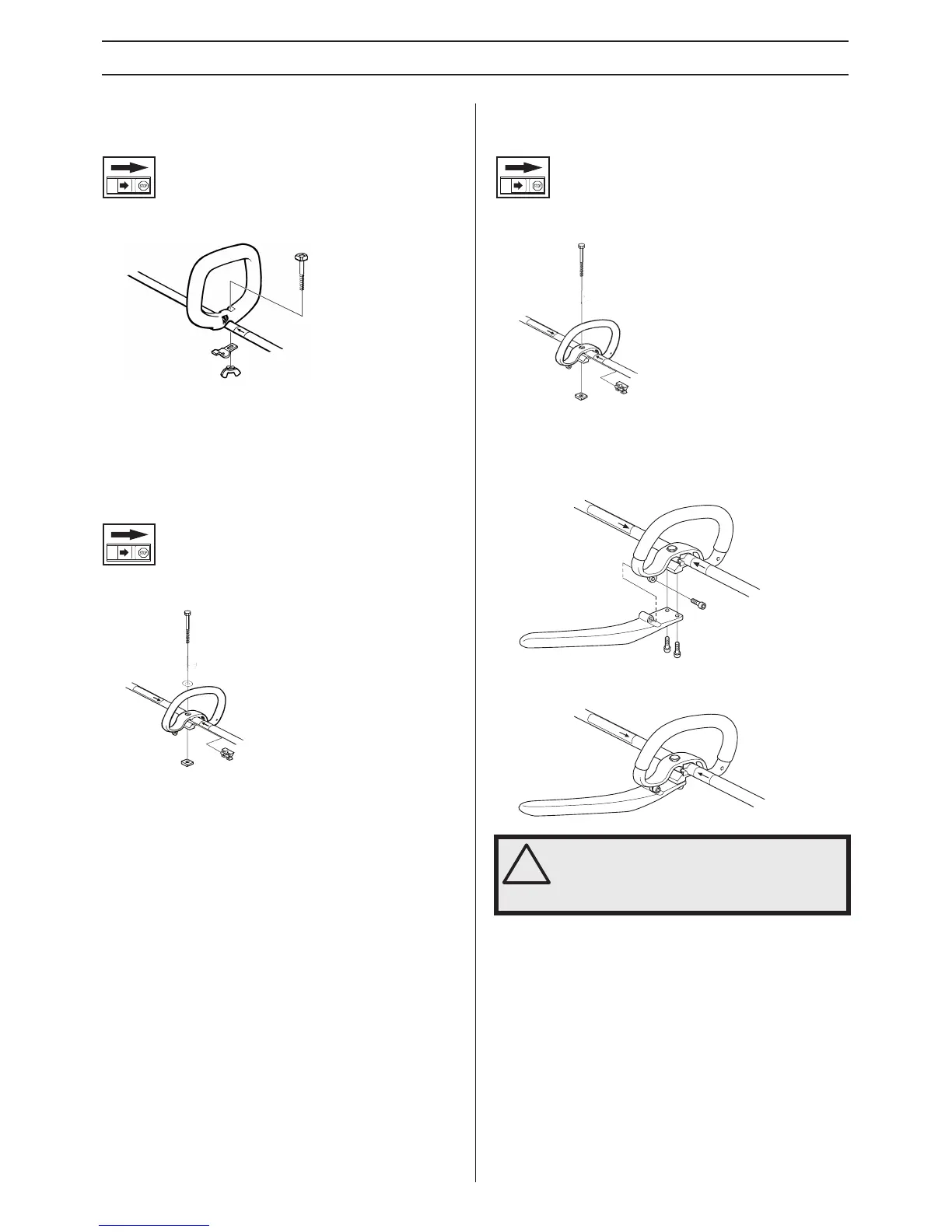

ASSEMBLY
Fitting the loop handle
(GT 2125)
• Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
• Fit the screw, securing plate and wing nut as shown in the
diagram.
• Tighten the wing nut.
Fitting the loop handle
(GC 2125, GC 2125C)
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, washer and screw.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Fitting the J-handle
(GC 2125, GC 2125C)
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, knob and screw. Do not overtighten.
• Attach the J-handle to the loop handle using the three
screws, as shown.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
!
WARNING! Only grass blades/grass cutters
or trimmer heads/plastic blades may be used
when the J-handle is fitted. Saw blades must
never be used with the J-handle.
