Jonsered GT2128 Spare Parts

Replaces
545192163 - 6/22/10
NOTE : Illustration may differ from actual model due to design changes.
545192163
7/27/11
Page:

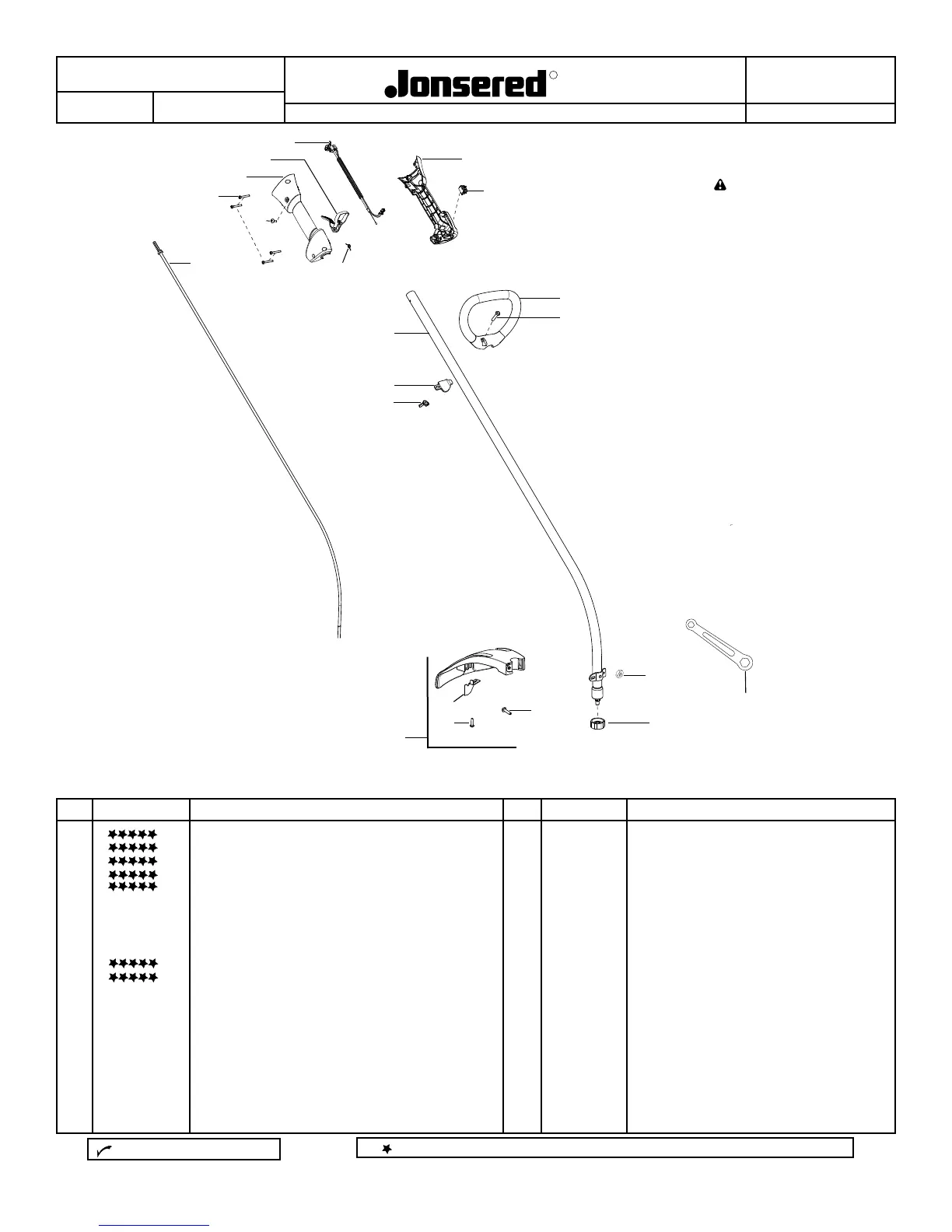

PARTS LIST
R
GT2128 (EU/AU)
1
Parts List No.
Date
MODEL
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
1. Assy-Cable/Wire Harness
2. Trigger
3. Housing-Throttle (RH)
4. Screw
5. Screw
6. 545007508 Flexshaft
7. 530016454 Spring-Trigger
8. 575755601 Kit-Driveshaft
9. 530059185 Clamp-Handle
10. 530016152 Wingnut
11. Housing-Throttle (LH)
12. Kit-Switch
13. 545074201 Handle-Assist
14. 530015820 Bolt
15. 545006096 Kit-Shield (Incl. 16,17,18,19, 22)
16. 545081862 Kit - Limiter-Line
17. 530015814 Screw
18. 530015820 Bolt
19. 530015197 Nut
20. 545017403 Dust Cup
22. 530056401 Wrench
Ref. Part No. Description
Ref. Part No. Description
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
20
19
14
8
6
7
9
10
13
18
17
16
15
22
4
1
3
2
5
11
12
