545192163
7/27/11
Replaces
545192163 - 6/22/10
Page:
PARTS LIST
R
GT 2128 (EU/AU)
2
Parts List No.
Date
MODEL

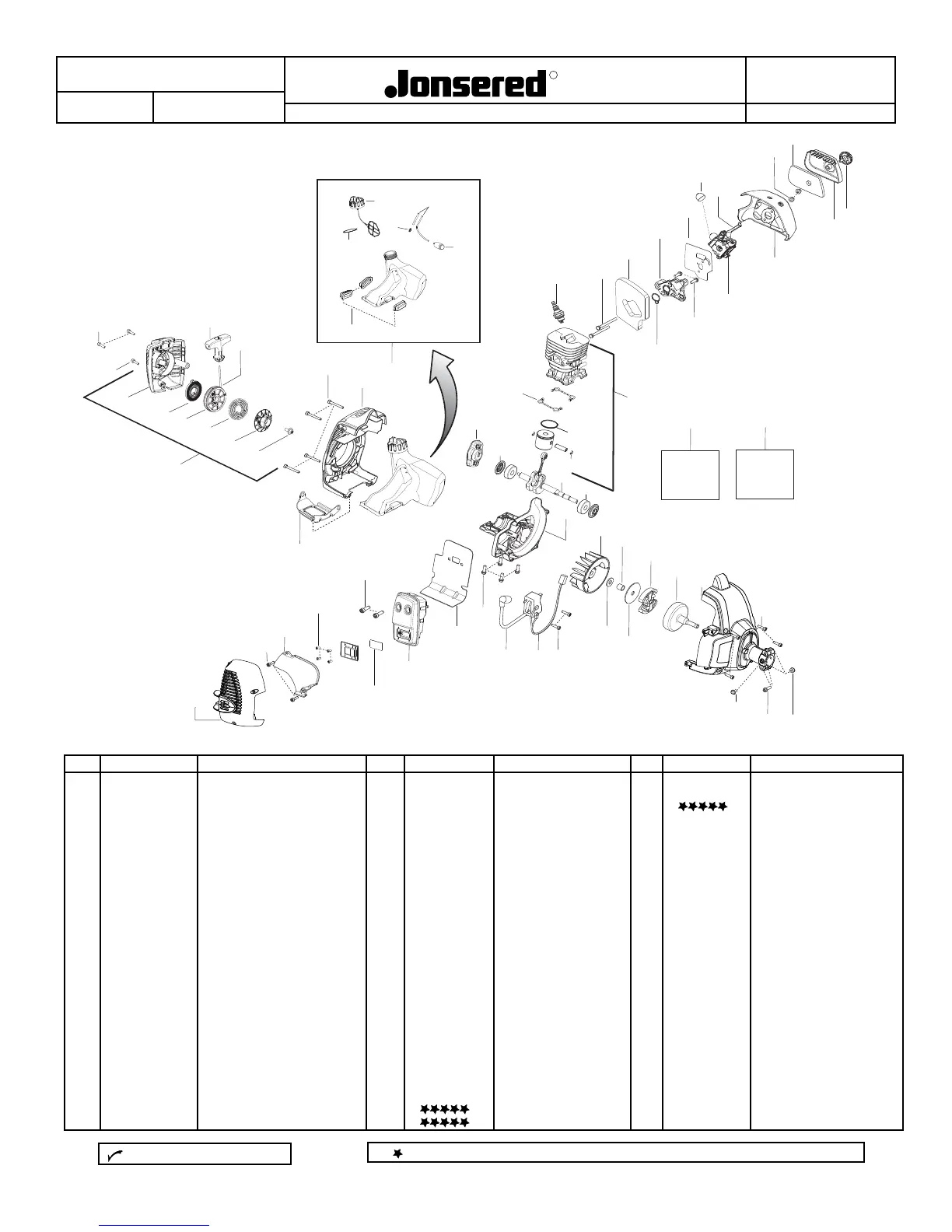

NOTE : Illustration may differ from actual model due to design changes.
Ref. Part No. Description
Ref. Part No. Description
Ref. Part No. Description
1. 530150253 Filter
2. 530016101 Nut-Carb. Screw
3. 530057844 Lever - Choke
4. 530058709 Bulb-Purge
5. 545008086 Kit-Carb. Gasket (Incl 7,63)
6. 530035596 Adaptor-Carb.
7. 545008084 Foam-Gasket (kit)
8. 530016400 Bolt
9. 952030201 Plug-Spark (RCJ-8Y)
10. 545008084 Seal-Cylinder (kit)
11. 545008084 Seal-Crankshaft (kit)
12. 503873305 Assy-Starter Pawl
13. 530095646 Assy-Fuel Filter
14. 530069599 Kit-Fuel Line (Incl. 15)
15. 530023877 Fitting-Fuel Line
16. 545073101 Assy-Cap w/ret.(Incl. 17)
17. 545008084 O-ring - Fuel Cap (kit)
18. 530059780 Isolator-Fuel Tank
19. 545180871 Kit-Fuel Tank Assy.
(Incl. 13,14,15,16,17,18)
20. 545065201 Shroud-Rear
21. 530016448 Screw
22. 545008079 Kit-Rope
23. 545043205 Handle-Starter
24. 530016426 Screw
25. 530016449 Screw
26. 545219503 Starter Hsg. w/eyelet
50. 530015768 Locknut
51. 530016456 Screw
52. Assy-Fan Housing
53. 530150039 Assy-Clutch Drum
54. 545064401 Assy-Clutch
55. 530057852 Spacer
56. 530039242 Flywheel
57. 545195601 Crankcase
58. 545013401 Bearing
59. 545195202 Assy-Crankshaft
60. 530015162 Retainer-Piston Pin
61. 530019283 Ring-Piston
62. 545008082 Kit-Piston/Cylinder
(Incl. 60,61)
63. 545008084 Seal-adaptor (kit)
64. 530015897 Screw
65. 545081848 Kit-Carb. (Incl. 3,4,5)
66. 576459201 Air Box
67. 545071901 Cover-Air Box
68.
545072201 Assy-Knob
69. 545008084 Kit-Gasket
(Incl. 5,7,10,11,17,41,63)
70. 545180857 Kit - Decal
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
27. 545008087 Kit-Spring
28. 545008078 Kit-Starter Pulley
29. 544038802 Spring - Driver
30. 544038702 Pulley-Driver
31. 530016468 Screw
32. 545219501 Assy-Starter Hsg.(Incl.
22,23,26,27,28,29,30,31)
33. 545071601 Plate-Wear
34. 530058982 Bolt-Muffler
35. 530015241 Screw
36. 530150440 Shield-Heat
37. 530016449 Screw
38. 576215101 Kit - Muffler Guard
(Incl. Screws)
39. 545030501 Kit-Spark Arrestor
(Incl. 35)
40. 574031502 Kit-Muffler
(Incl. 34,35,39,41)
41. 545008084 Gasket-Paper Met.(kit)
42. 530015897 Screw
43. 530039224 Module-Ignition
44. 530039227 Assy-Leadwire
45. 530016456 Screw
46. 530016463 Washer
47. 530094189 Washer-Clutch
48. Screw
49. Screw
1
2
16
14
13
15
12
11
59
58
10
62
61
63
64
65
67
66
68
60
9
8
7
6
5
19
17
20
21
23
22
24
25
27
28
26
31
30
18
34
35
39
40
41
43
46
47
48
49
51
52
53
69
Gasket
Kit
54
55
56
57
50
44
45
42
36
37
38
32
70
Decal
Kit
4
3
33
29
