Replaces
545192163 - 6/22/10
NOTE : Illustration may differ from actual model due to design changes.
545192163
7/27/11
Page:

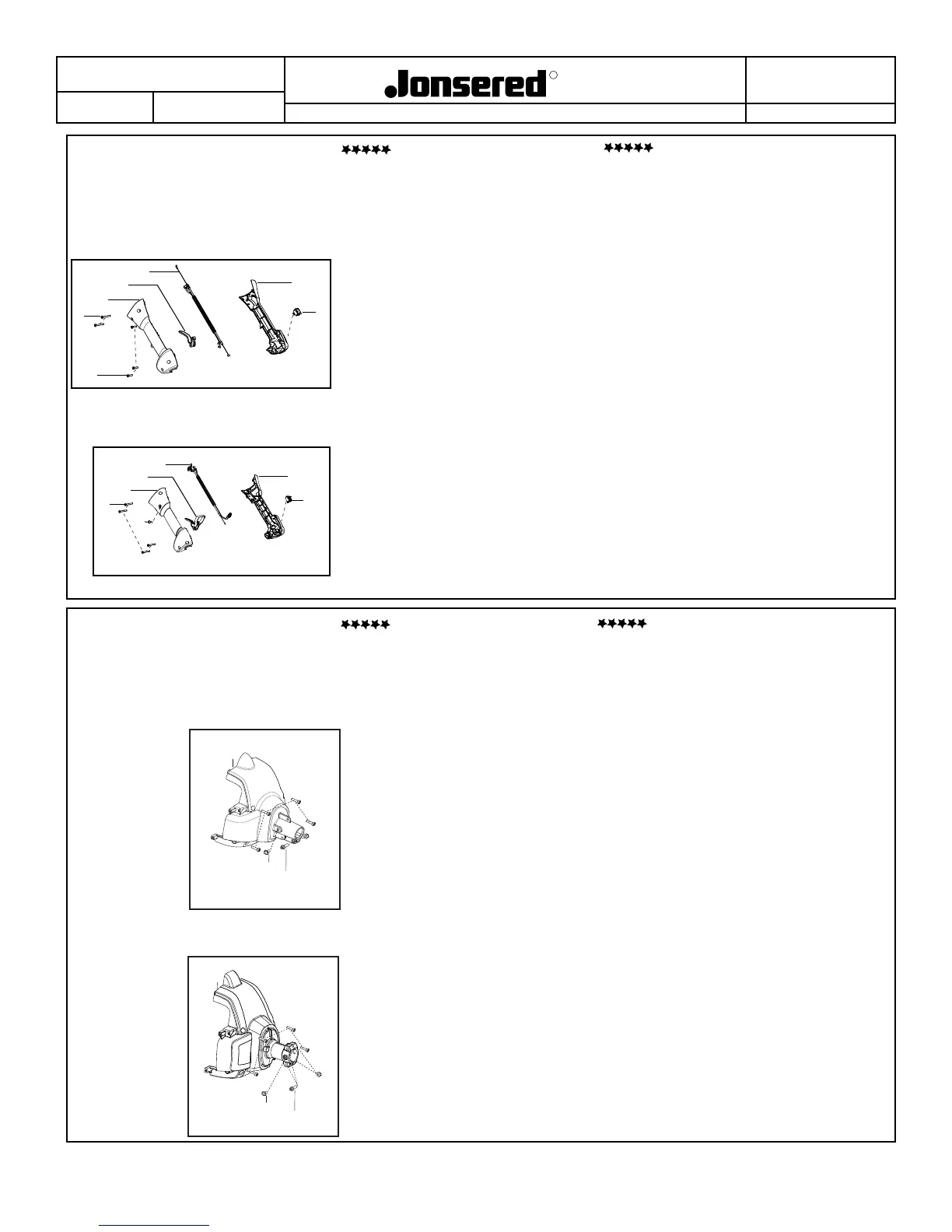

PARTS LIST
R
GT2128 (EU/AU)
3
Parts List No.
Date
MODEL
Service Reference
Note : Due to product improvements, your unit may have a different throttle housing assembly.
Please refer to the serial number on your unit and order the parts below.
Serial Number - 2010-72N and lower, please use the following parts:
Ref.# 1 - 545125301 - Assy-Cable/Wire Harness
Ref.# 2 - 545072001 - Trigger
Ref.# 3 - 545062003 - Housing-throttle (RH)
Ref.# 4 - 530016448 - Screw
Ref.# 5 - 530016449 - Screw
Ref.#11- 545071801 - Housing-throttle (LH)
Ref.#12- 545030601 - Kit - Switch
Serial Number - 2010-73N and higher, please use the following parts:
Ref.# 1 - 576139401 - Assy. - Cable/Wire Harness
Ref.# 2 - 574355302 - Trigger
Ref.# 3 - 545223601 - Housing-throttle (RH)
Ref.# 4 - 530016449 - Screw
Ref.# 5 - 530015805 - Screw
Ref.#11- 545223701 - Housing-throttle (LH)
Ref.#12- 545049309 - Switch
4
1
3
2
5
11
12
Service Reference
Note : Due to product improvements, your unit may have a different fan housing assembly.
Please refer to the serial number on your unit and order the parts below.
Serial Number - 2010-72N and lower, please use the following parts:
Ref.# 48 - 530016469 - Screw
Ref.# 49 - 530016470 - Screw
Ref.# 52 - 545072901 - Assy. - Fan Housing
Serial Number - 2010-73N and higher, please use the following parts:
Ref.# 48 - 530015805 - Screw
Ref.# 49 - 530015774 - Screw
Ref.# 52 - 545225401 - Assy. - Fan Housing
48
49
52
48
49
52
