PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
PARTS LIST
Note:
Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530084491
GT26L
DATE
7/24/02
1
REPLACES
530084491--12/05/01
27
28
29
31
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must
be performed by qualified
service personnel.
WARNING
64
5

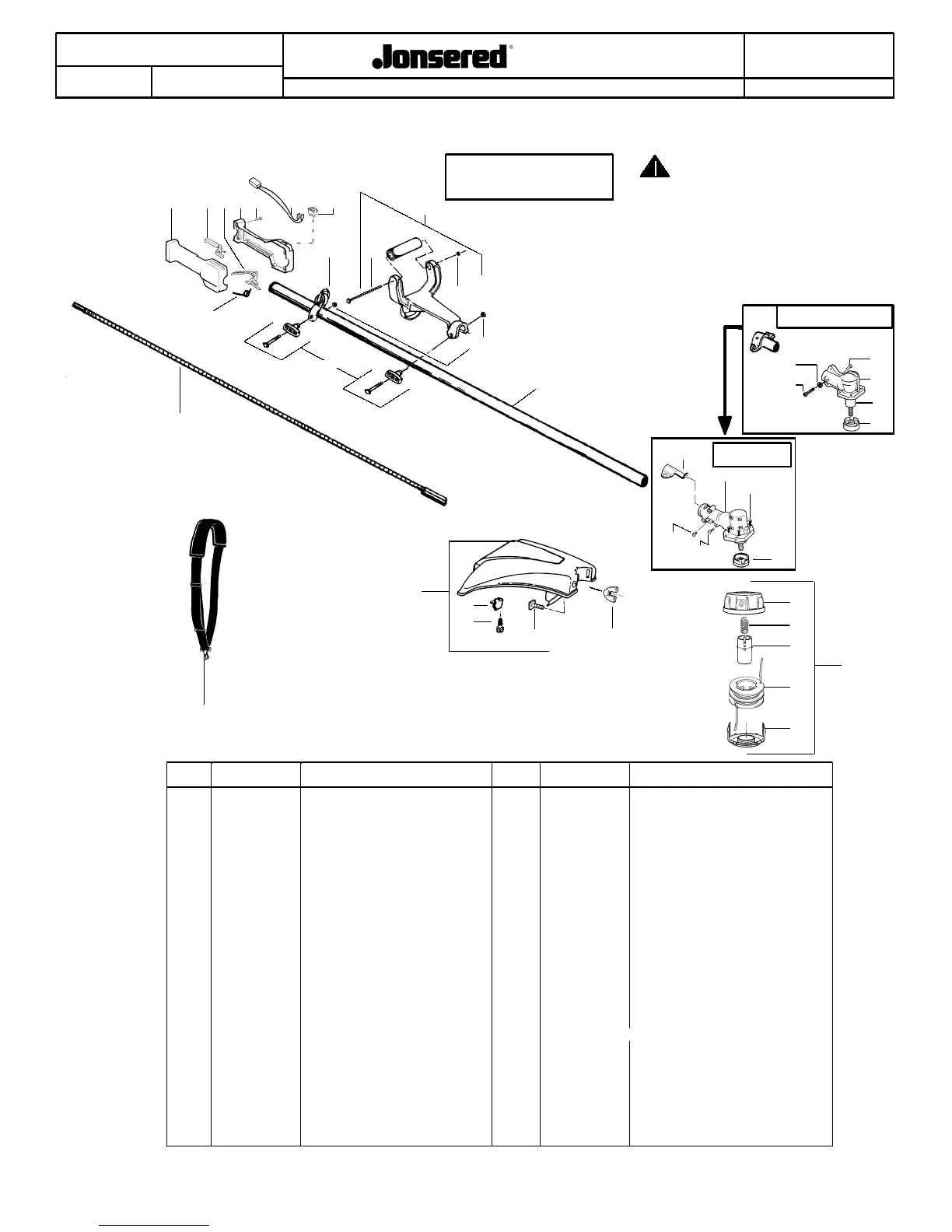

1. 530402025 Hsg.--Throttle (Right)
2. 530402028 Lock--Throttle
3. 530402027 Lever--Throttle
4. 530402026 Hsg.--Throttle (Left)
5. 530015886 Screw
6. 530047307 Assy--Lead Wire
7. 530069572 Kit--Switch
8. 530010958 Assy--Antivibe Handle
9. 530094686 Assy--Clamp Harness
10. 530015784 Screw
11. 530015785 Locknut
12. 530042093 Spring -- Lever Return
13. Shaft--Flex
14. 530069252 Kit--“T” Handle
15. 530015197 Nut
16. Kit--Drive Shaft Hsg.
17. 530015328 Washer--lock
18. 530015650 Screw--Pinch Clamp
19. 530016140 Screw
20. Kit--Gear Box Assy.
21. 530019235 Seal Sleeve
22. Cup--Dust
23. 530095812 Bracket--Shield
24. 530016312 Screw
25. 530016371 Screw
26. 530016309 Screw
27. 530069779 Kit--Shield Ass’y.
(Incl. 28--31)
28. 530095387 Line Limiter
29. 530015805 Screw
30. 530015820 Bolt
31. 530016152 Wingnut
32. 530047294 Assy--Hub
33. 530094830 Spring--Compression
34. 530094827 Button--Release
35. 530095255 Spool w/Line
36. 530094828 Cover
37. 530047298 Assy--Cutting Head
(Incl. 32--36)
38. 530092085 Shoulder Strap
-- Operator’s Manual
530088845 European
530088846 Scandinavia
530055349 Shaft Warning Decal
530031159 Hex Wrench (5/32)
30
Ref. Part No. Description Ref. Part No. Description
=
NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
2
1
12
13
24
22
23
20
25
26
New Style
Previous Style
17
20
22
18
1
9
14
15
8
32
33
34
35
36
37
3 7
11
10
38
21
Not Shown
KKKKK
KKKKK
KKKKK
16
n
n
n
n
KKKKK
n
n
n
n
n
n
n
9
n
TYPE 1,2
To Next Page
